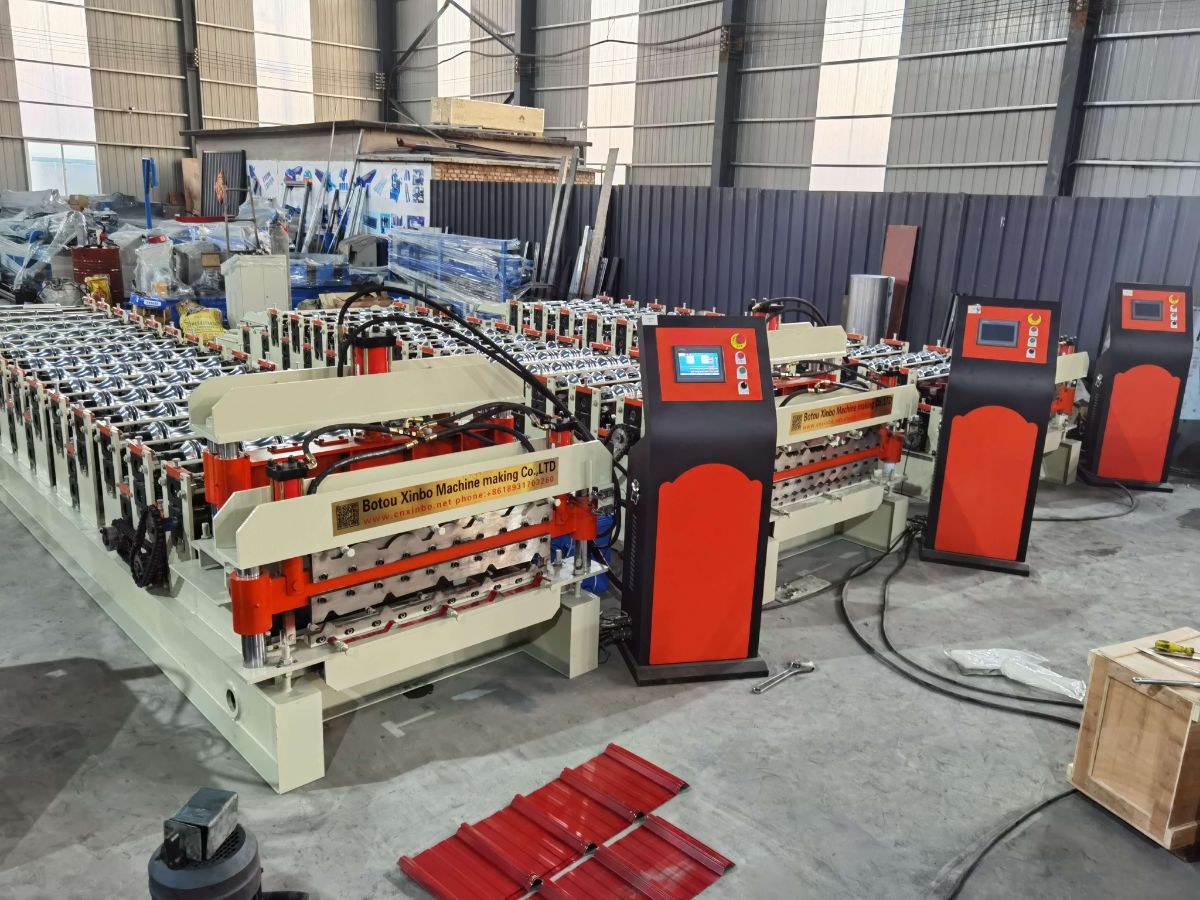

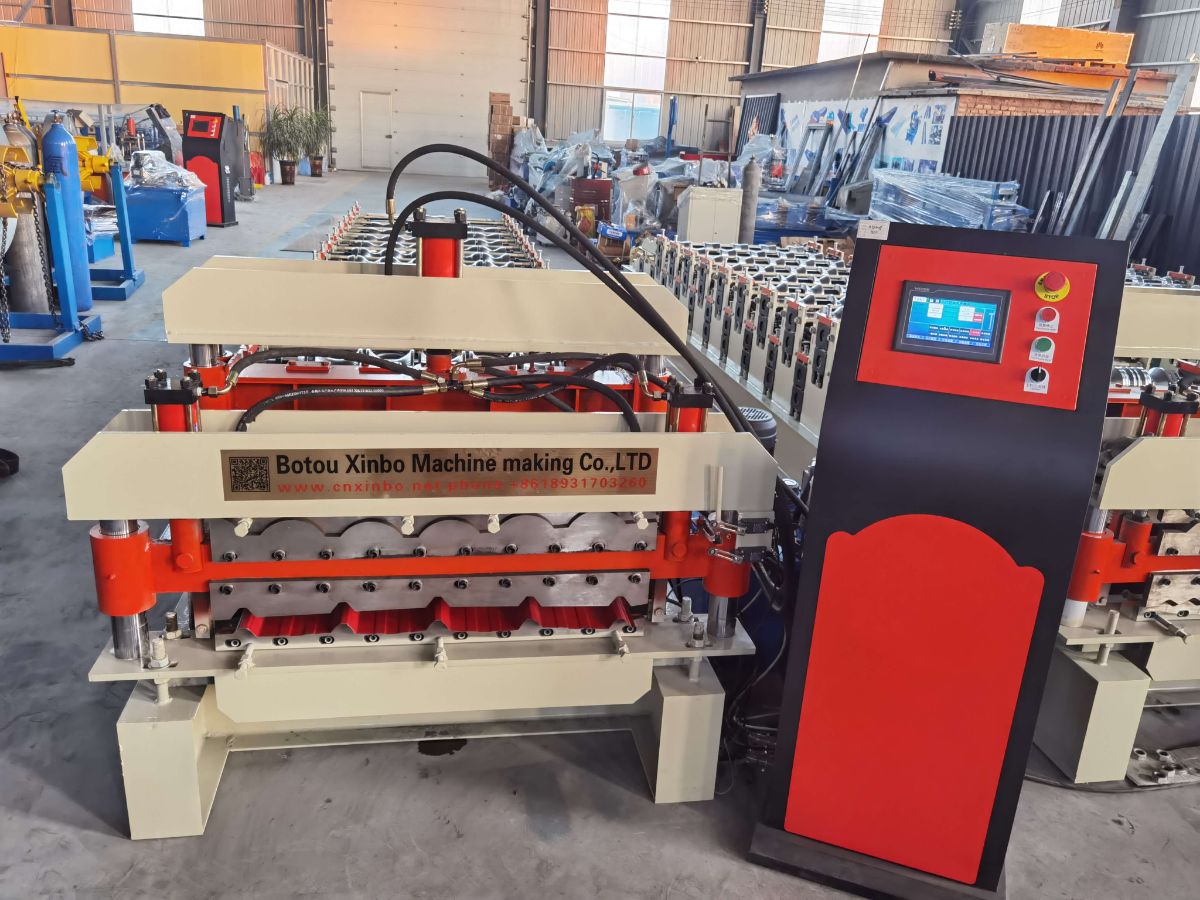

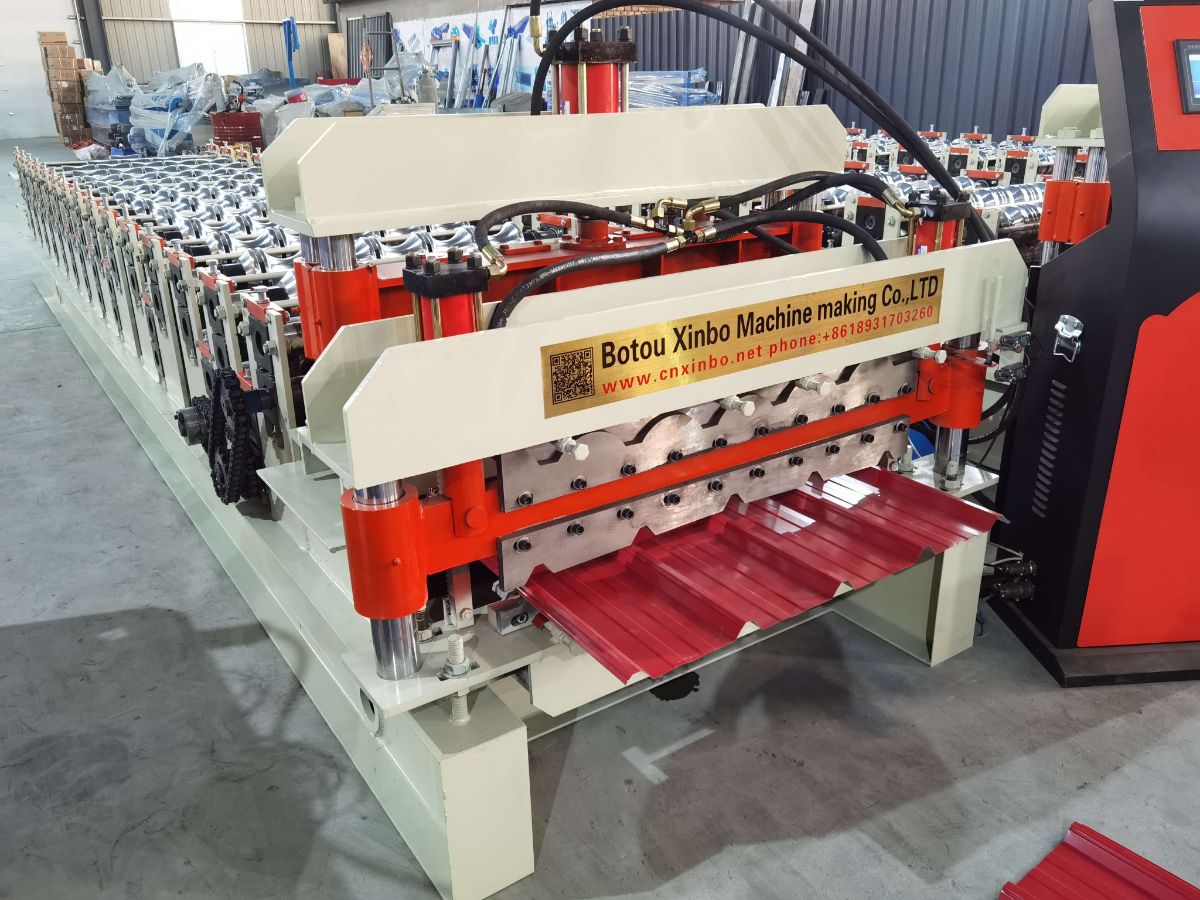

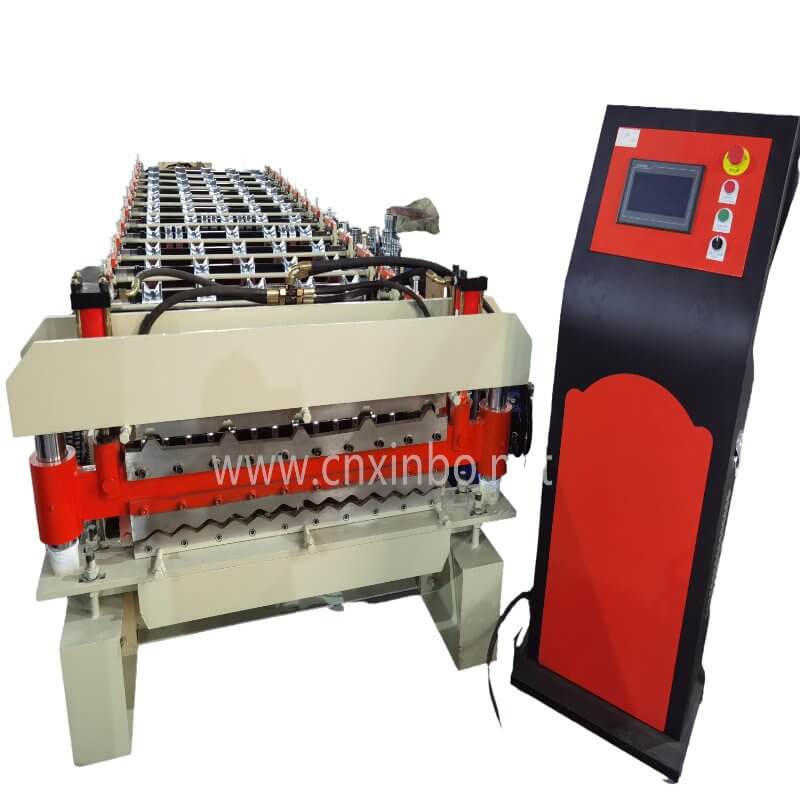

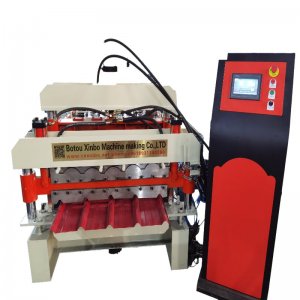

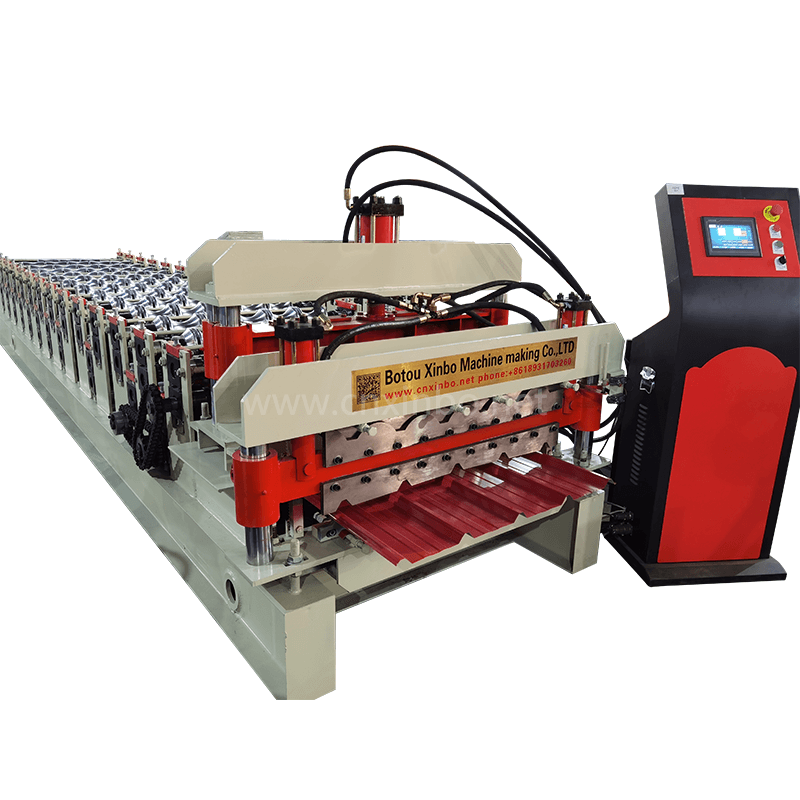

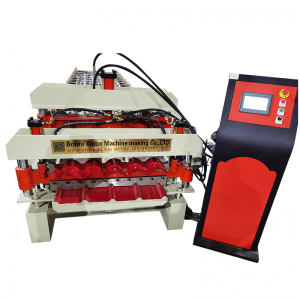

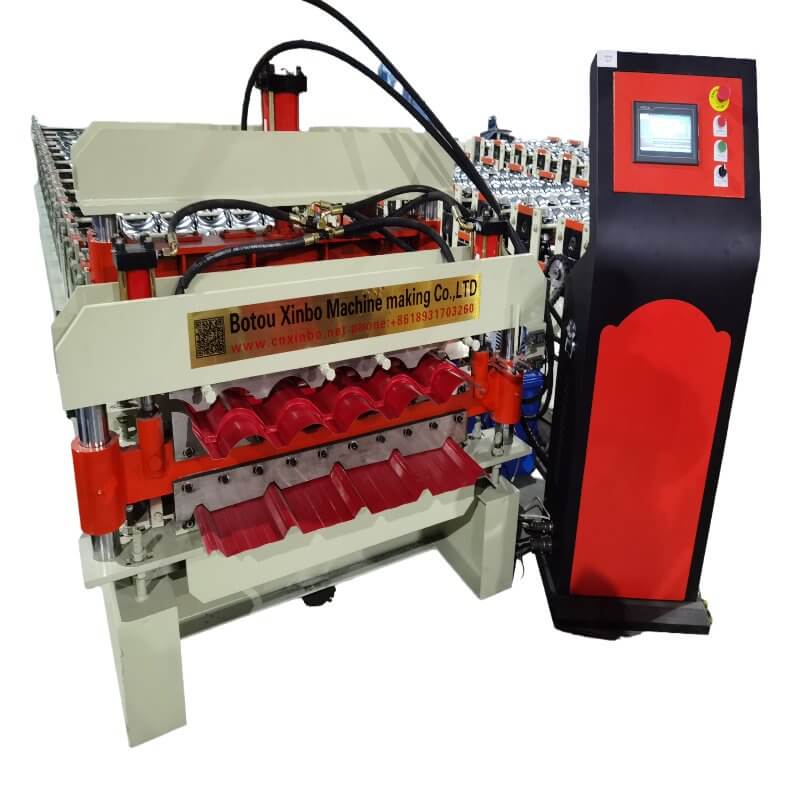

Double layer roof panel machine

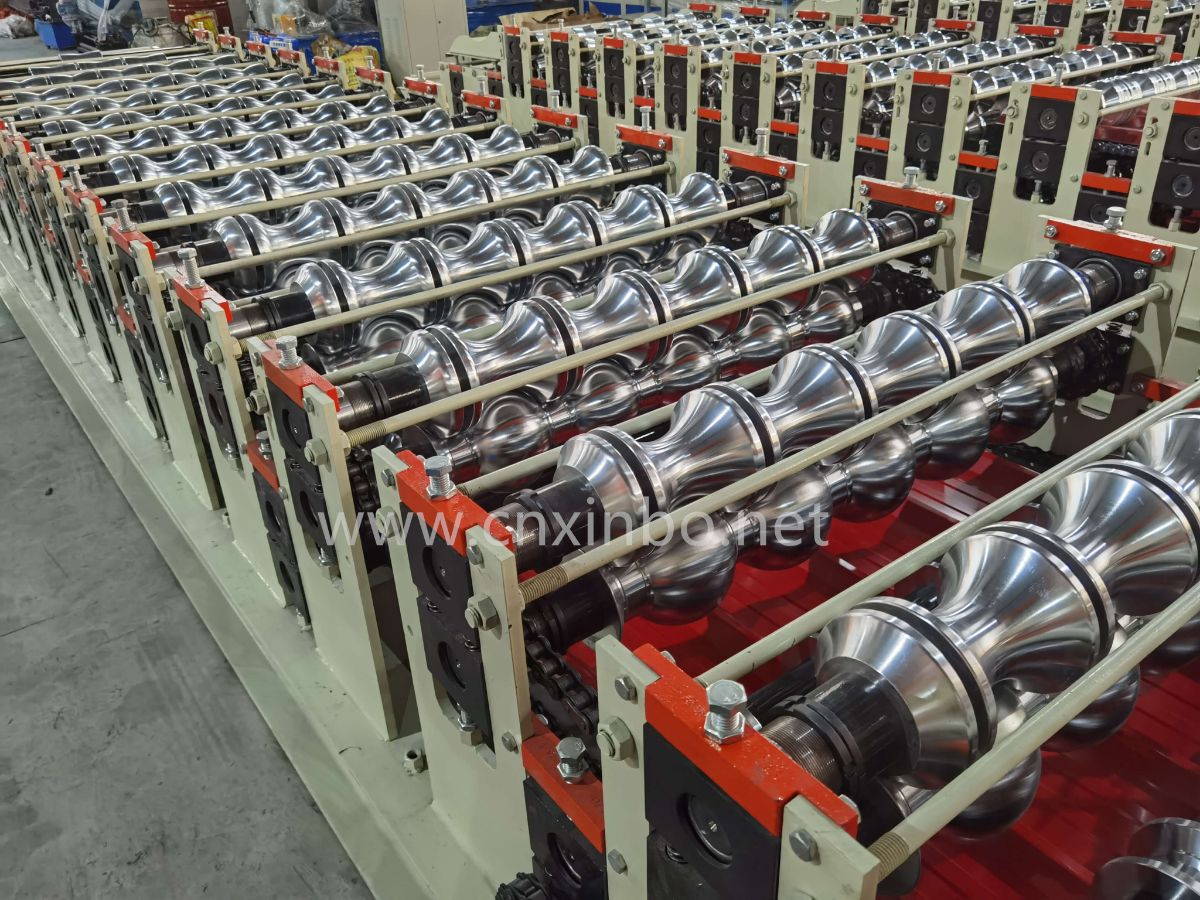

The double layer roll forming machine consists of several key components, including a decoiler, a feeding system, a roll forming system, a cutting system, and a control system. The decoiler is responsible for holding and releasing the raw material, while the feeding system feeds the material into the roll forming system. The roll forming system then shapes the material into the desired profiles using a series of rollers. The cutting system cuts the profiles to the desired length, and the control system ensures the machine operates smoothly and accurately.
|
No. |
Item |
Specification |
|
1. |
Processing Material |
PPGI,GI,Aluminium |
|
2. |
Input Width(mm) |
1200 |
|
3. |
Formed Width(mm) |
1000 |
|
4. |
Processing Thickness(mm) |
0.28–0.8 |
|
5. |
Material of Rollers |
45# steel,with heat treatment |
|
6. |
Diameter of Shaft |
Ф70mm |
|
7. |
Production Speed |
12—15m/min |
|
8. |
Roller Driven |
Decelerating Motor+Chain Transmission |
|
9. |
Cutting Model |
Hydraulic Profile Cutting |
|
10. |
Length Measurement |
Encoder |
|
11. |
Control Style |
PLC |
|
12. |
Operation Model |
Button + Touch Screen |
|
13. |
Total Power |
3+3KW |
|
14. |
Voltage |
380V 50HZ or at buyer’s request |
|
15. |
Number of roller stations |
14 rows or as designing |
