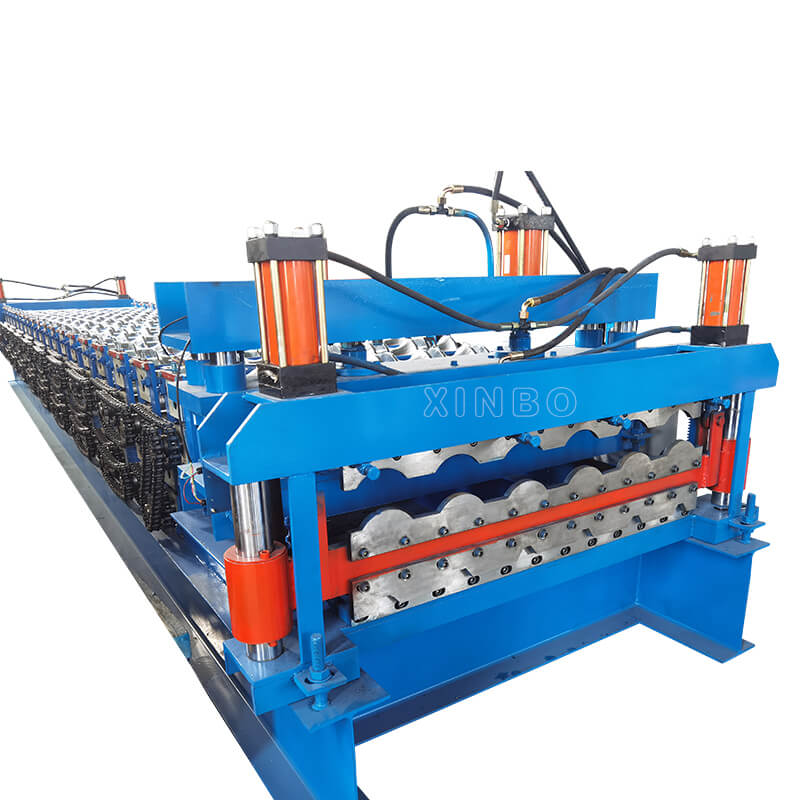

Full automatic high-quality glazed double-layer tile press Roof roll forming machine
According to your requirements,we customize different voltage double layer roll forming machine for you.wall and roof panel roll forming machine.
Fully automatic tile pressing machine, which can be produced according to needs and operated by one person, is durable and efficient, and can meet your production needs
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationship and mutual success!
|
No. |
Item |
Specification |
|
1. |
Processing Material |
PPGI,GI,Aluminium |
|
2. |
Input Width(mm) |
1200 |
|
3. |
Formed Width(mm) |
1000 |
|
4. |
Processing Thickness(mm) |
0.28–0.8 |
|
5. |
Material of Rollers |
45# steel,with heat treatment |
|
6. |
Diameter of Shaft |
Ф70mm |
|
7. |
Production Speed |
12—15m/min |
|
8. |
Roller Driven |
Decelerating Motor+Chain Transmission |
|
9. |
Cutting Model |
Hydraulic Profile Cutting |
|
10. |
Length Measurement |
Encoder |
|
11. |
Control Style |
PLC |
|
12. |
Operation Model |
Button + Touch Screen |
|
13. |
Total Power |
3+3KW |
|
14. |
Voltage |
380V 50HZ or at buyer’s request |
|
15. |
Number of roller stations |
14 rows or as designing |
