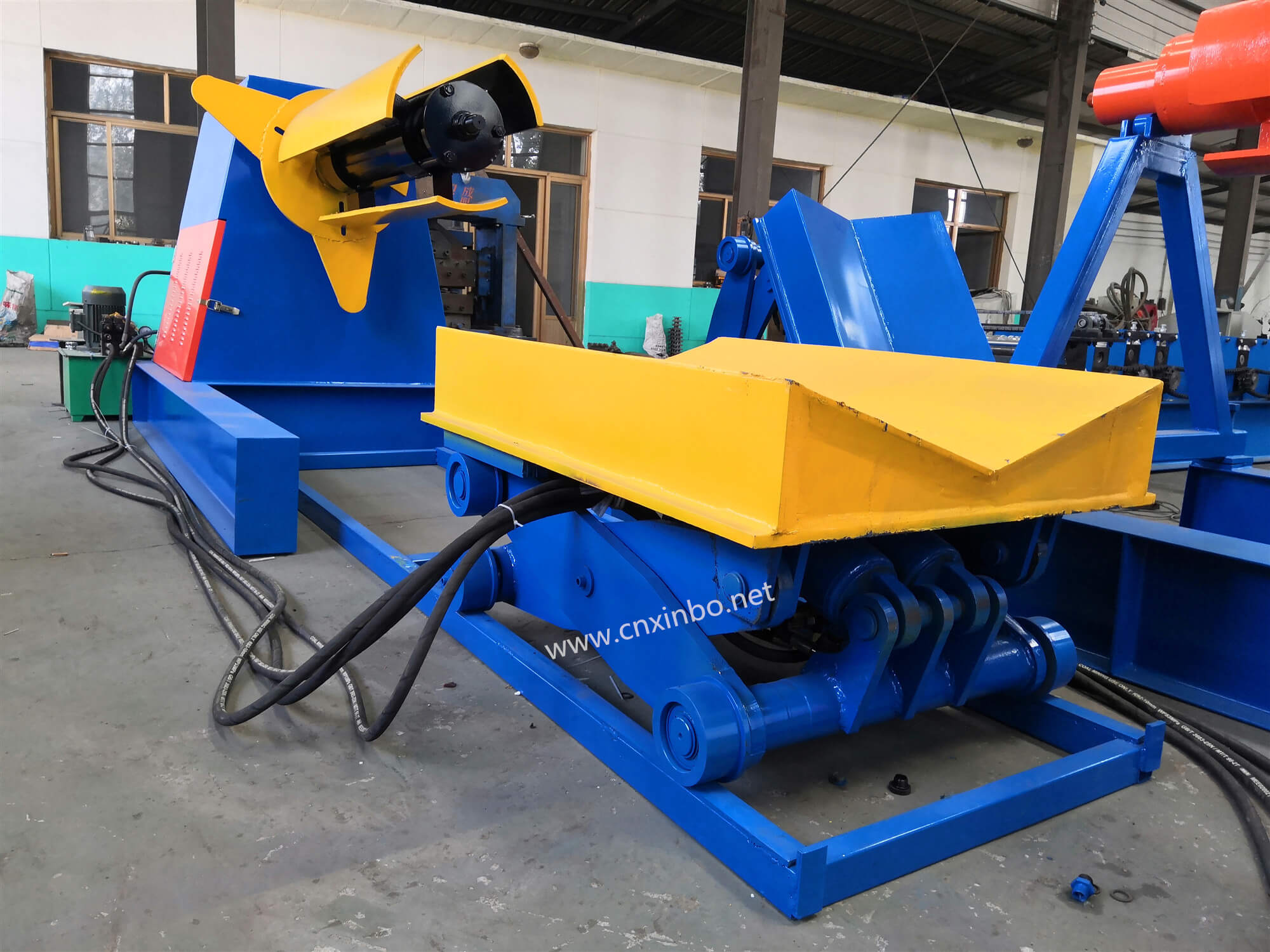

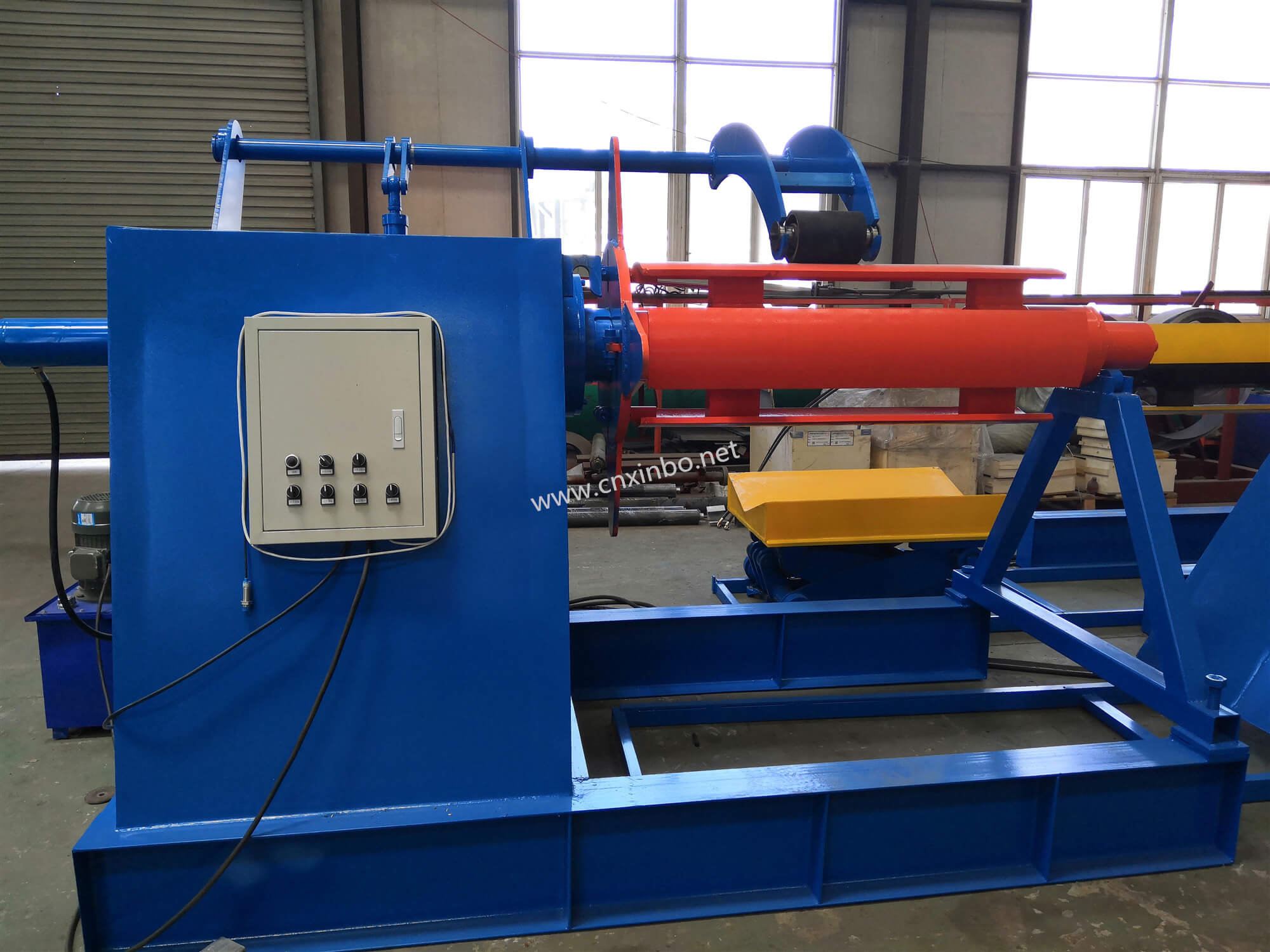

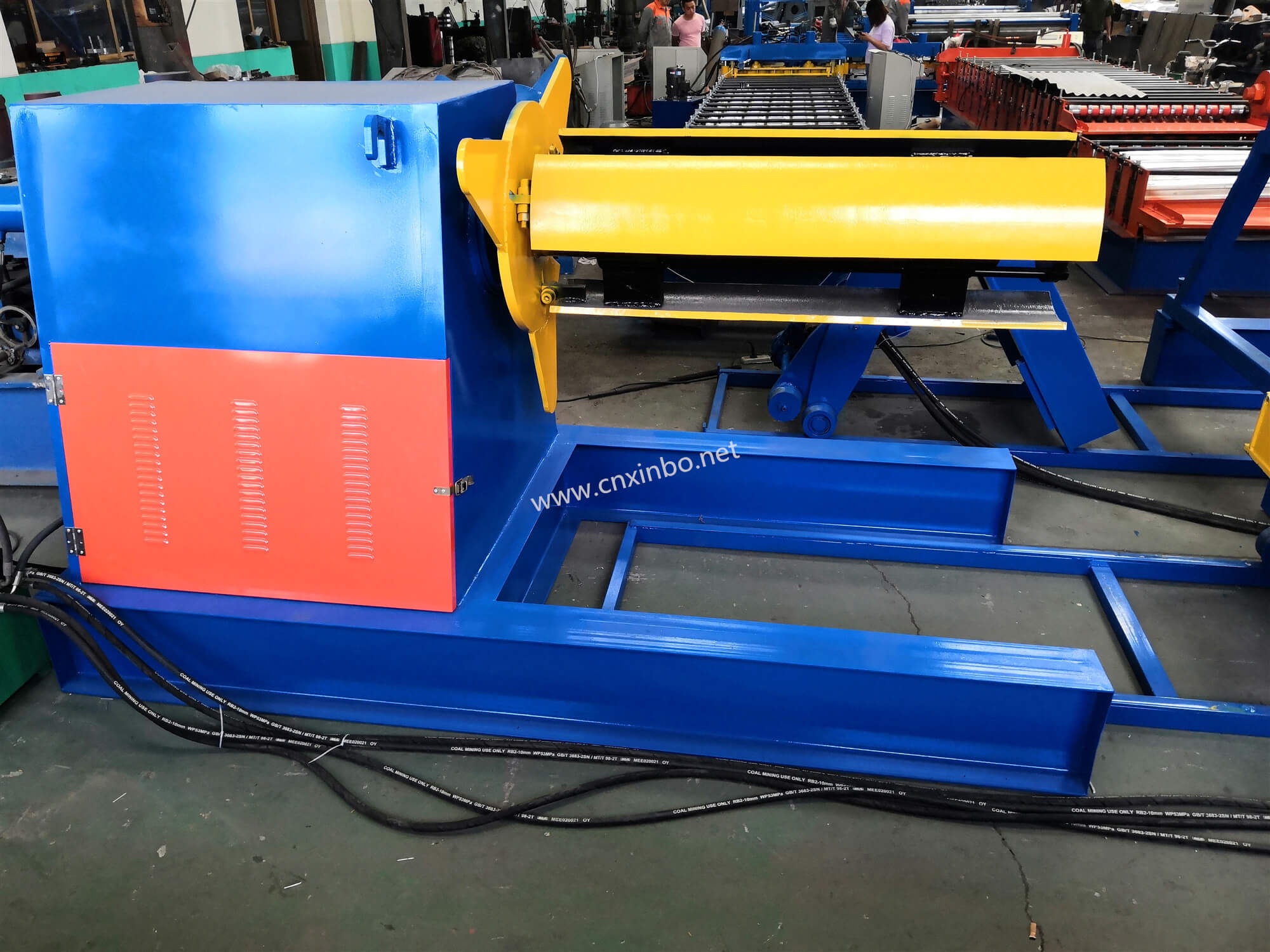

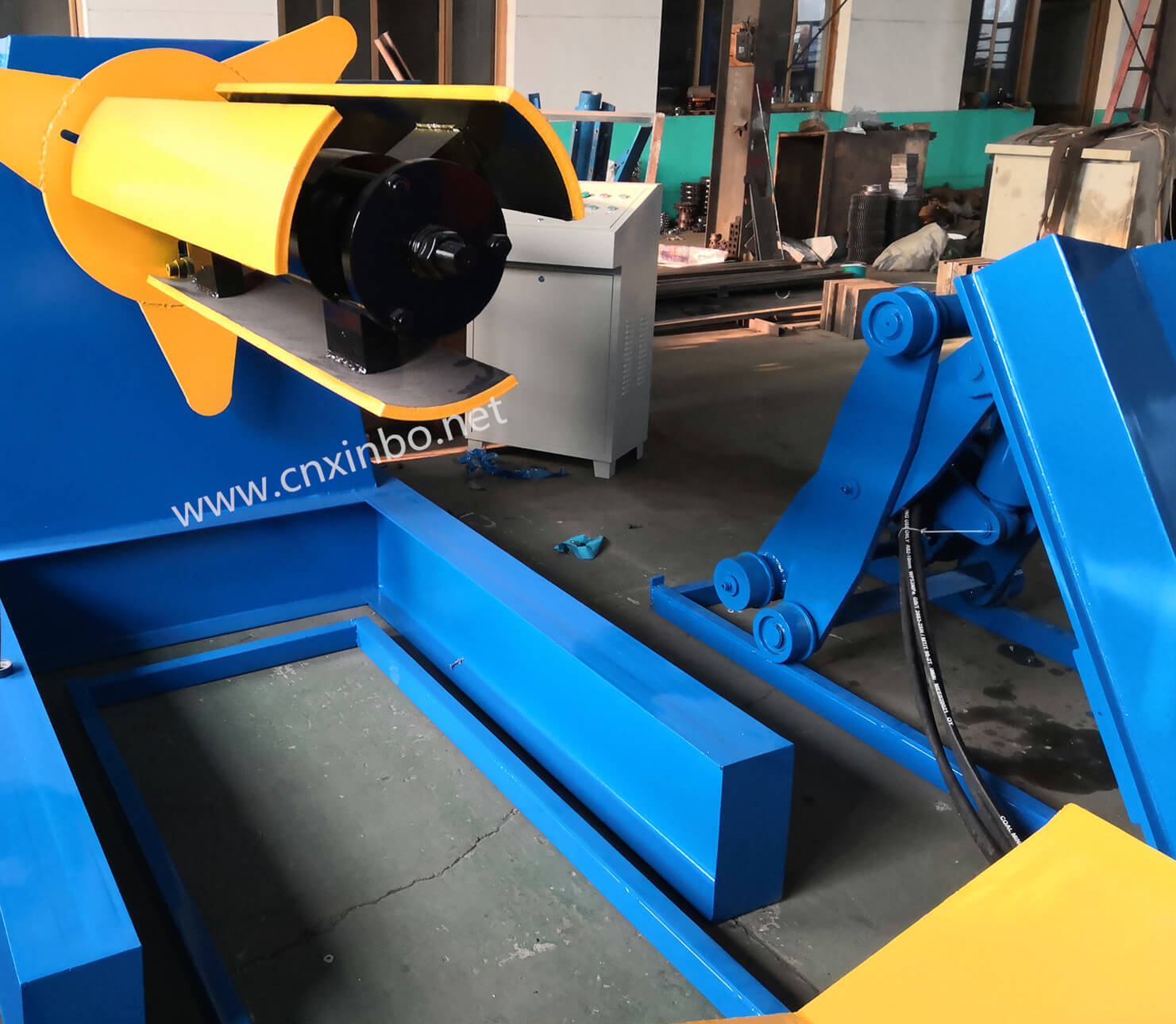

Fully automatic hydraulic decoiler 5 tons, 7 tons, 10 tons optional
5 tons, 7 tons, 10 tons automatic hydraulic decoiler can be equipped with more than two roll forming machines. The decoiler can move along the track, and the track of 7 meters, 10 meters or longer can be designed according to the needs. In this way, more roll formers can use the same decoiler. On the one hand, since these roll forming machines cannot work at the same time, it can save space and cost.
|
Type
|
Decoiler
|
|
Production Capacity
|
10-15m/min
|
|
Place of Origin
|
China Hebei
|
|
Brand Name
|
XINBO
|
|
Voltage
|
380V 50Hz 3phases or as your requirement
|
|
Dimension(L*W*H)
|
about 1800mm*1200mm*1500mm
|
|
Weight
|
1200kg
|
|
Warranty
|
2 years
|
|
Key Selling Points
|
High Productivity
|
|
Rolling thinckness
|
0.3-0.8mm
|
|
Feeding width
|
1220mm
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2022
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Pressure vessel, Motor, Bearing, Pump, Gearbox, Engine, PLC
|
|
Function
|
to expand and uncoil the material coil
|
|
.Bearing tonnage
|
5T,10T,15T
|
|
Control style
|
automatically working controlled by computer
|
|
Hydraulic power
|
3kw
|
|
Certification
|
CE ISO
|
|
Building Construction
|
Video technical support, Online support, Spare parts,
|
|
Product name
|
Uncoiler Decoiler Machine
|
|
Operation Model
|
Button + Touch Screen
|
