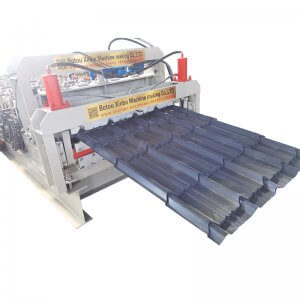

Glazed Tile Roll Forming Machine

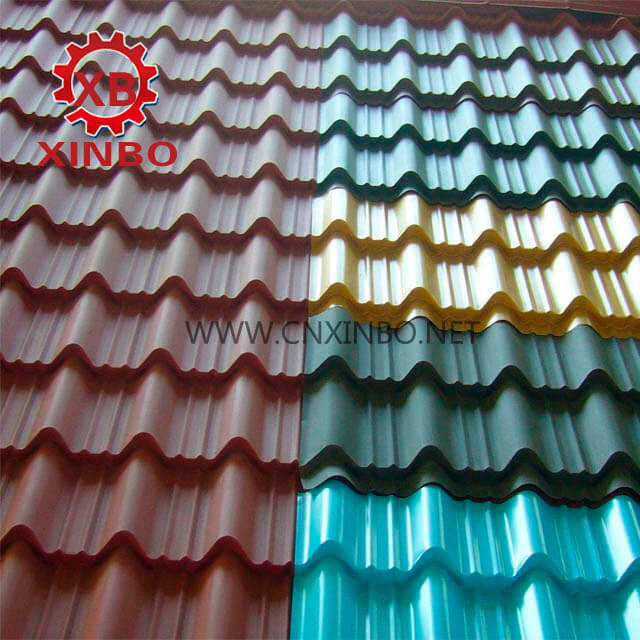

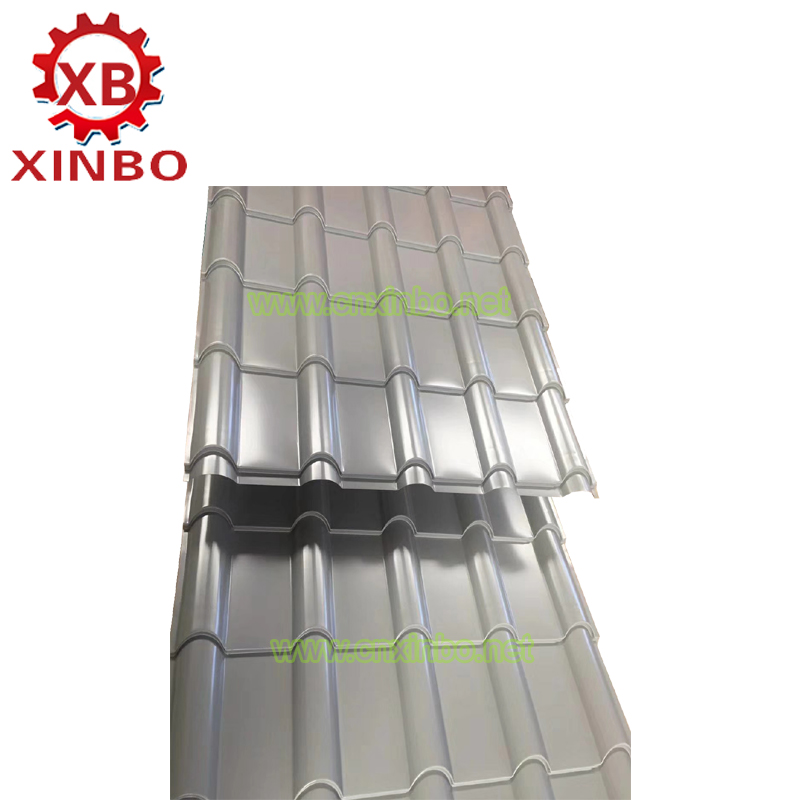

The Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacation lands, ancient architectures and modern villas.

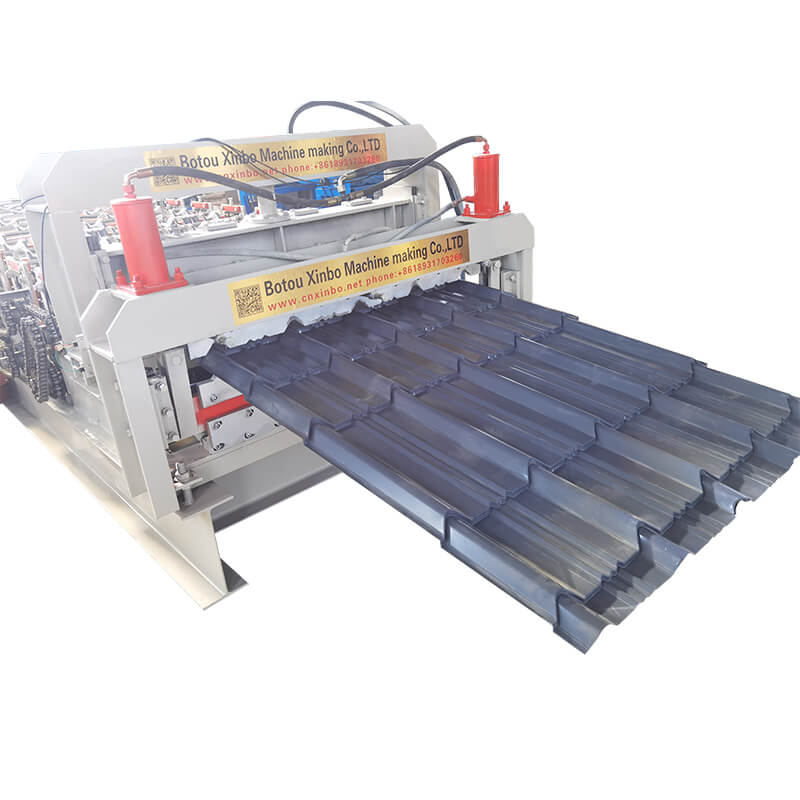

Glazed tile roll forming machine

 Name   Glazed tile roll forming machine
 Suitable Material Colored or galvanized steel coil, HRB60 or equivalent
 Thickness Range  0.3-0.8 mm
 Coil Width Range According to your actual drawing.
 Electric Power 380V, 50 Hz, 3 phase or according to your need.
 Dimension As the drawing
 Cutting Automatically stop and cutting when it comes to the set length.
 Length of Sheet  You can set the length according to your need.
It is controlled by PLC
length accuracy: ±1mm.

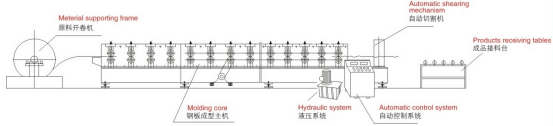

Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

glazed tile machine









Detail Show

glazed tile machine Uncoiler
Loading capacity 5T
Inner diameter 470-530mm
Steel coil width According for the drawing
Working Speed 0-15m/min
Feeding table glazed tile machine
It is used to control the width position of the steel sheet
The sheet is guided into the machine with the correct position to make sure the panel is neat and parallel

Main Frame
Material 350 H steel
Feature More table,no shaking
Forming Roller

Material High grade 45# steel
Roller Station According for the drawing

Glazed tile machine

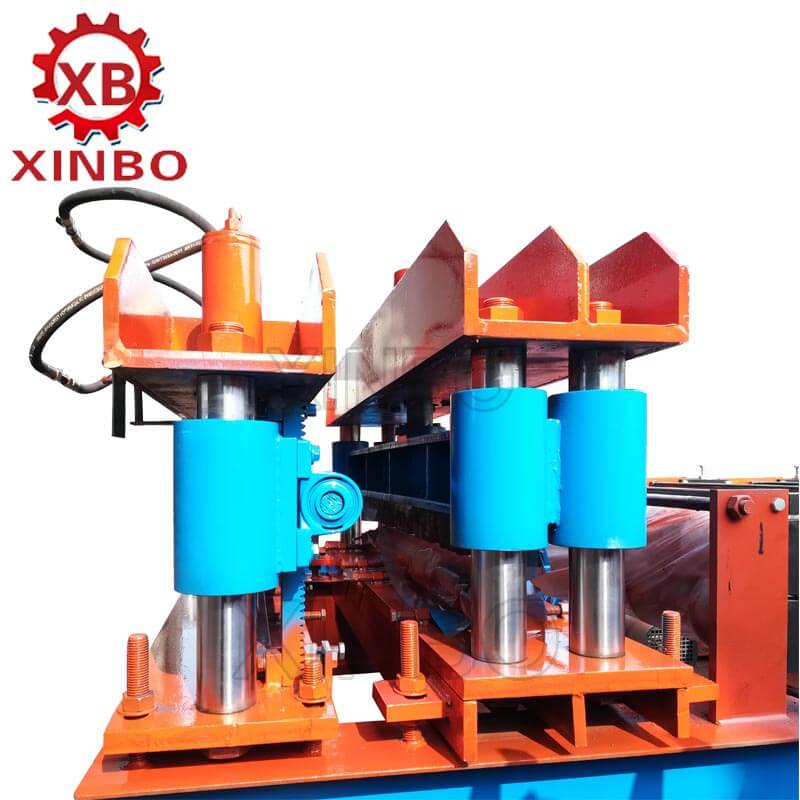

Cutting System

Material blade


Cr12MOV,much better the normal cr12 material

Hydrulic power


3kw or 4kw as designing

Control Cabinet glazed tile machine












Suitable Power

380V,50HZ,3Phase or according to your need

Feature

The whole process is automatically controlled by the computer.
In this way,you can ensure the accuracy and easy work

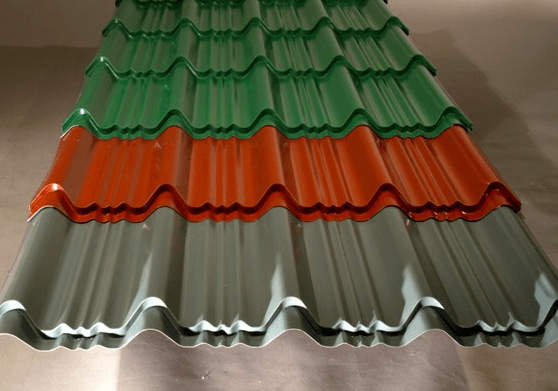

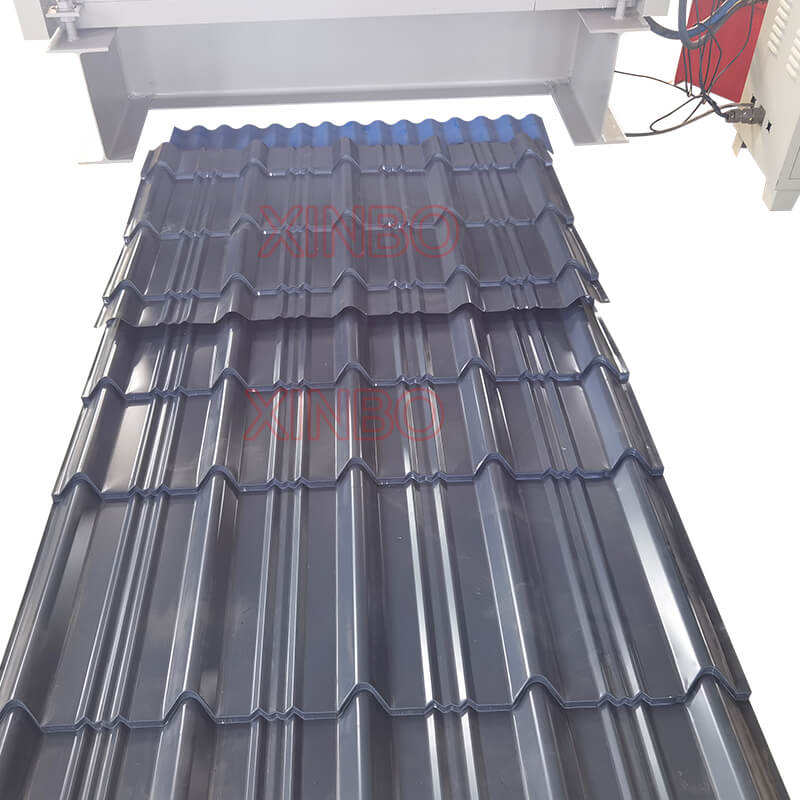

Product Display

glazed tile machine
