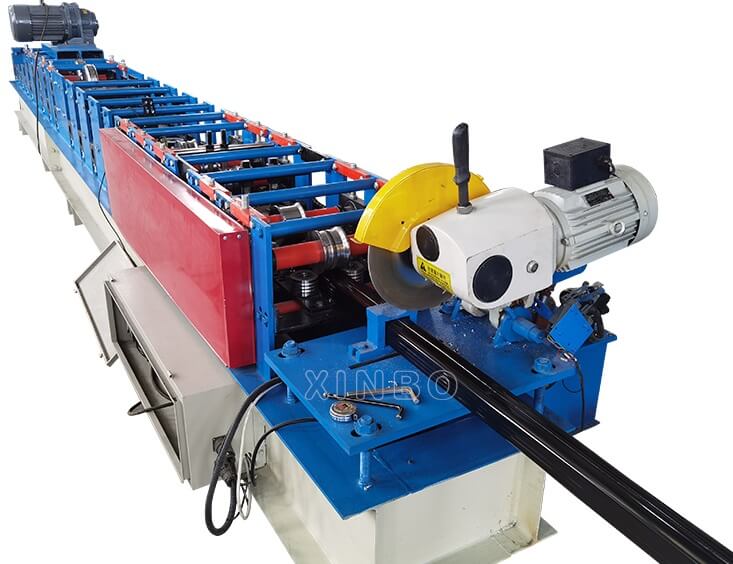

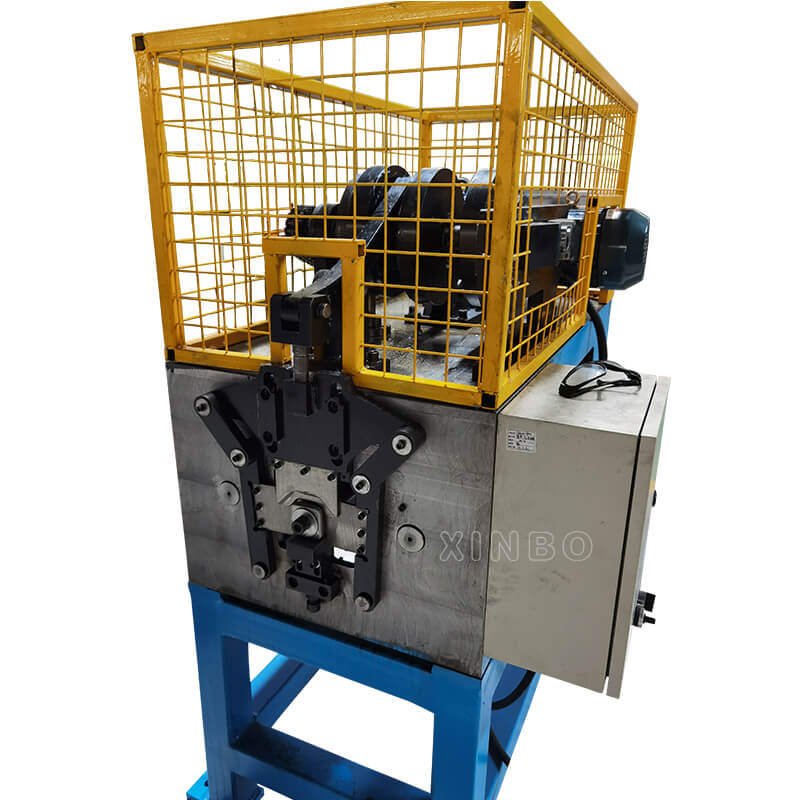

Downpipe roll forming machine and Elbow Machine

10, Jan 2023 221 views

  • Producing flow:

        Decoiler – Sheet guiding – roll forming – measure length– – cutting – panels to the supporter

  •  Main Parameter of Machine

    No.

    Item



    1.

    Processing Material

    Aluminuim,Galvanized

    3.

    Processing Thickness(mm)

    0.3-0.7

    4.

    Material of Rollers

    45# steel,with hard chrome coated

    5.

    Production Speed

    0-14 m/min

    6.

    Roller Driven

    Decelerating Motor+Chain Transmission

    7.

    Cutting Model

    Hydraulic Cutting

    8.

    Length Measurement

    Encoder

    9.

    Control Style

    PLC

    10.

    Station of roller

    As engineer designing

    11.

    Total Power

    5.5+4kw

    12.

    Voltage

    380V 50HZ or at buyer’s request


    Downpipe Introduction

    The downspout collects roof rainwater, which is an integral part of the downwater system, and is concentrated into the rainwater pipes laid below the ground. Downpipe materials can be divided into: 1. Metal pipes (such as cast iron pipes, colored aluminum pipes, copper pipes, etc.); 2. Plastic pipes (such as PVC pipes, etc.)
    The characteristics of color steel downpipe
    1. The application of steel downpipes makes the steel building more integrated. There are a variety of elbows to match the downpipes, and more complex walls are also suitable.
    2. Compared with ordinary PVC pipes, there will be no aging or cracks due to thermal expansion and contraction, so it is stronger.
    3. It is used in conjunction with steel buildings, with a generous profile and good visual effects.
    4. Various supporting accessories meet various installation requirements.

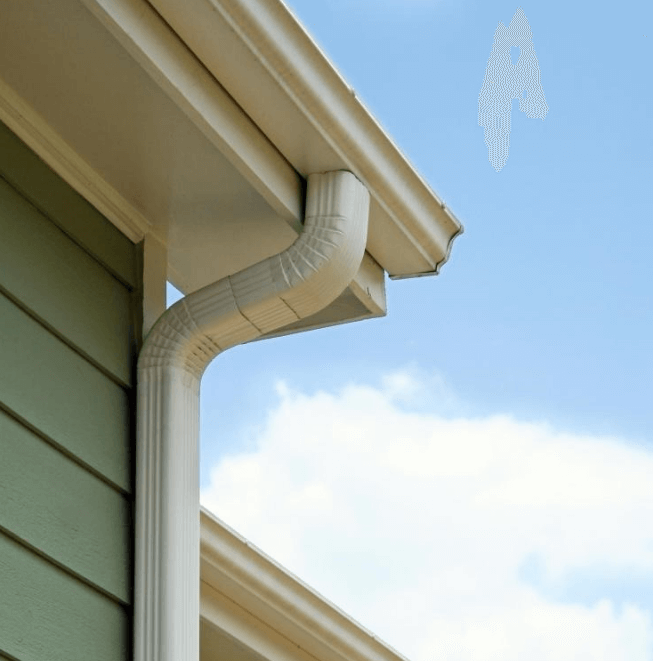

    Display after downspout installation
