In today’s fast-changing world of building and construction, being efficient, tough, and budget-friendly is super important. A fantastic tool that checks all these boxes is the IBR roof sheet forming machine. Built to make top-notch roofing panels quickly and accurately, this equipment is a game-changer for big industrial and commercial projects. By making the process of creating Inverted Box Rib (IBR) sheets automatic, it gives a smart and flexible way to keep up with the growing needs of construction.

What is IBR Roof Sheeting?

Definition and Characteristics of IBR Sheeting

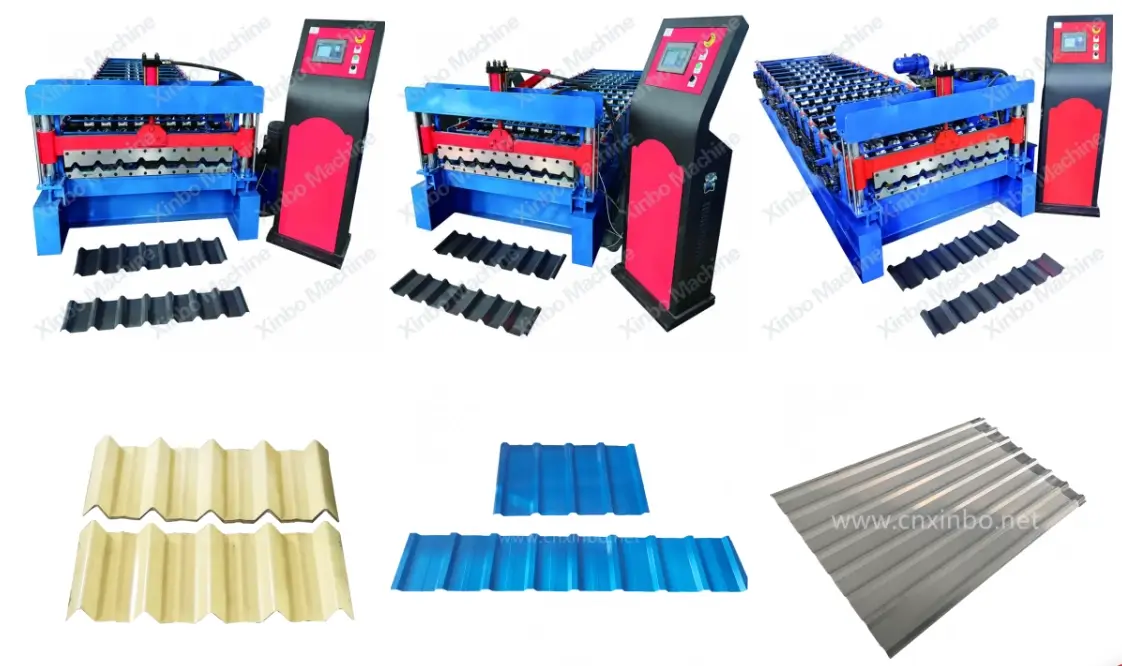

IBR roof sheeting is a handy metal panel mostly used for roofing and side walls in all kinds of buildings. The name IBR means Inverted Box Rib, which describes its sharp, boxy shape with a trapezoid design. This shape has high ridges and low dips that make it strong and nice to look at. Usually crafted from stuff like galvanized steel, zincalume, or color-coated steel, these panels are tough, stand up to bad weather, and don’t weigh much.

Common Applications in the Construction Industry

This sheeting isn’t just useful; it also adds a cool, modern vibe to buildings, fitting in perfectly with today’s design trends. You’ll see it on homes, storage warehouses, factories, shopping centers, airports, and farm buildings because it lasts long and is easy to put up.

Working Principle of the Ibr Roof Sheet Roll Forming Machine

The basic idea behind an IBR roof panel roll forming machine is a method called cold roll forming. Here, flat metal strips get shaped bit by bit as they go through many rollers, all without using heat. The metal slowly bends into the right form while passing through different roller spots. Each spot has a pair of rollers—one on top and one below—that nudge it into shape a little more each time. This way, every piece comes out the same and keeps its strength.

Key Components and Technical Specifications

Main Parts of an IBR Roof Sheet Forming Machine

Decoiler

This part holds and unrolls the metal coil. It often handles up to 5 tons and works with inner diameters of 460-510mm. Depending on the setup, it can be run by hand or with a hydraulic system.

Rollers and Stations

The main piece of the machine, it has 16-26 forming stations. The rollers, made of strong steel like 45# steel, are covered with chrome to stay tough and hard (58-62 HRC).

Cutting Mechanism

Hydraulic shears with Cr12 steel blades, hardened to 58-62, slice the panels to the right size. They’re super precise, with an error of just ±1.5mm.

Control Panel (PLC System)

This system uses PLC tech with touch screens, encoders, and inverters to keep everything running smoothly. It makes sure feeding, rolling, and cutting all work together perfectly.

Technical Parameters to Consider

Key details to keep in mind are:

• Coil width: up to 1250mm

• Material thickness: 0.3–0.8mm

• Speed: 10–20m/min

• Shaft diameter: 70–80mm

• Power requirement: 20–25kW

• Machine weight: 5500–9000kg

• Dimensions: around 7–7.5m x 1.2–1.7m x 1.2–1.5m

The Roll Forming Process of Ibr Roof Sheet Making Machine

Step-by-Step Overview of Sheet Formation

The making of these sheets follows a clear set of steps that show off careful and exact work.

1. Uncoiling – The raw coil sits on the decoiler.

2. Feeding – It’s lined up just right to start the process.

3. Forming – It moves through roller stations and slowly gets its shape.

4. Cutting – A hydraulic shear trims the sheet to size.

5. Stacking – The finished panels are piled up on an output table.

Material Feeding, Rolling, and Cutting Sequence

The whole thing runs without stopping. This allows speeds of 15-20m/min or even faster in fancier setups. So, it churns out a lot with very little waste.

Advantages of Using IBR Roof Sheet Making Machines

These machines bring a bunch of perks that make them a top pick for production.

• High Efficiency: Automatic setups cut down on worker costs.

• Precision Engineering: You get the same great quality every time.

• Cost Savings: Less waste and fewer delays save money.

• Versatility: You can tweak settings for different shapes.

• Durability: Strong parts keep working well for a long time.

• Eco-Friendly: They work with recyclable stuff, supporting green building ideas.

Role and Importance in Modern Construction

These machines help with speedy city growth by making materials fast for big projects like warehouses and airports. They’re awesome at meeting tight schedules while still turning out top-quality stuff. That’s why they’re a must-have in today’s quick-moving construction world.

Comparison with Other Roofing Products

Differences Between IBR Sheets and Corrugated Sheets

Corrugated sheets have curvy waves that bend easily. On the other hand, IBR sheets have boxy trapezoidal ribs. These give more strength, making them perfect for bigger areas or heavier weights.

Performance Evaluation: Durability, Cost, Installation

IBR sheets beat out older materials in many ways:

• They’re lighter (~4.5kg/m² compared to clay tiles at ~40kg/m²)

• They go up faster thanks to wider spans

• They drain water better with deeper grooves

• They need less fixing over the years

Maintenance and Safety Considerations

Regular upkeep includes:

• Greasing moving parts often

• Checking if rollers are lined up right

• Clearing dirt off cutting blades
  Safety steps involve:

• Shielding spinning parts

• Having emergency stop buttons on control panels

• Training workers properly

Future Trends

Looking ahead, we might see cooler updates. Things like smarter automatic systems, earth-friendly materials, and quicker speeds could come next. These would tie in nicely with digital tools in modern smart factories.

FAQ

Q: What materials can an IBR roof sheet forming machine handle?
A: It works with galvanized steel coils (GI), color-coated coils (PPGI), and aluminum-zinc alloys most of the time.

Q: How long does it take to make one panel?
A: At speeds up to 20m/minute, you can get 9600–18900m done in an 8-hour shift, based on the setup.

Q: Can one machine make different shapes?
A: Yes, some machines have rollers you can adjust or swap out to change the profile.
