Roller shutter door machine

1.Factory To Your Door
2.MOQ:Only 1 Piece
3.OEM*ODM Service
4.Suitable For Roofing, Siding,Wall Cladding

Roller shutter door machine

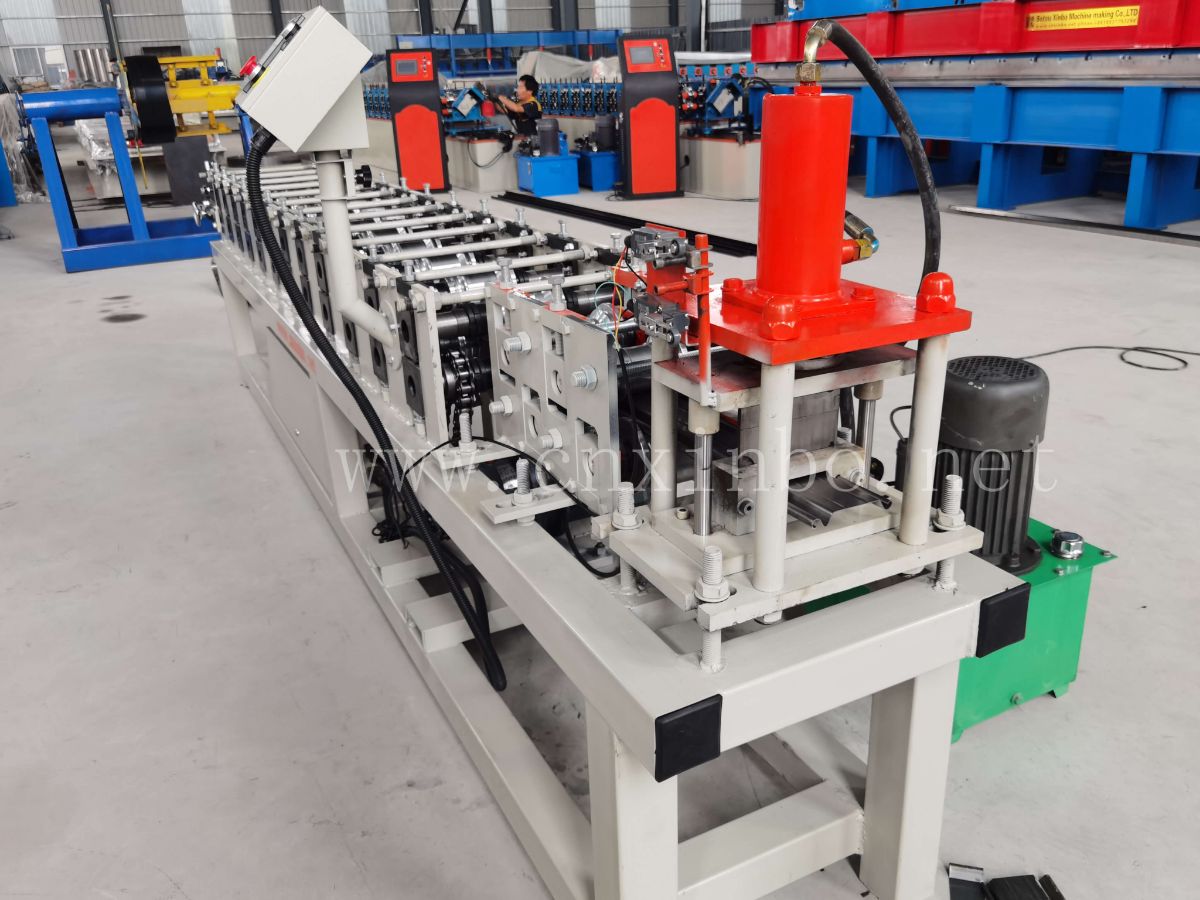

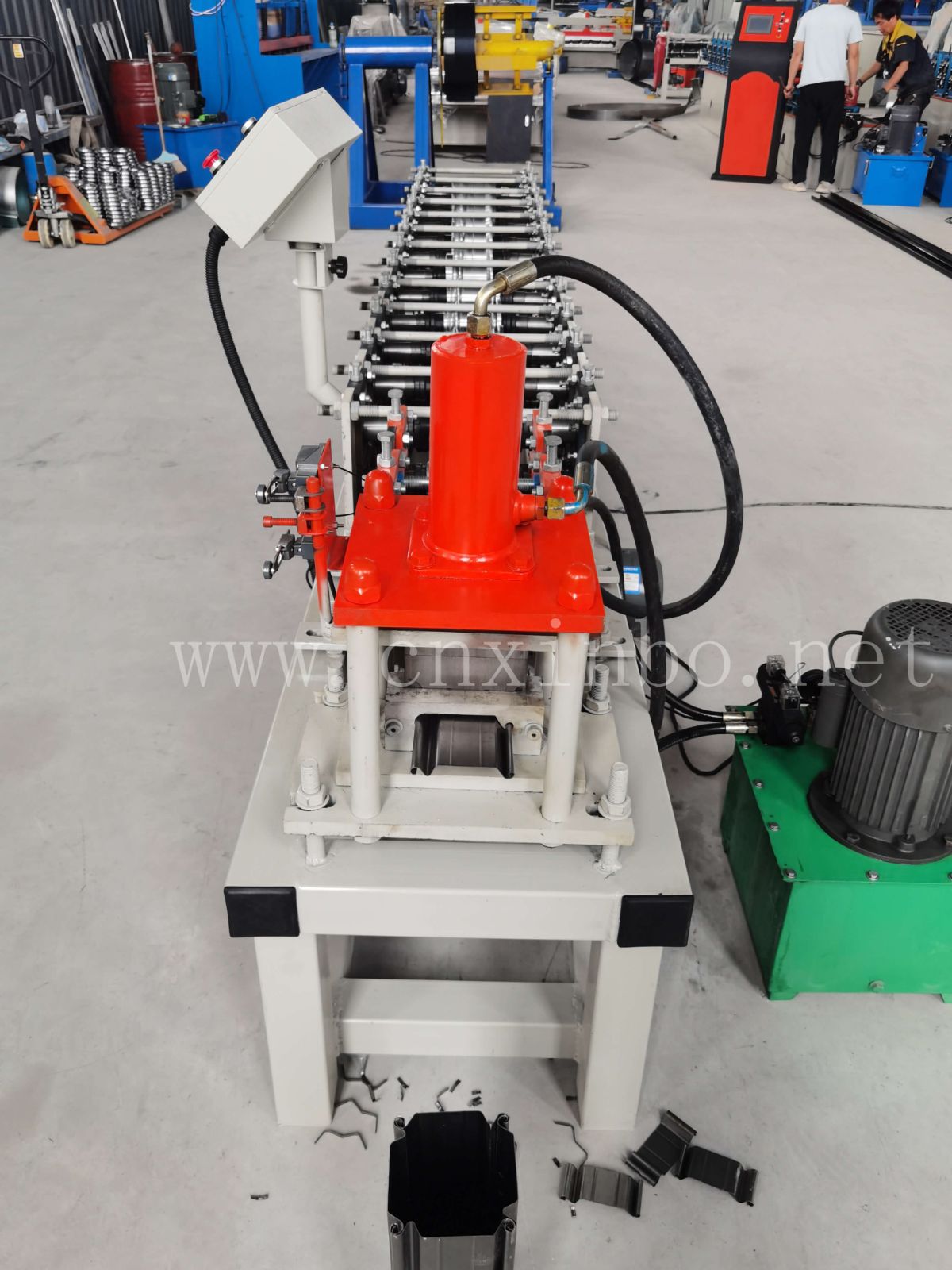

A shutter door roll forming machine is a highly efficient and automated machine used in the manufacturing process of shutter doors. This machine is designed to produce high-quality and precise profiles that are used in the construction industry.

The roll forming process involves feeding a metal strip into the machine, which then passes through a series of rollers. These rollers gradually shape the metal strip into the desired profile. The machine is equipped with different sets of rollers, each designed to create a specific part of the shutter door profile. This ensures that the final product is uniform and meets the required specifications.

Main Parameter of Roll Forming Machine

Processing Material

PPGI,GI

Input Width

as customer needing

Formed Width

as customer needing

Processing Thickness(mm)

0.4–1.0mm

Material of Rollers

45# steel, with hard chrome coated

Production Speed

0-20m/min

Roller Driven

Decelerating Motor + Chain Transmission

Cutting Model

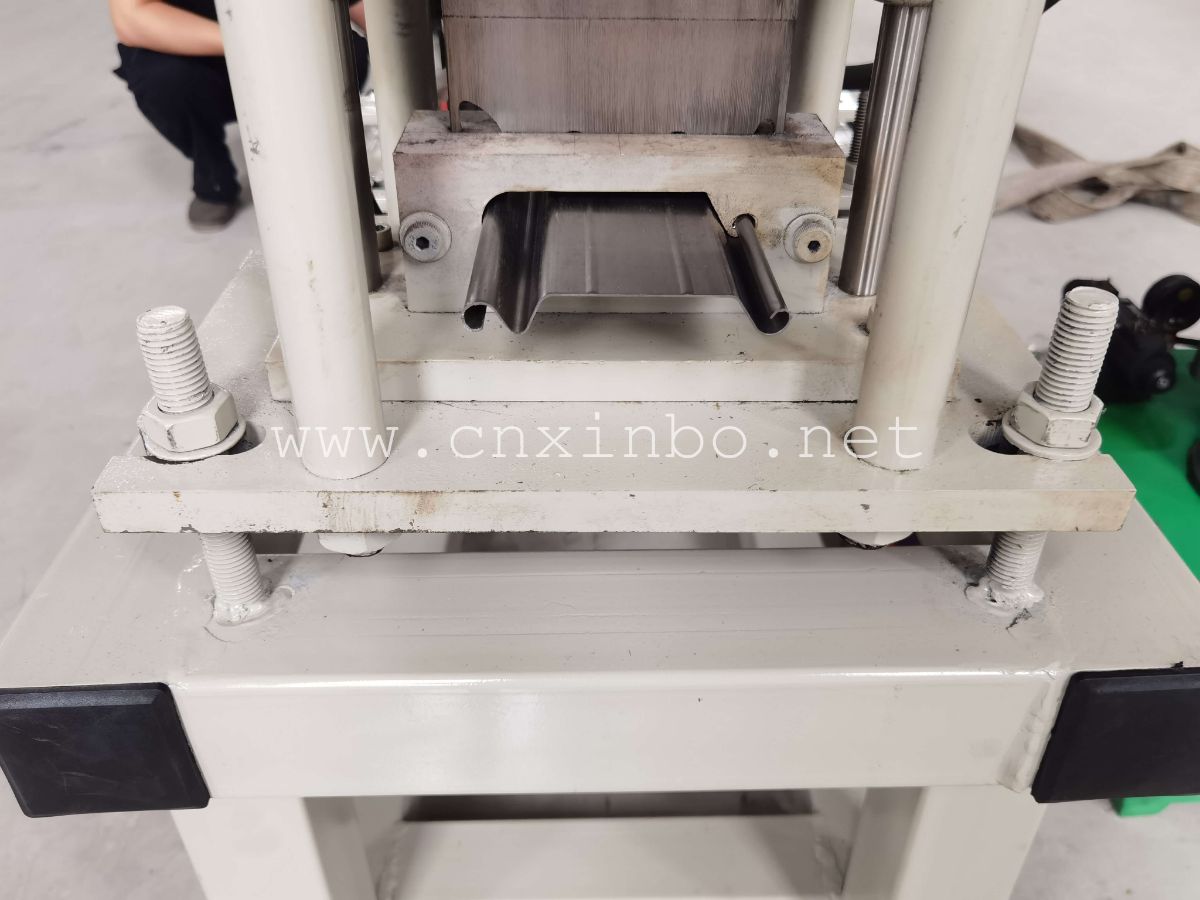

Hydraulic mould Cutting

Length Measurement

Encoder

Control Style

PLC

Operation Model

Button+touchscreen

Total Power

3+3KW

Voltage

380V 50HZ 3Phase or at buyer’s request
