Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine
Wall Angle Roll Forming Machine

1.Smart design

2.Fully automatic running

3.Easy operation and use

Chat Now Contact

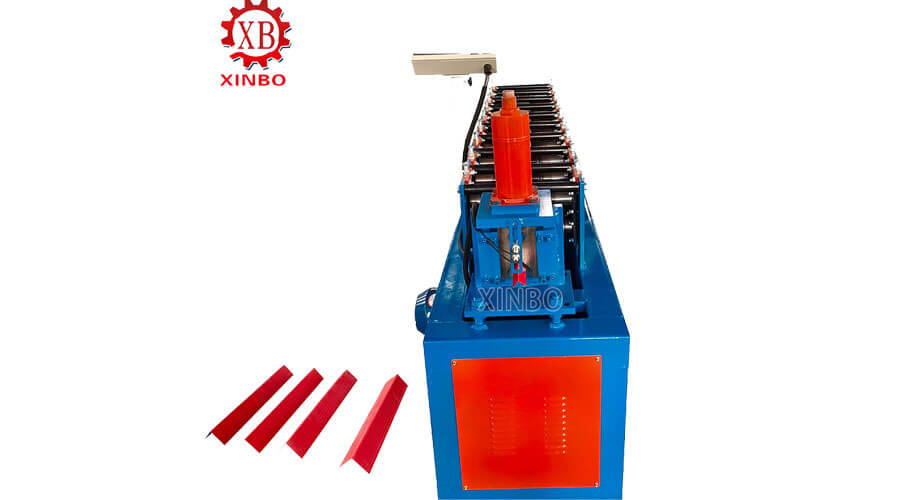

Wall Angle Roll Forming Machine

A wall angle roll forming machine is a type of machinery used to create metal profiles, specifically wall angles, from flat metal sheets. The process involves feeding a coil of metal through a series of rollers that gradually shape it into the desired angle. The result is a strong, durable product that is essential for constructing walls, ceilings, and other structural elements.

Technical Specifications

Processing Material  PPGI/ GI coils
Input Width  customized
Formed Width  As drawings/needing
Processing Thickness  Standard: 0.3–0.7mm/customized
Frame Style  square pipe welded
Material of Rollers  45# steel, with heat treatment and hard chromed
Diameter of Shaft  40mm
Production Speed  Standard: 0–15m/min; customized
Roller Driven  Decelerating Motor+China Transmission
Cutting Model  Hydraulic Profile Cutting
Length Measurement Encoder
Control Style  PLC
Operation Model  Button+Touch Screen
Total Power 3+3KW; customized
Voltage  380V, 50Hz, 3 phrases; or at buyer’s request
