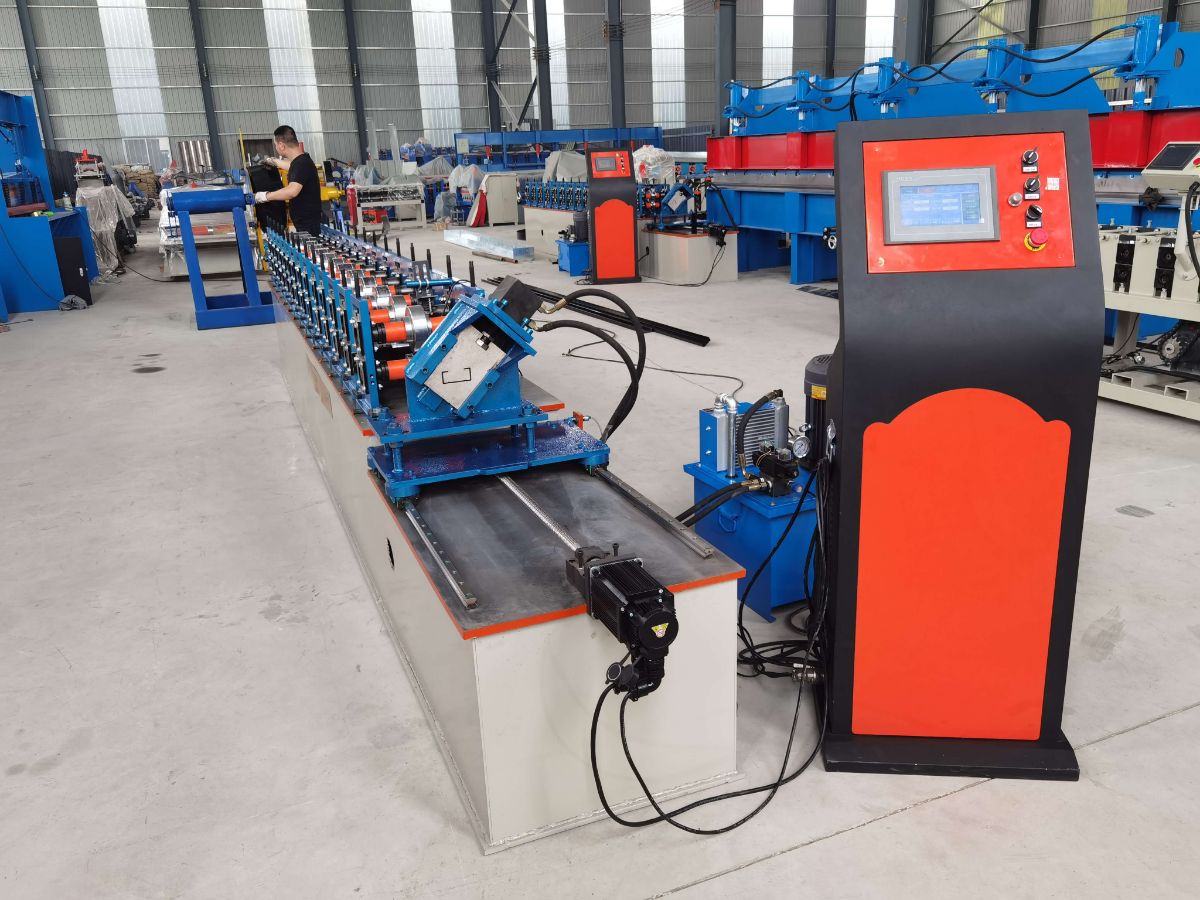

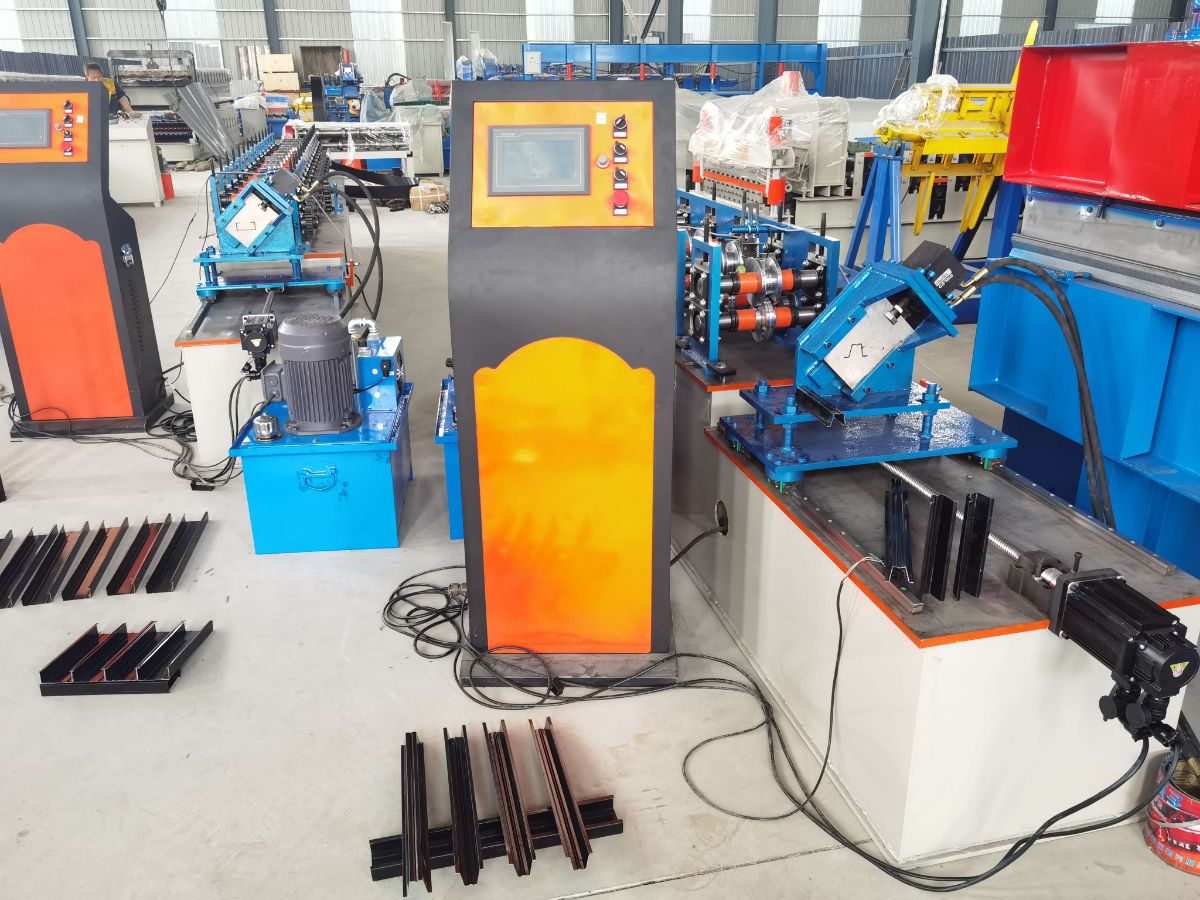

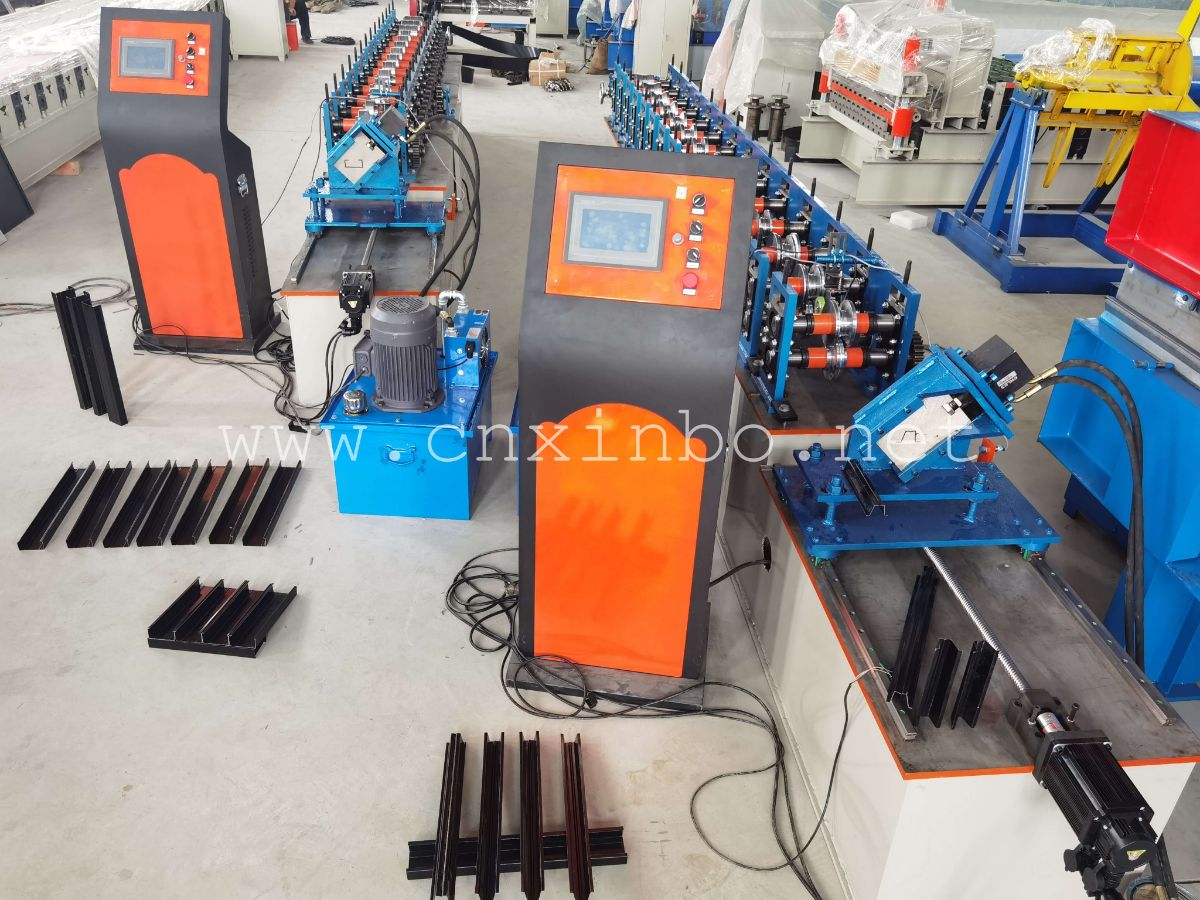

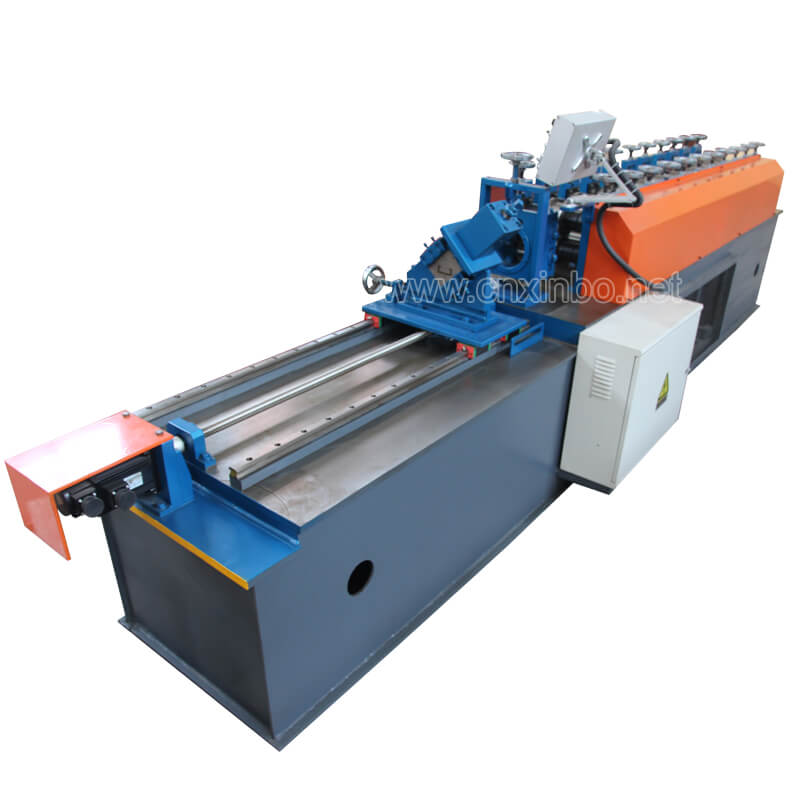

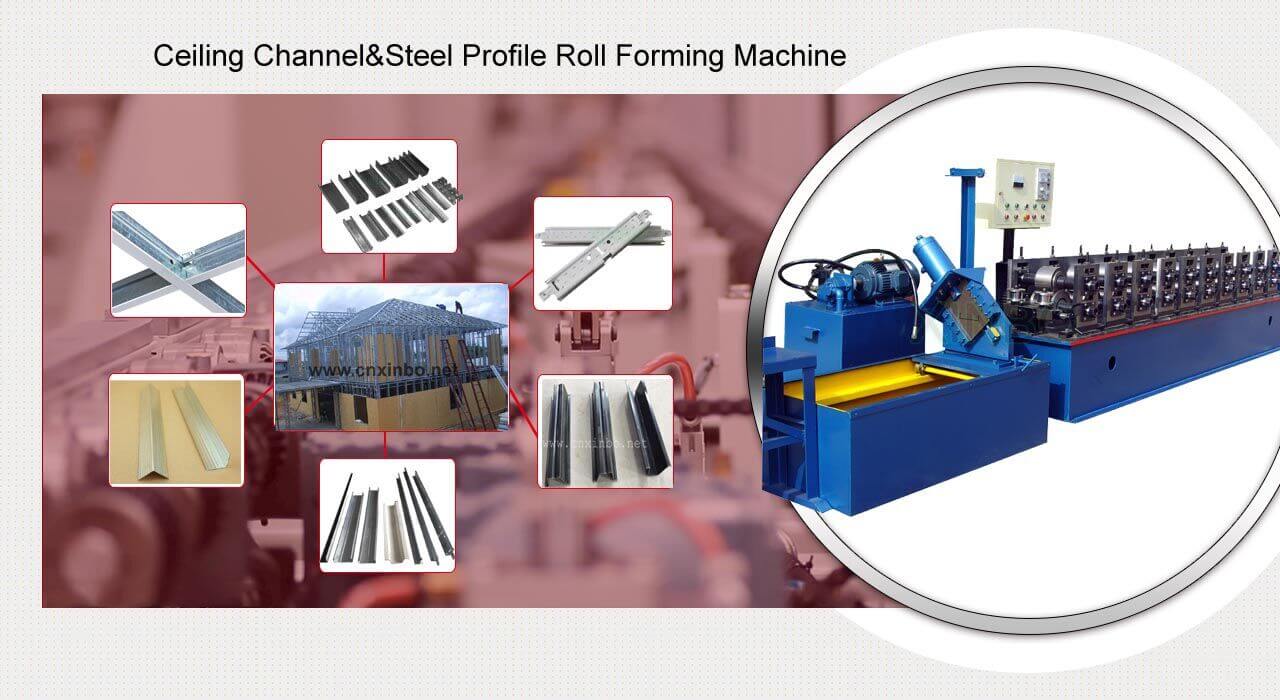

CD UD Stud & Track

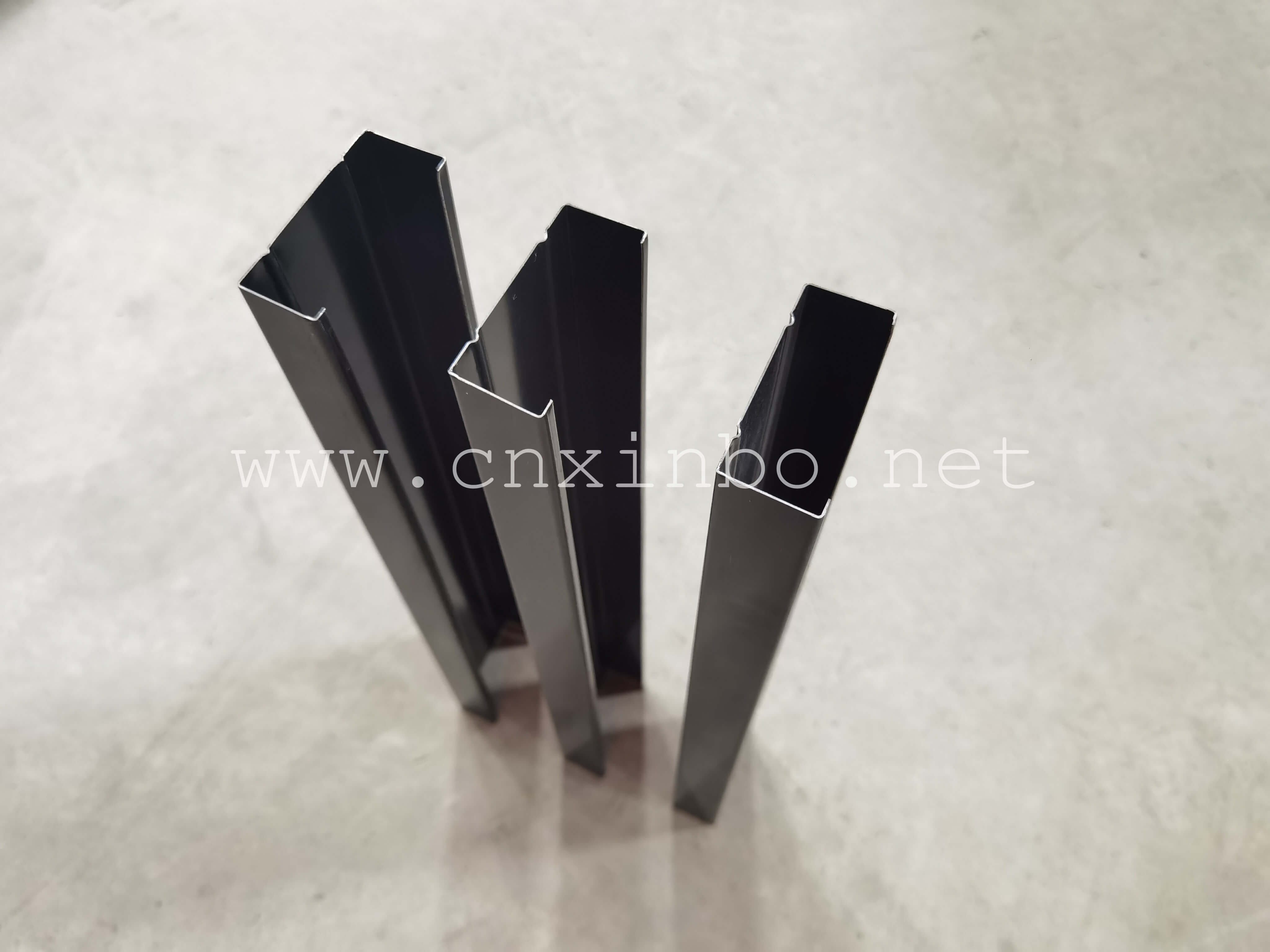

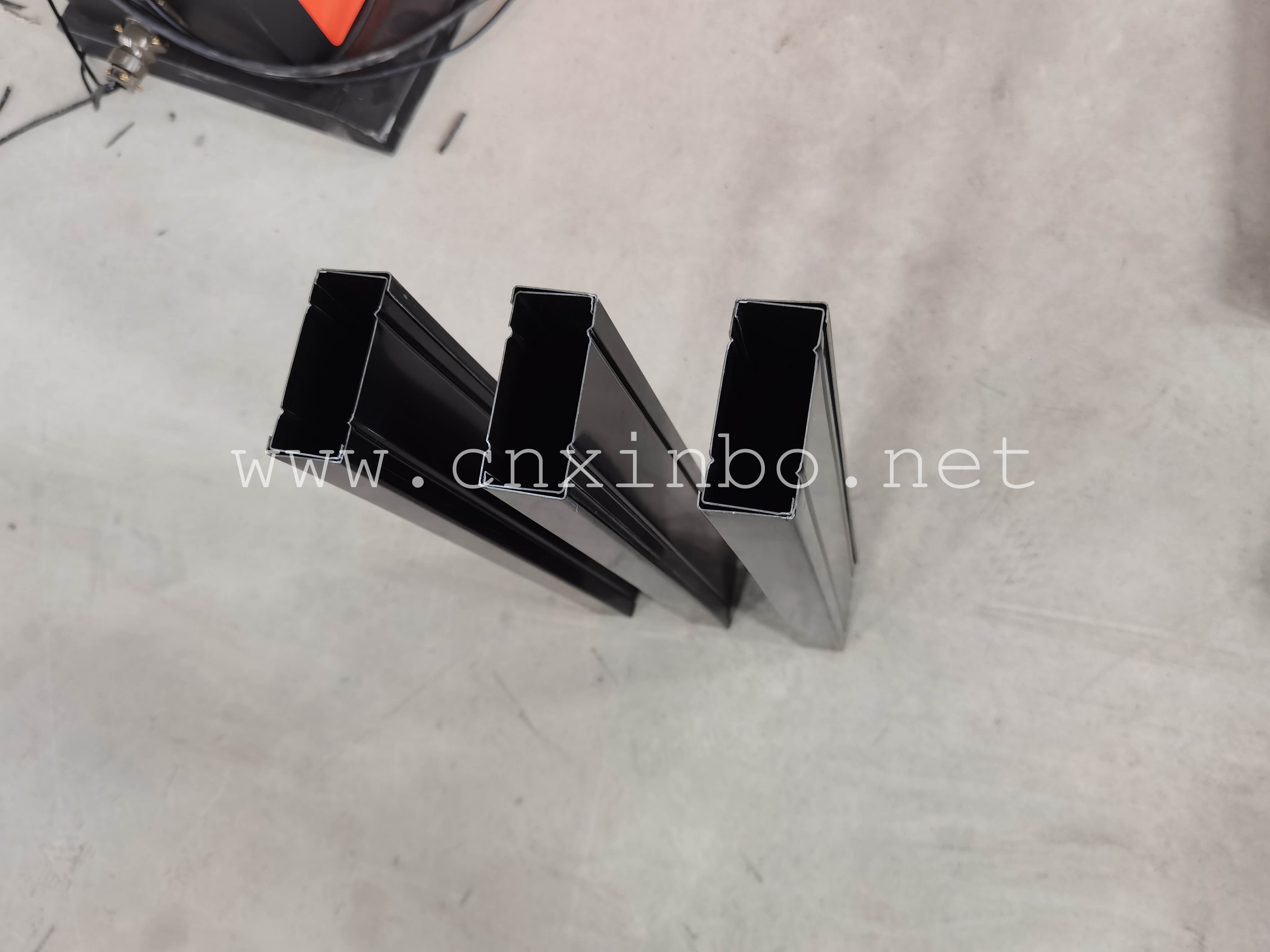

This producing line uses galvanized steel sheet,or aluminum plate as the material plate. The
C U profile channels are as structure of building, as well as decorative sheet and ceiling board
inside of building, to increase the beauty and durability of structure.
This line has no limit on processing length; you can set several different data on the computer
control cabinet according to your own need.the machine can produce the panel automatically
According to the set data.



Technical Parameter

Material Galvanized Steel Sheet
Equipment Operation Automatically
Voltage AC380/50Hz or as your requirment
Thickness of sheet(mm) 0.3-0.8mm
Formed width(mm) As drawing
The size of main body 6000mmx1000mmx1500mm
Productivity 0-25m/min
Diameter of shaft Ф50mm
Cutting tolerance +-0.5mm
Total power(kw) 7.5 kw

II. The technical flow of the production line

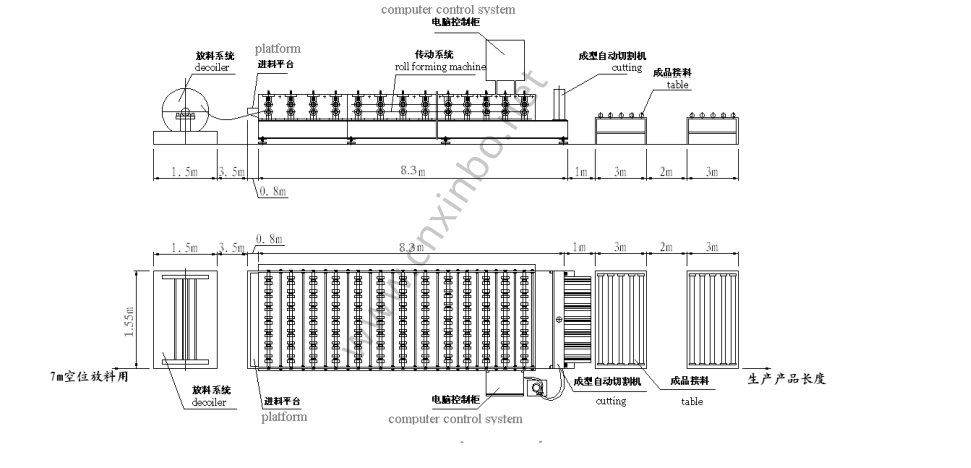

Decoiler—-servo feeding—- Forming part —cutting part—receiving table

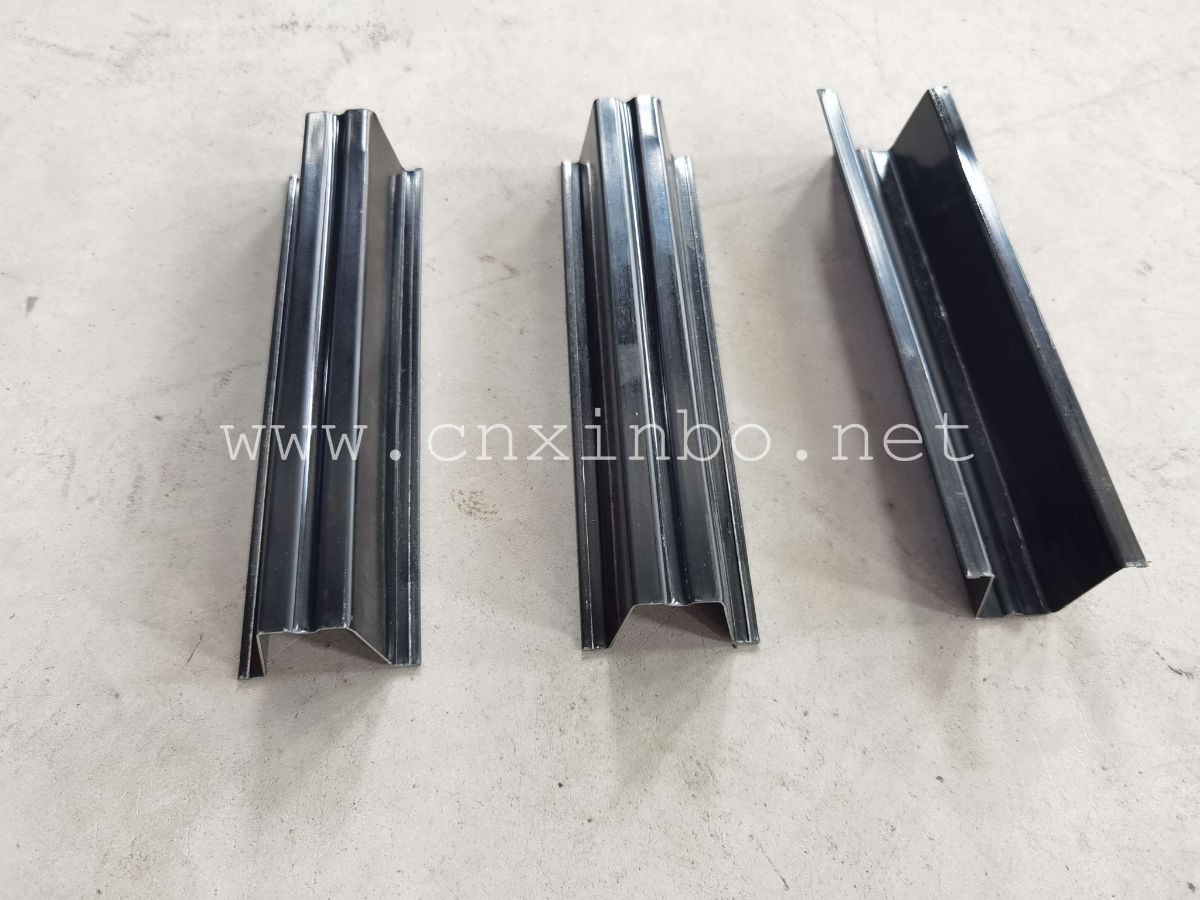

CD UD Stud&track









III. Equipment makeup and main parameters of single unit:
1. Decoiler:

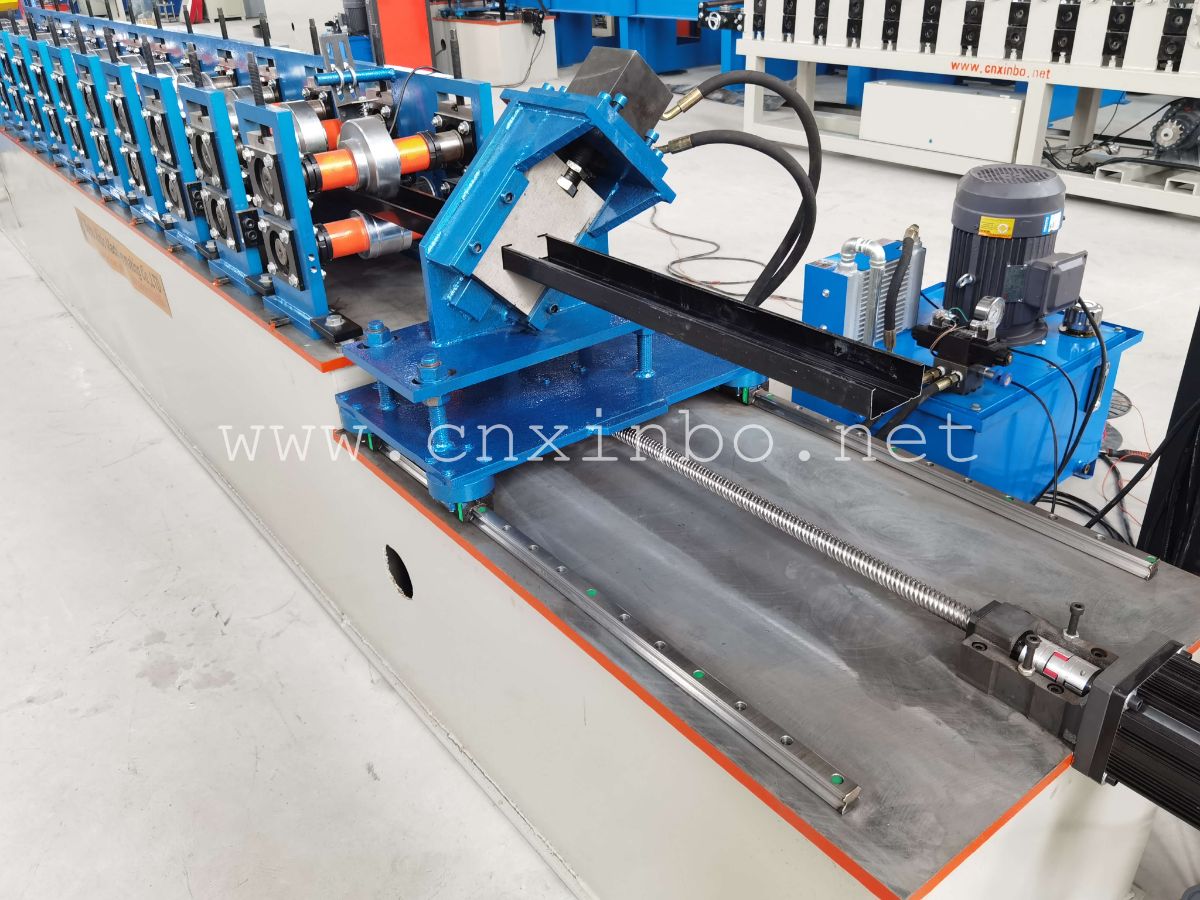

CD UD Stud&track

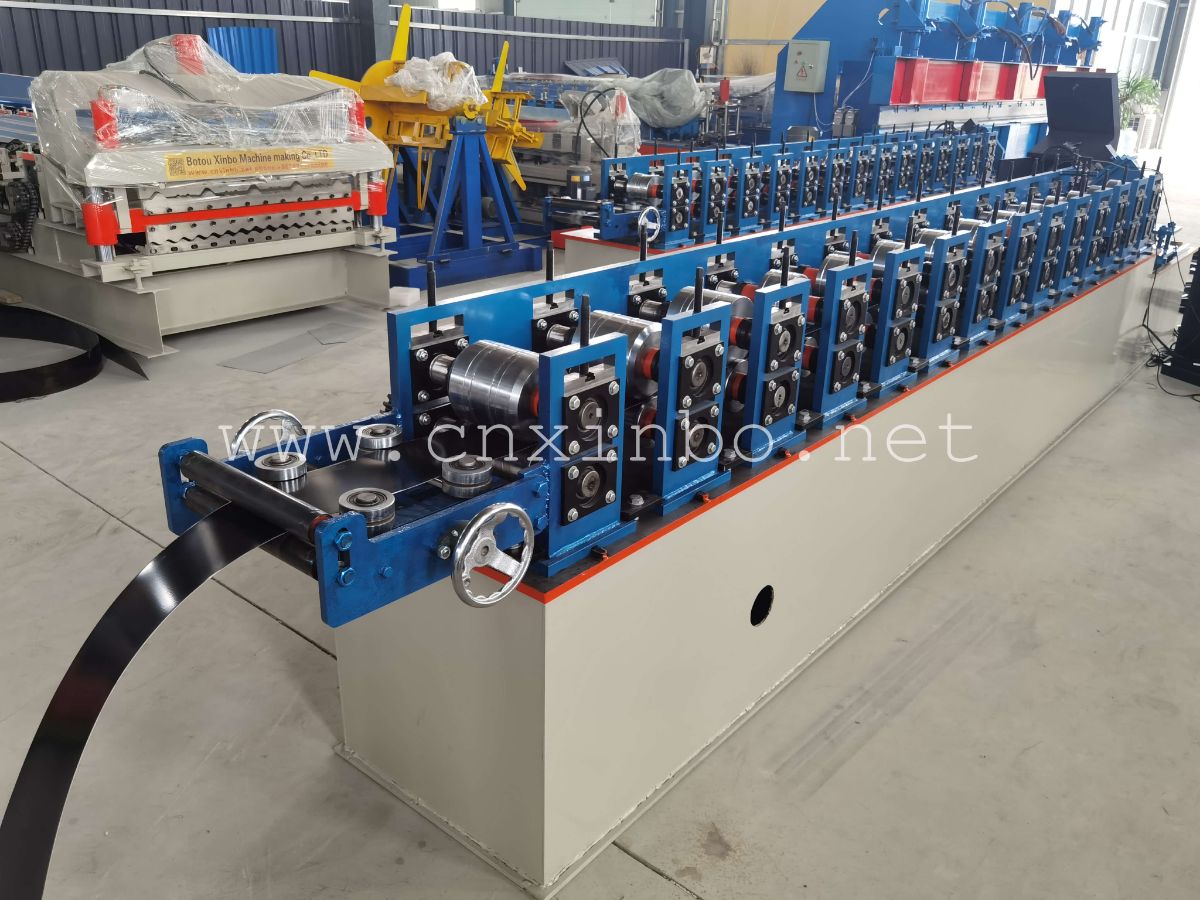

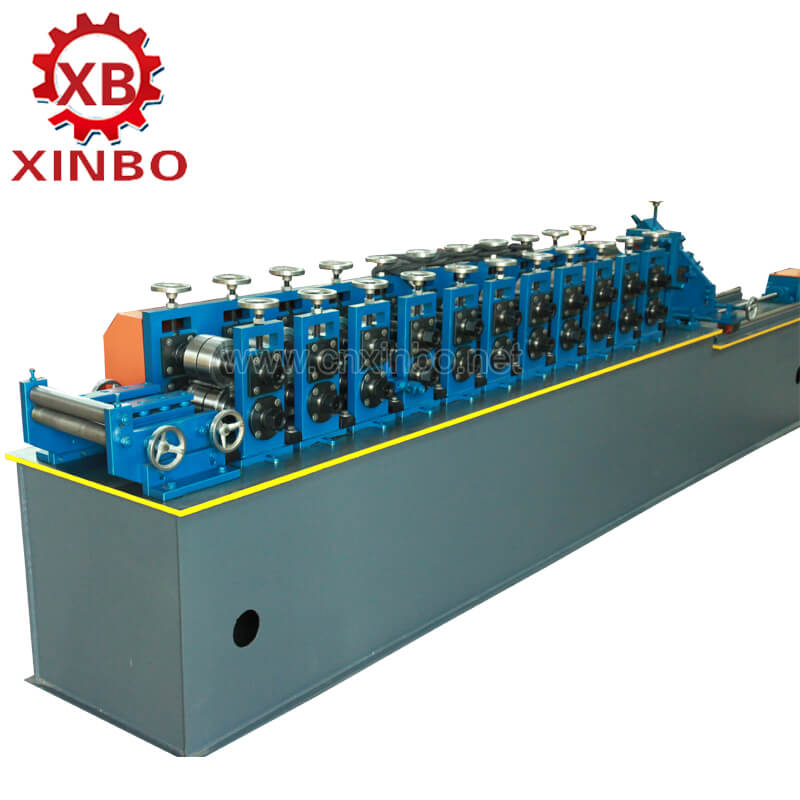

2.Feeding and Forming Part:

3.Computer part:
