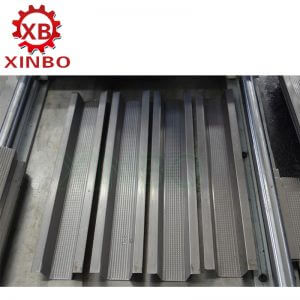

Furring Channel Roll Forming Machine

1.Factory To Your Door
2.MOQ:Only 1 Piece
3.OEM*ODM Service
4.Suitable For Roofing, Siding,Wall Cladding

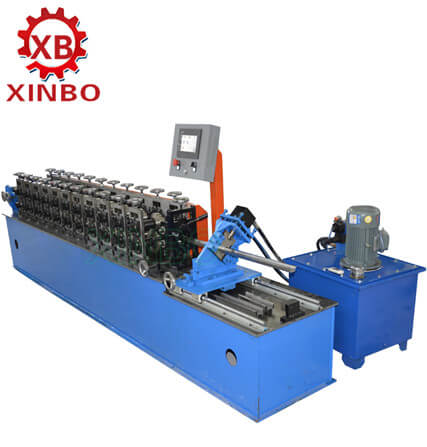

Furring Channel Roll Forming Machine

Light keel roll forming machines are an essential part of the construction industry. They are used to create lightweight, strong, and durable metal frames that are used in ceiling systems, partition walls, and other construction projects. These machines use a process called roll forming to shape metal into the desired shape and size.

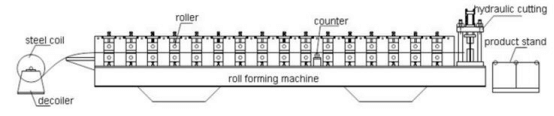

The process of roll forming involves feeding a strip of metal through a series of rollers that gradually bend and shape the metal into the desired shape. The metal is then cut to the desired length and can be used in construction projects. Light keel roll forming machines are designed to handle a variety of metals, including steel, aluminum, and copper.

No.

Item

Specification

1.

Processing Material

GI.Black steel.Al

2.

Input Width(mm)

As designing

3.

Formed Width(mm)

As customer drawings

4.

Processing Thickness(mm)

0.8-1.2mm

5.

Material of Rollers

45# steel,with hard chrome coated

6.

Diameter of Shaft

Ф70-80mm

7.

No.of rollers

13

8.

Production Speed

0-15m/min

9.

Roller Driven

Decelerating Motor+gear+Chain

Transmission

10.

Cutting Model

Hydraulic Profile Cutting

11.

Length Measurement

Encoder

12.

Control Style

PLC

13.

Operation Model

Button+ screen

14.

Total Power

5.5KW

14.

Voltage

380V 50HZ or at buyer’s request
