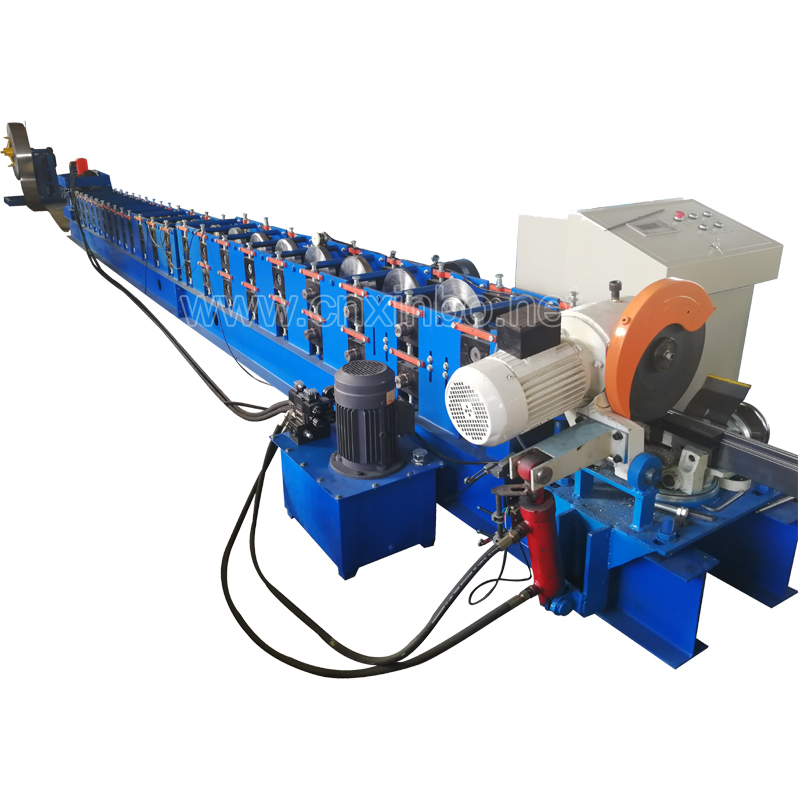

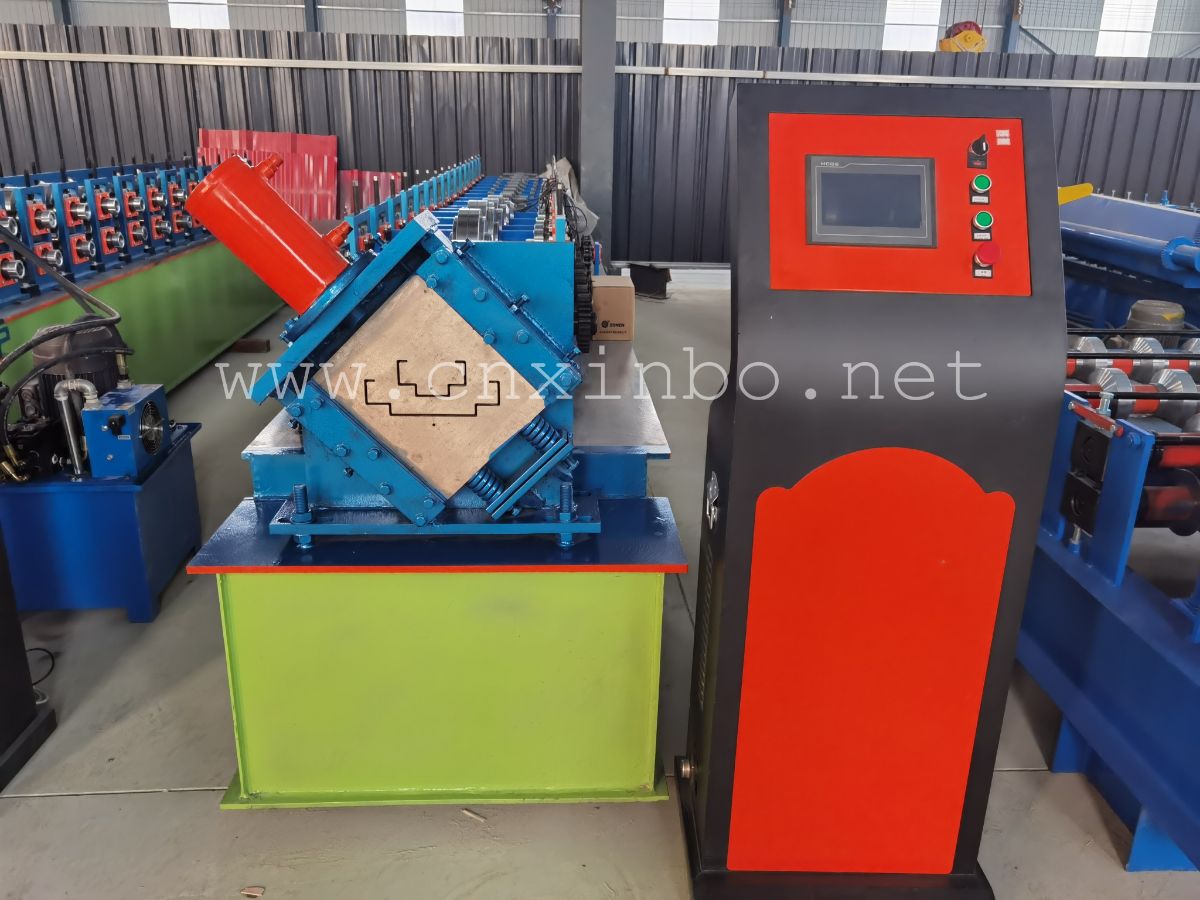

Door Frame Roll Forming Machine

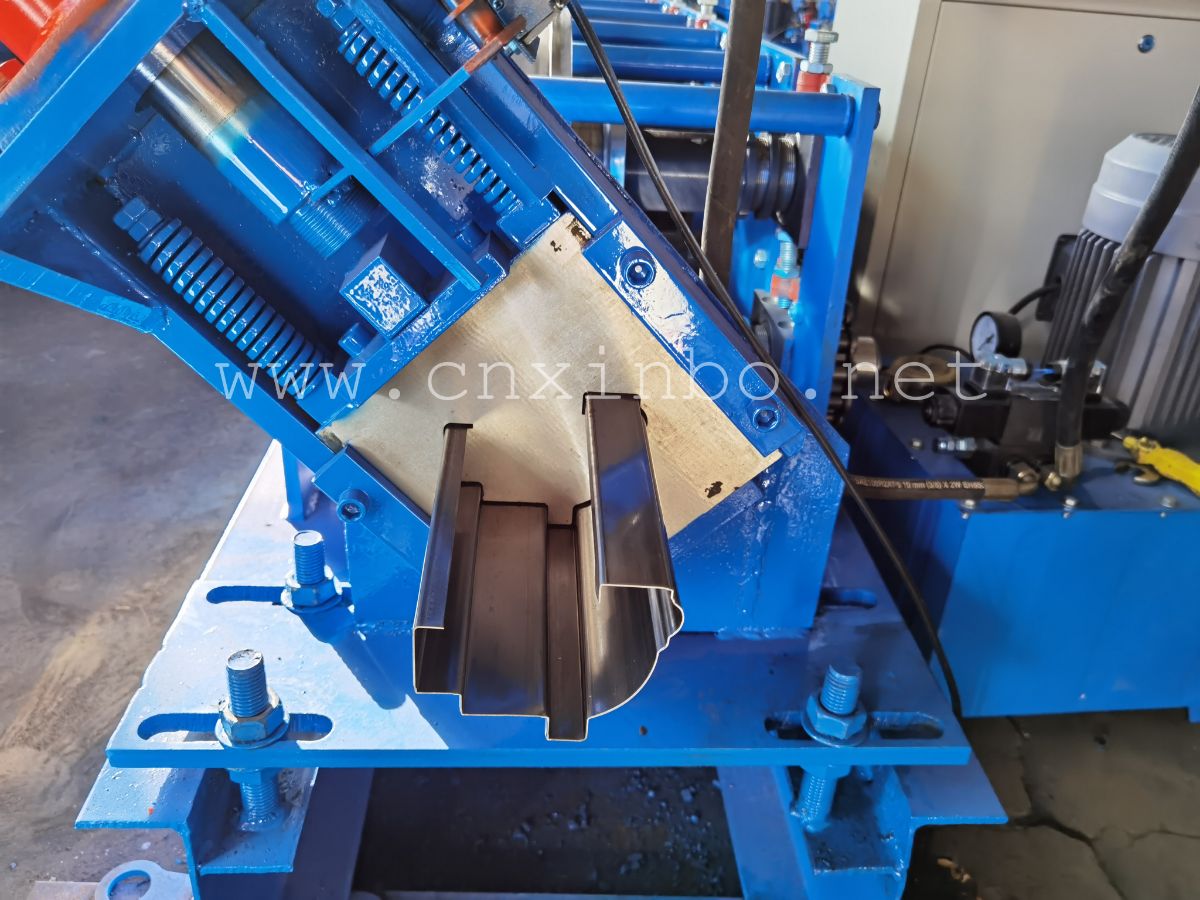

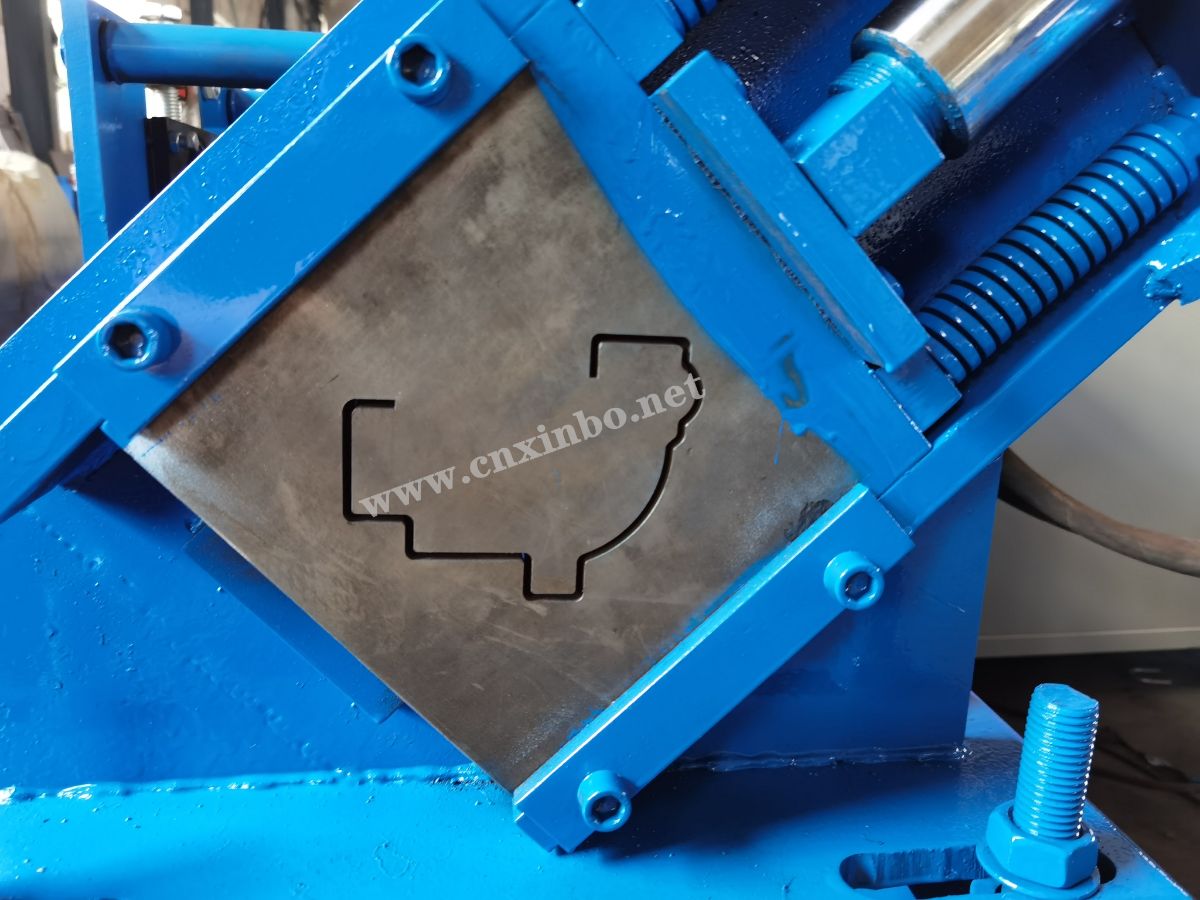

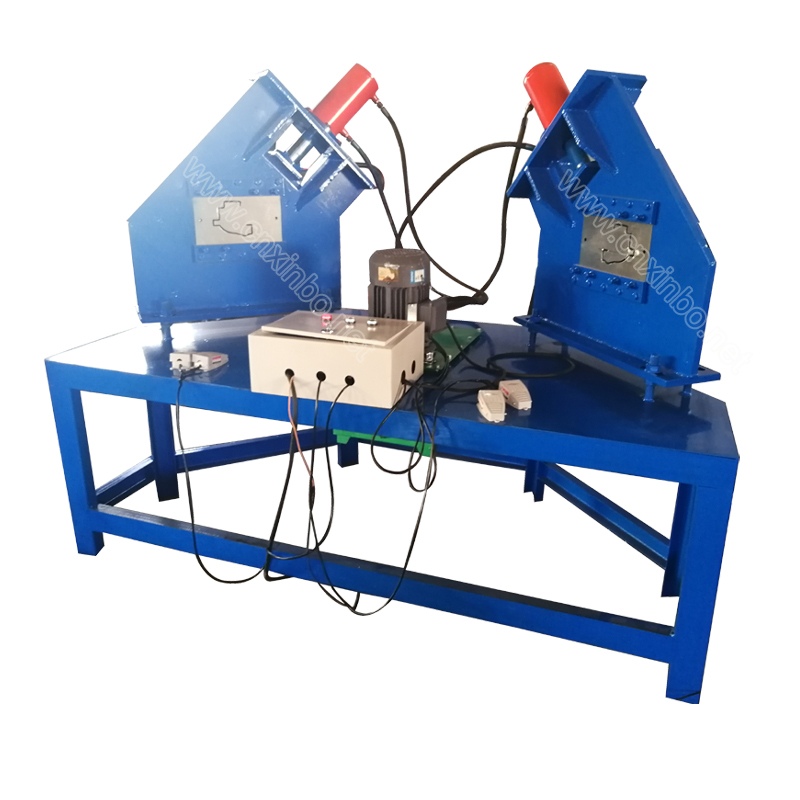

Has two kinds of cutting, straight 90 degree cutting and 45 degree cutting.

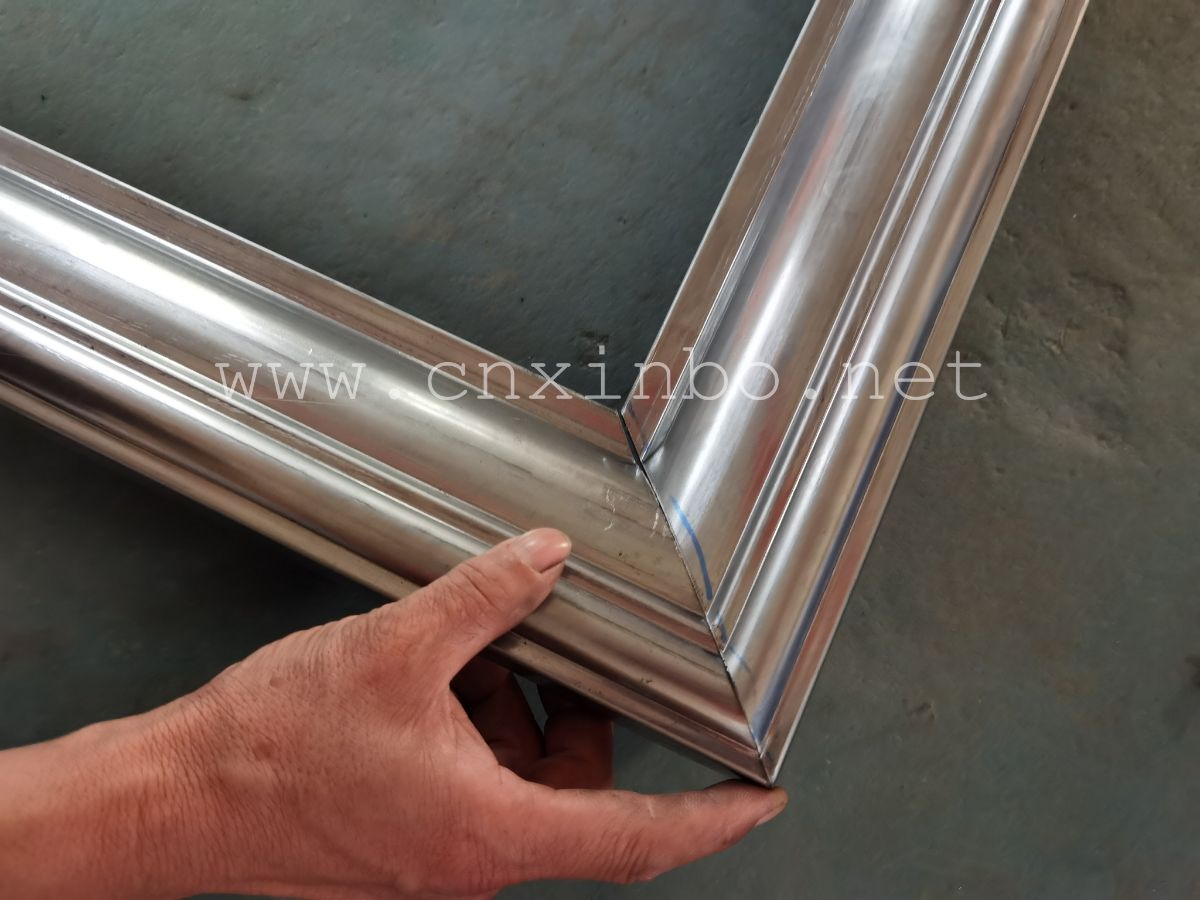

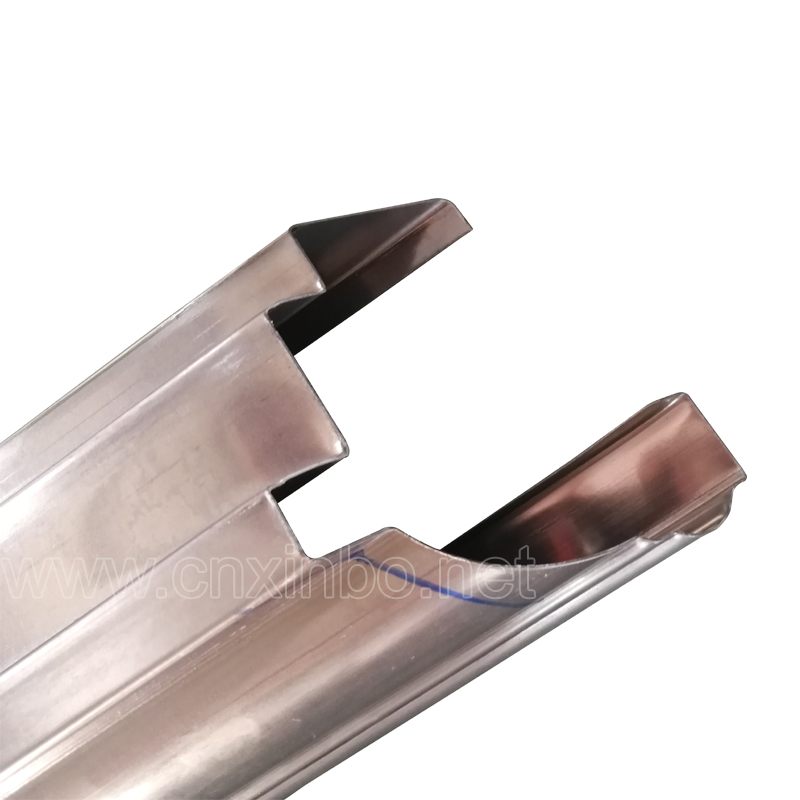

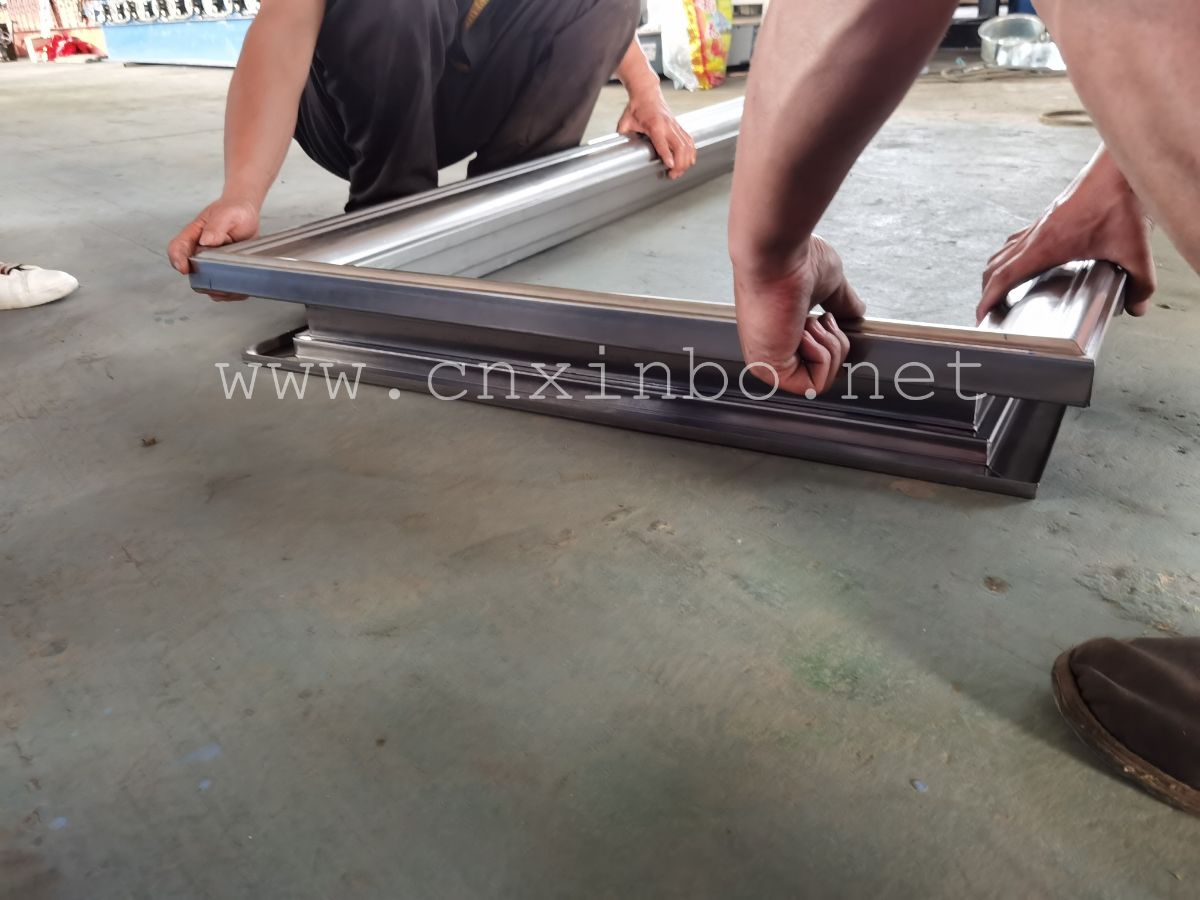

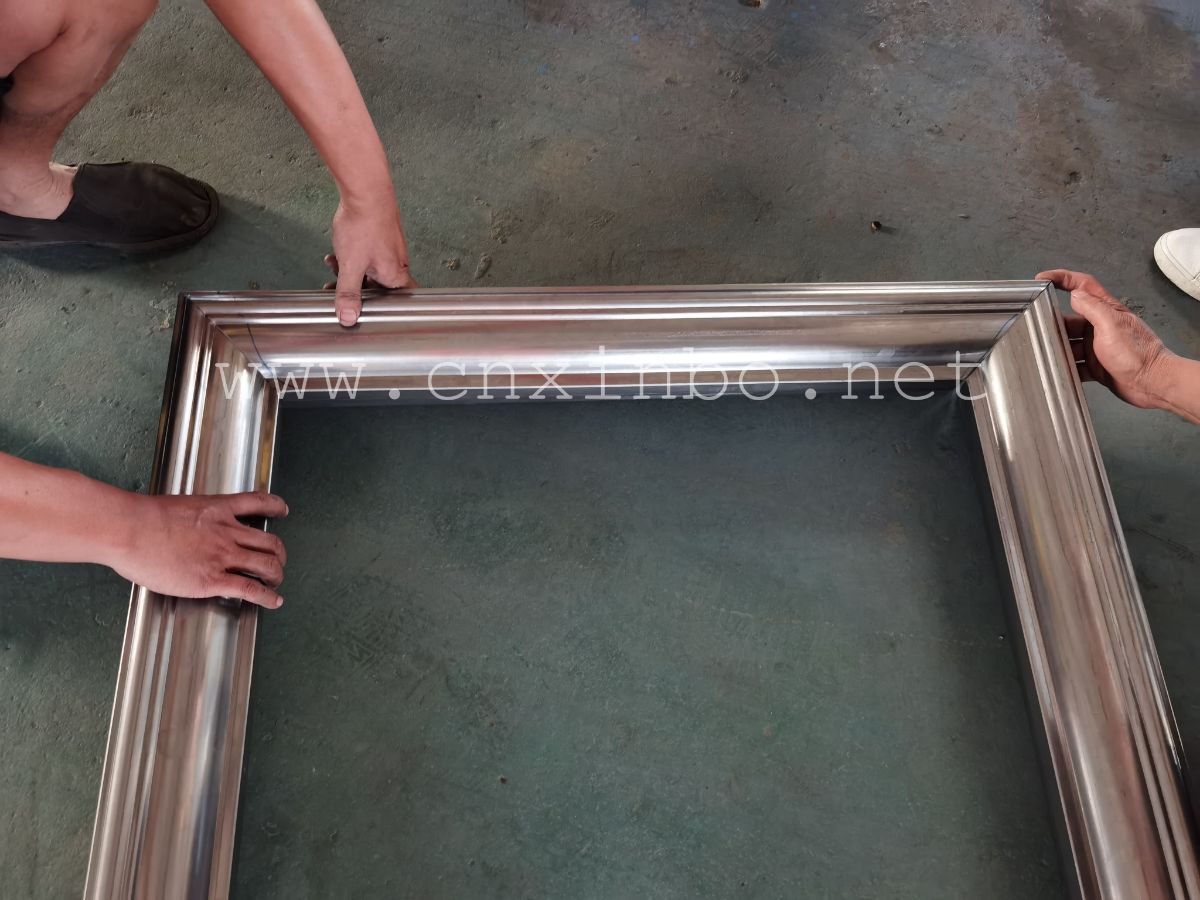

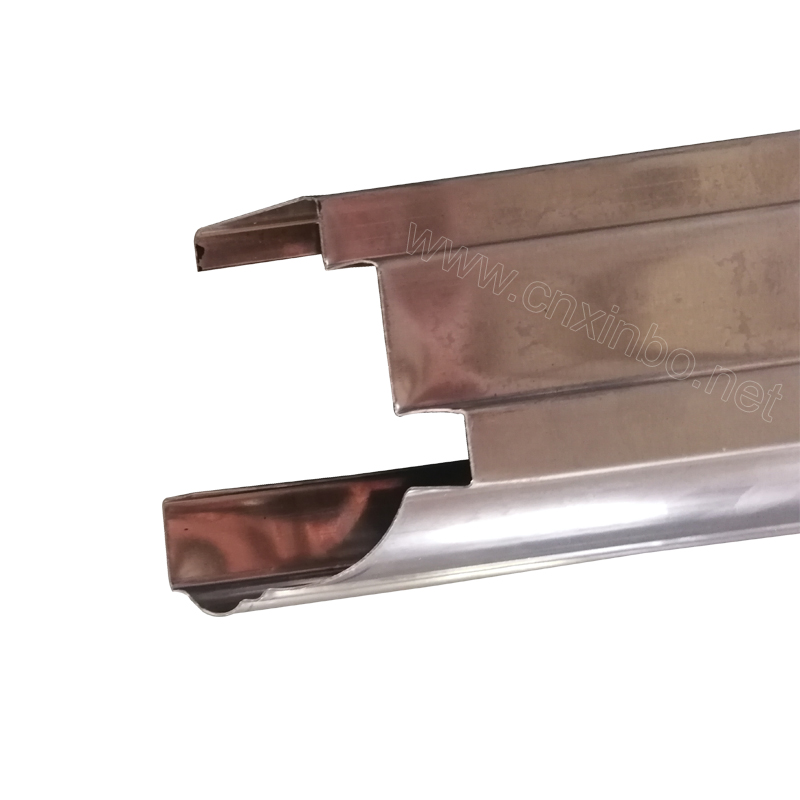

These two kinds of cutting helps to get the proper door frame which will be combined as a square door frame structure.

Working flow:

More details:

Parameters of main parts of the machine

Decoiler Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity: 3t

Uncoiling width: 300mm

Inner diameter: 450-550mm

Feeding and leveling This part will level coil to make sure it is neat clean and straight.

Main Machine Forming part size: 5800х1200х1500mm

Voltage: 380V 50HZ 3Phase OR as customer need

Material of rollers: Cr12

Material of shafts: 45# steel with tempering

Main motor power: 7kw

Shearing machine Material of blades: Gcr12 quenched

Power supply: hydraulic power

Hydraulic Station Hydraulic motor power: 4kw

Hydraulic oil: 46#

Components: the system includes a set of hydraulic tank, a set of hydraulic

oil pump, and two hydraulic pipes.

Electric Control System Adopted PLC, transducer, touch panel to ensure high speed with stability,

precision and lifetime.

Language: English

Automatic length measurement

Automatic quantity measurement

Length Tolerance: 3m±1.0mm

Computer operating panel: touching screen and buttons.

Runout table It adopts welded steel and supported roller to transmit the products.


After service

All of our machine has 18 month warranty. and we have engineers to different countries as customer needing.

Also online for teaching and help to installation to save customer time.
