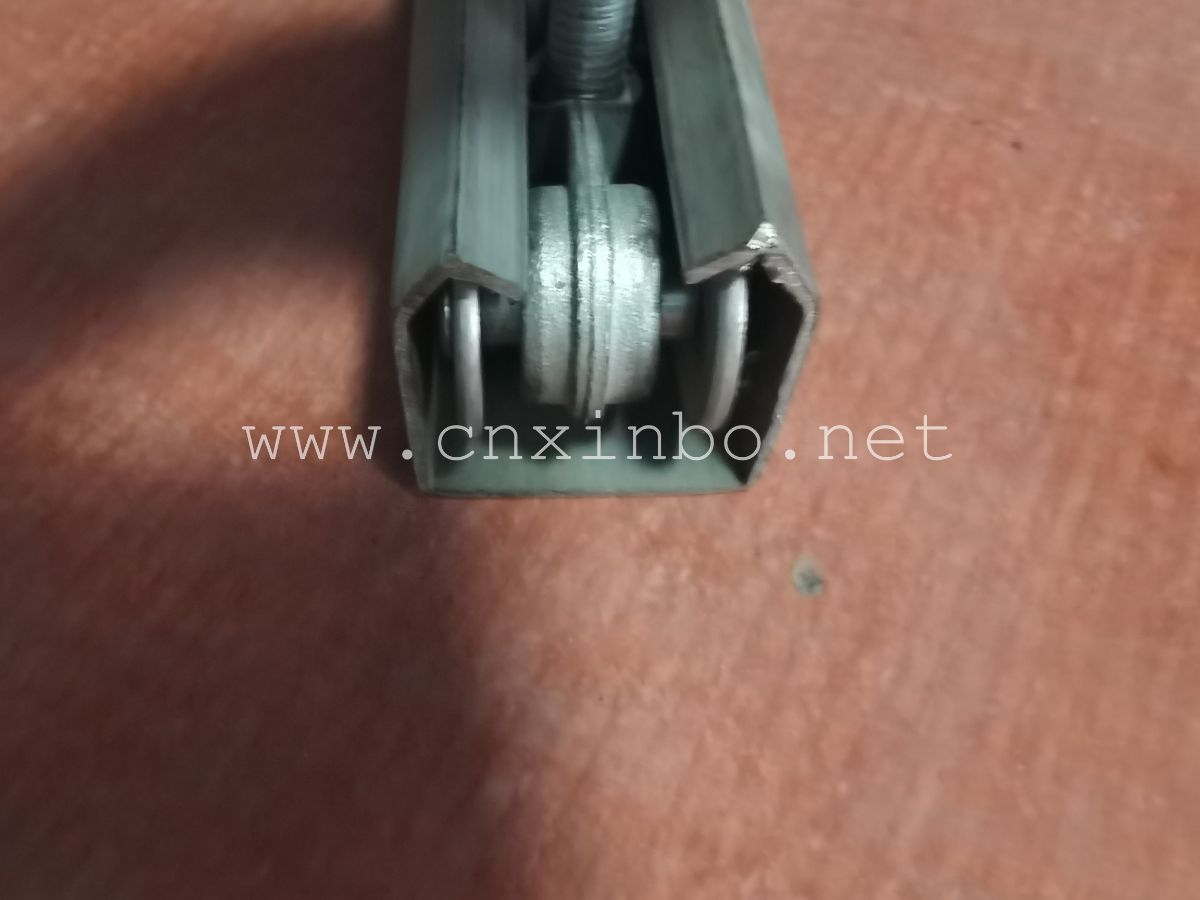

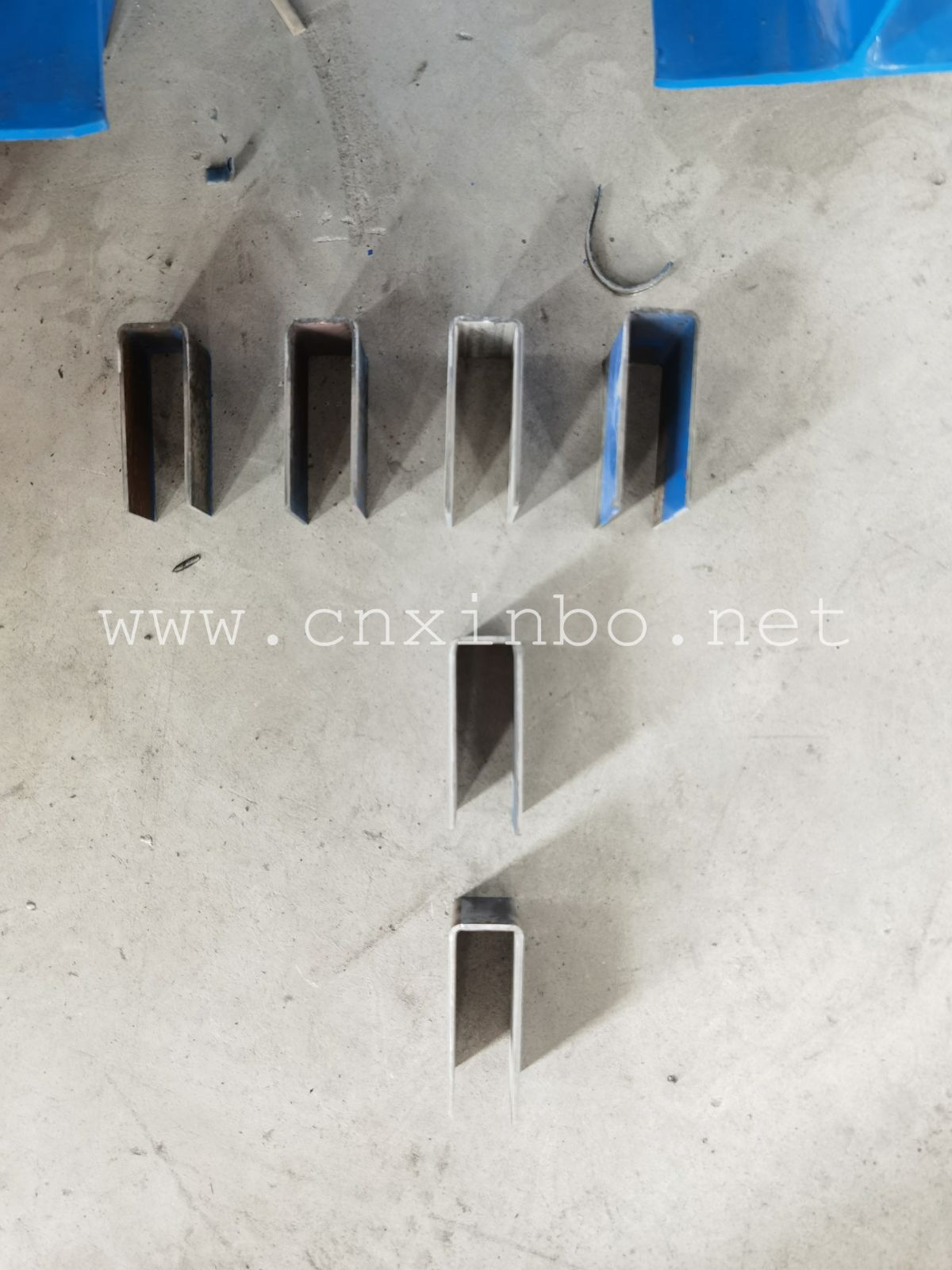

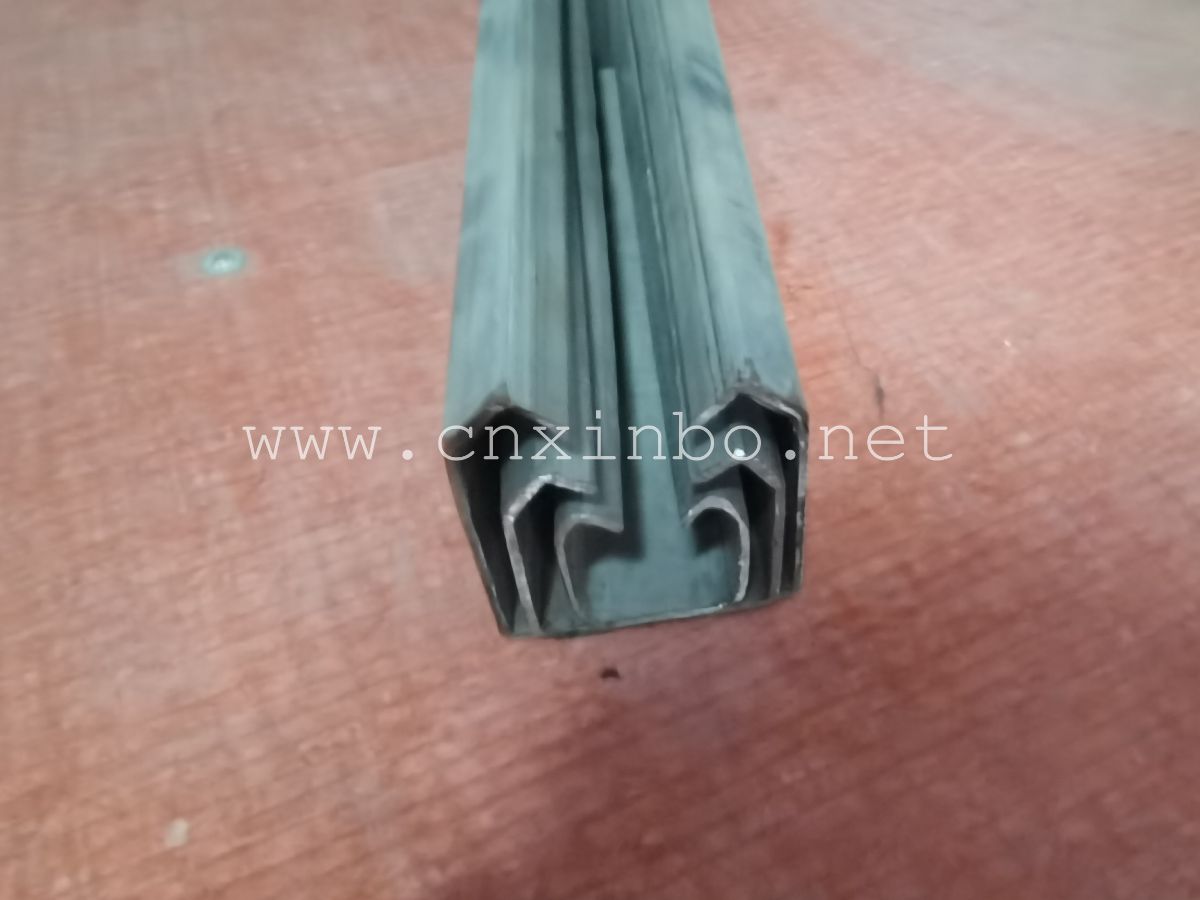

Shutter Door U Guiding Channel Roll Forming Machine

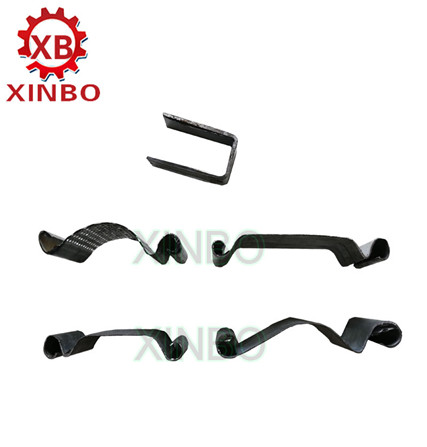

Widely working with shutter door panel together.

Have features such as nice appearance and durable.

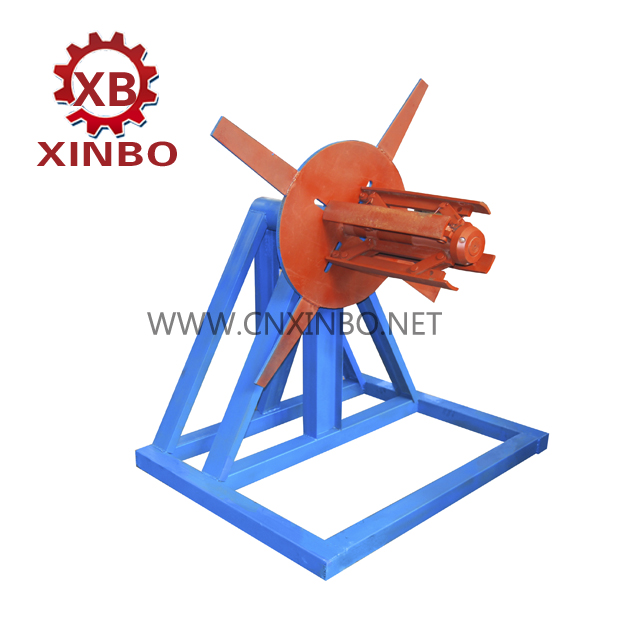

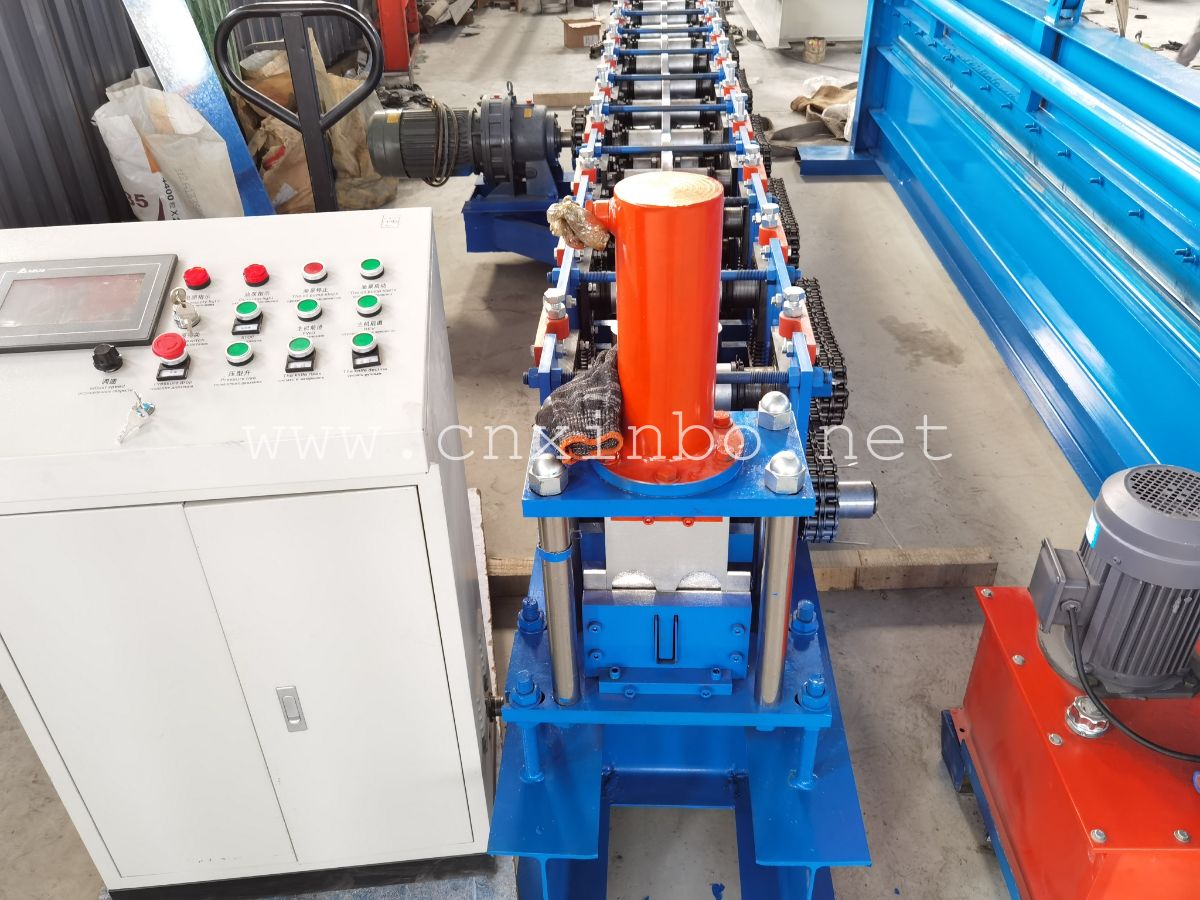

It is one complete automatic production line. It has decoiler–forming part–cutting part–computer part–receiving table part.

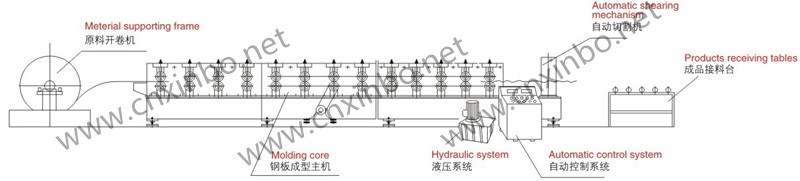

Working flow:

Parameter

No.

Item



1.

Processing Material

PPGI,GI,AL

2.

Input Width(mm)

As drawing

3.

Formed Width(mm)

As drawing

4.

Processing Thickness(mm)

1.0—3.0

5.

Material of Rollers

45# steel,with hard chrome coated

6.

Diameter of Shaft

Ф70-80mm

7.

Production Speed

0—15m/min

8.

Roller Driven

Decelerating Motor+Chain Transmission

9.

Cutting Model

Hydraulic Profile Cutting

10.

Length Measurement

Encoder

11.

Control Style

PLC control

12.

Total Power

4+3kw

13.

Voltage

380V 50HZ or at buyer’s request

Introduction of Components

Entry Beach

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

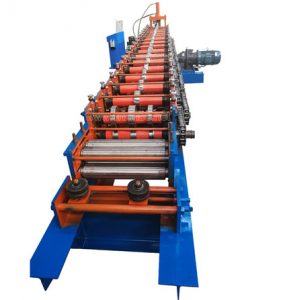

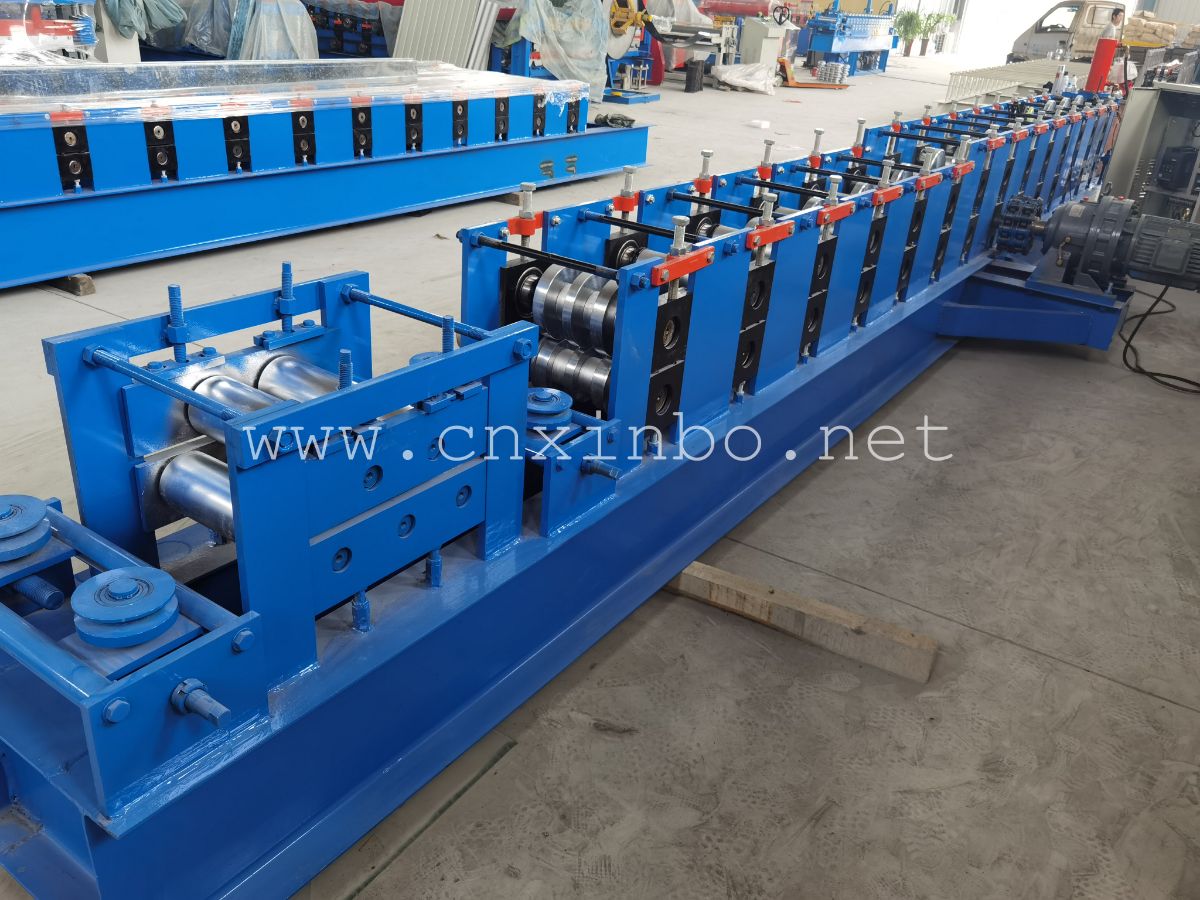

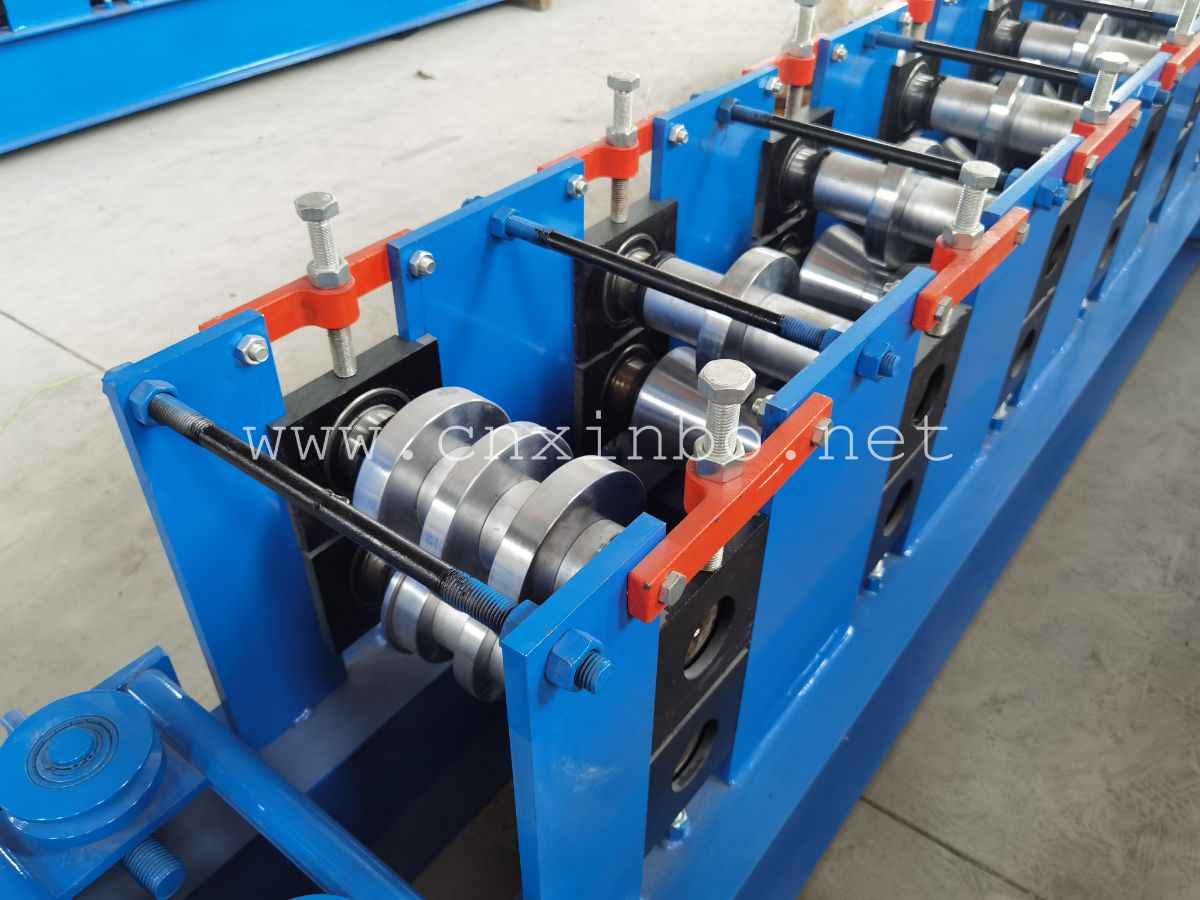

Main Roll Forming







In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Material of rollers:45# steel, surface hard chromium plating.

Main power: 4kw(cycloidal planetary gear speed reducer)

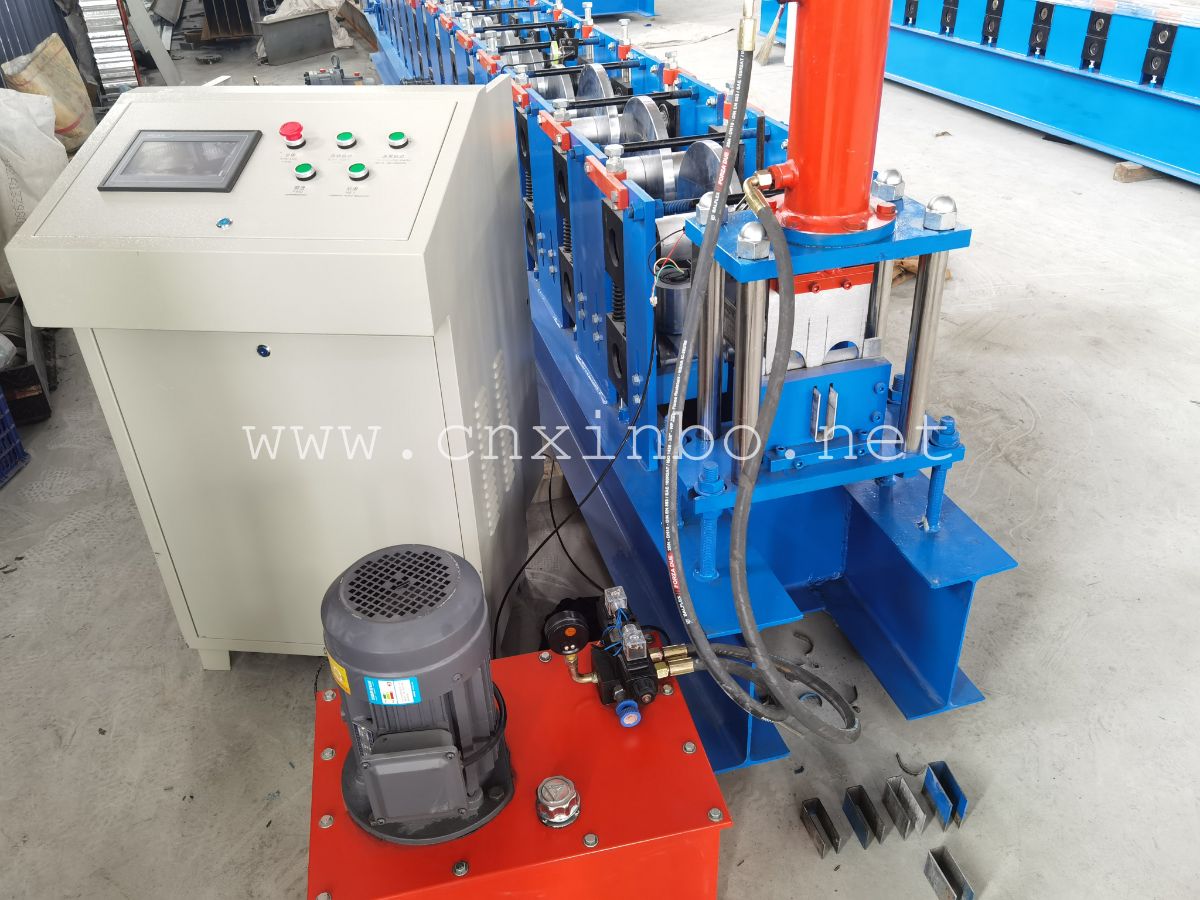

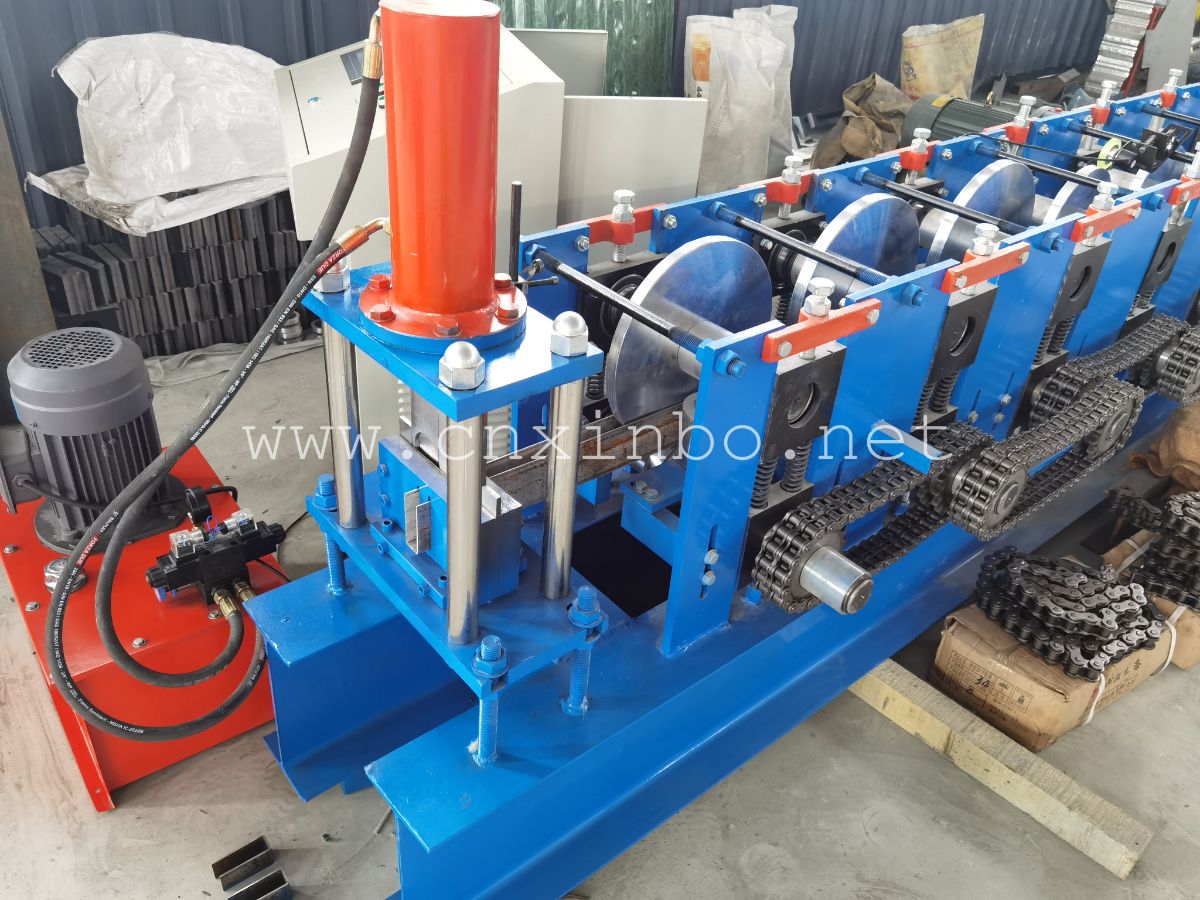

Hydraulic Station



It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Power:4kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

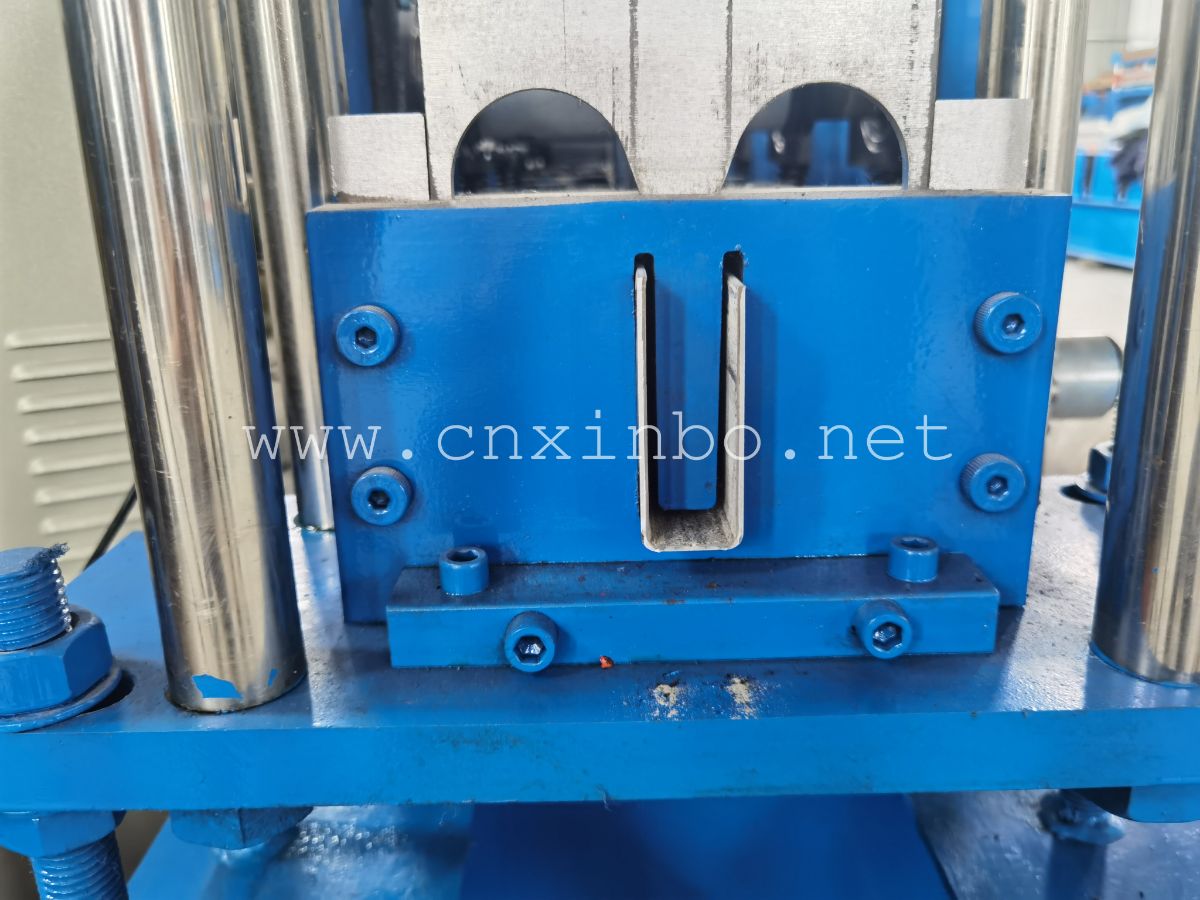

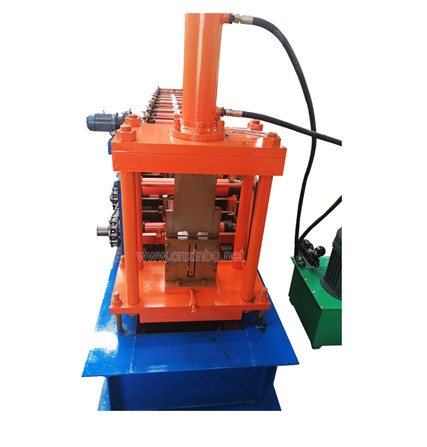

Cutting part





Cutting the different length as customer need

Computer Control Cabinet



It adopts PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
