Floor Decking Roll Forming Machine
Uses galvanized steel as raw material.

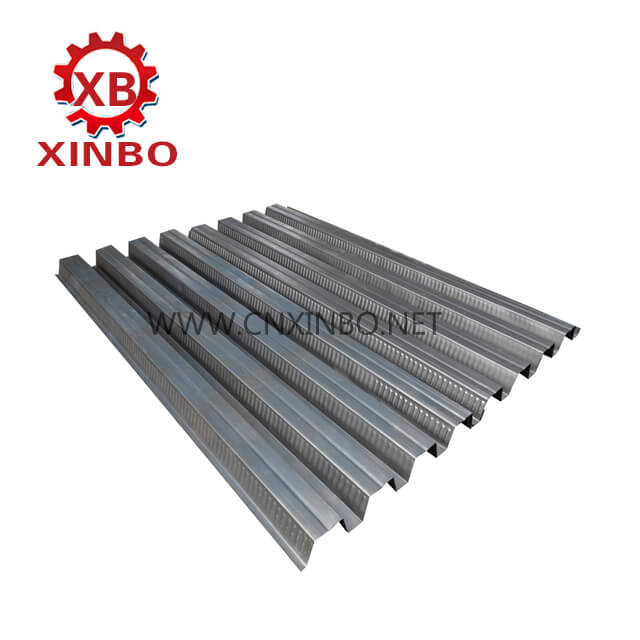

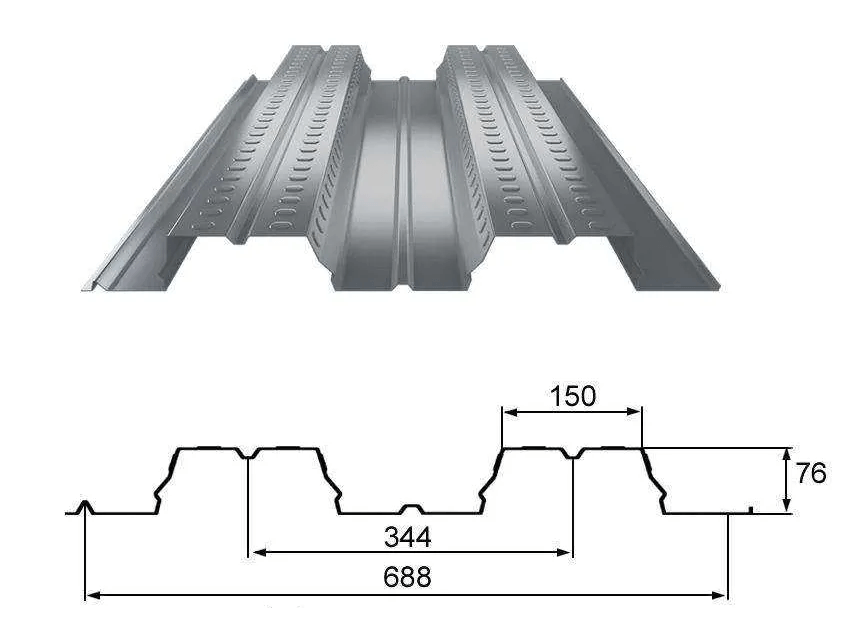

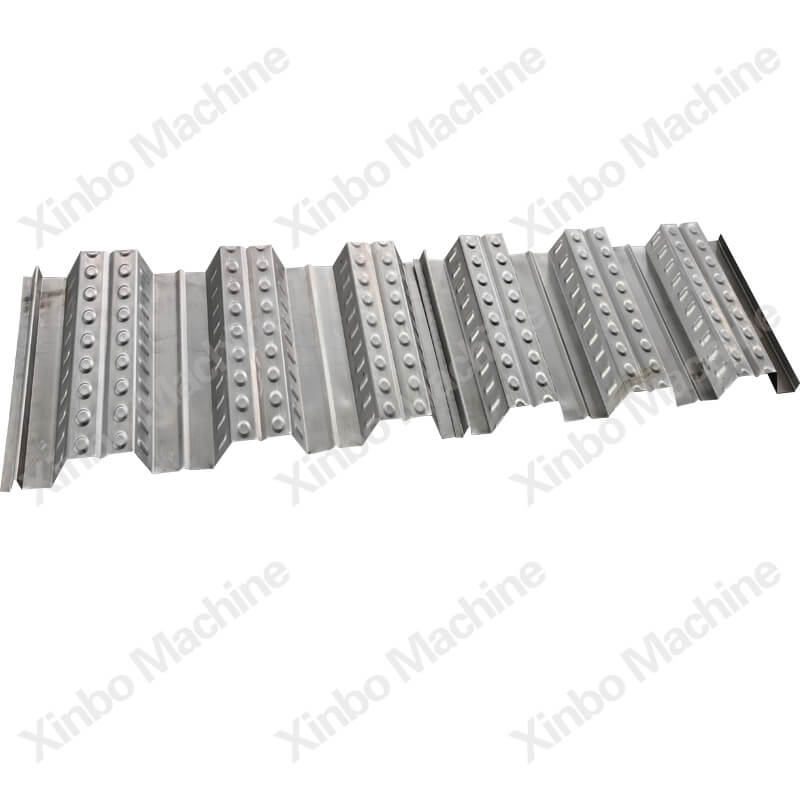

Used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes,

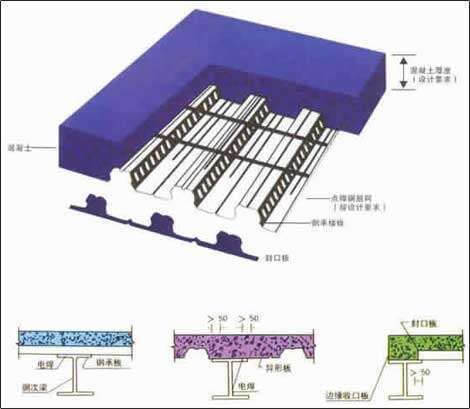

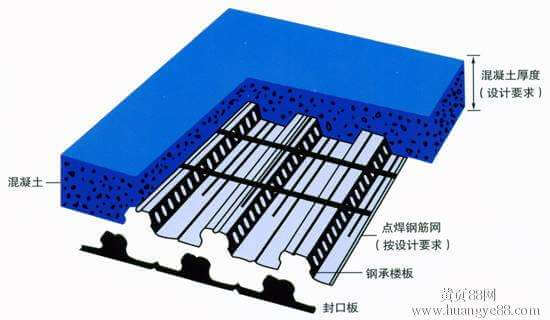

Mainly used to make permanent form-work composite slab or concrete slab.

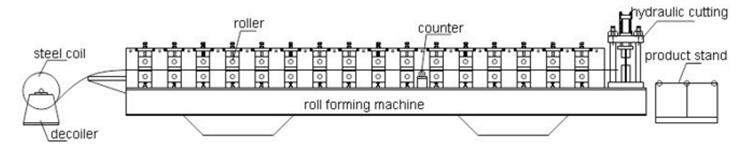

Working flow:
Technical specification:
|
Suitable to Process |
Galvanized sheet ; Iron sheet |
|
Width of raw material |
914/1000/1200/1220/1250mm as usual;customized |
|
Rollers |
customized |
|
Dimensions |
About 10000*1550*1300mm |
|
Power |
7.5+4kw |
|
Thickness of sheet |
0.8—1.0mm as usual;customized |
|
Material of cutting blade |
Cr12 |
|
Diameter of the roller |
customized |
|
Voltage |
380V, 50Hz, 3 phrases;customized |
|
weight |
About 8T |
|
Productivity |
10—-12m/min |
|
Control system |
Automatically controlled by computer |

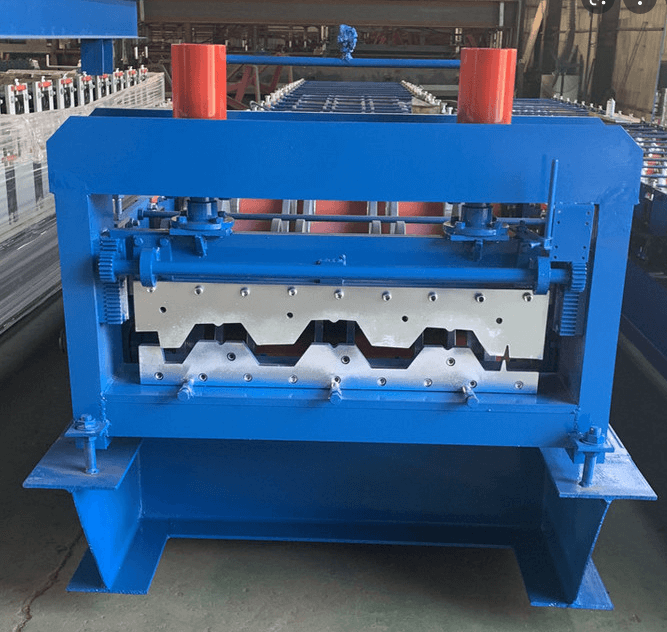

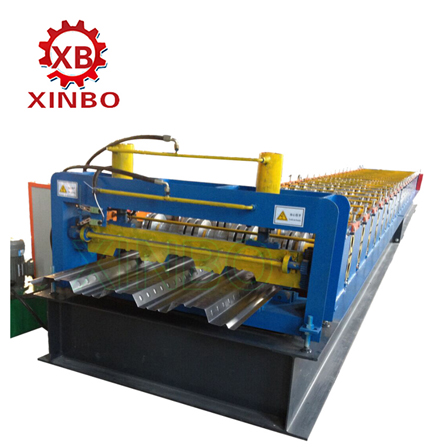

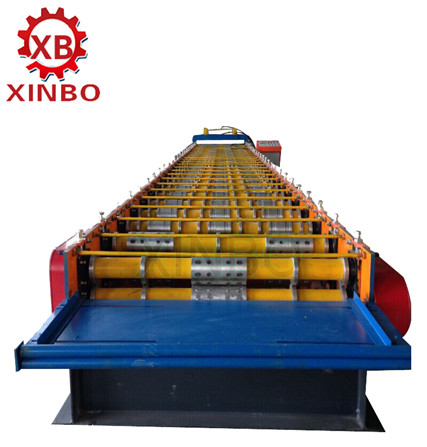

Machine details display

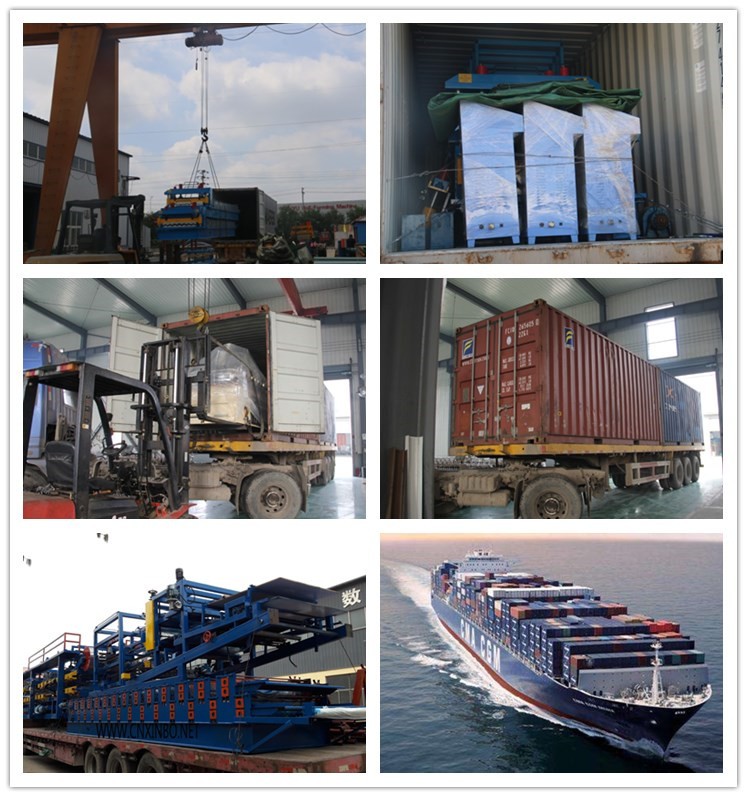

Our services
This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to help install and teach workers operation in customer factory.
