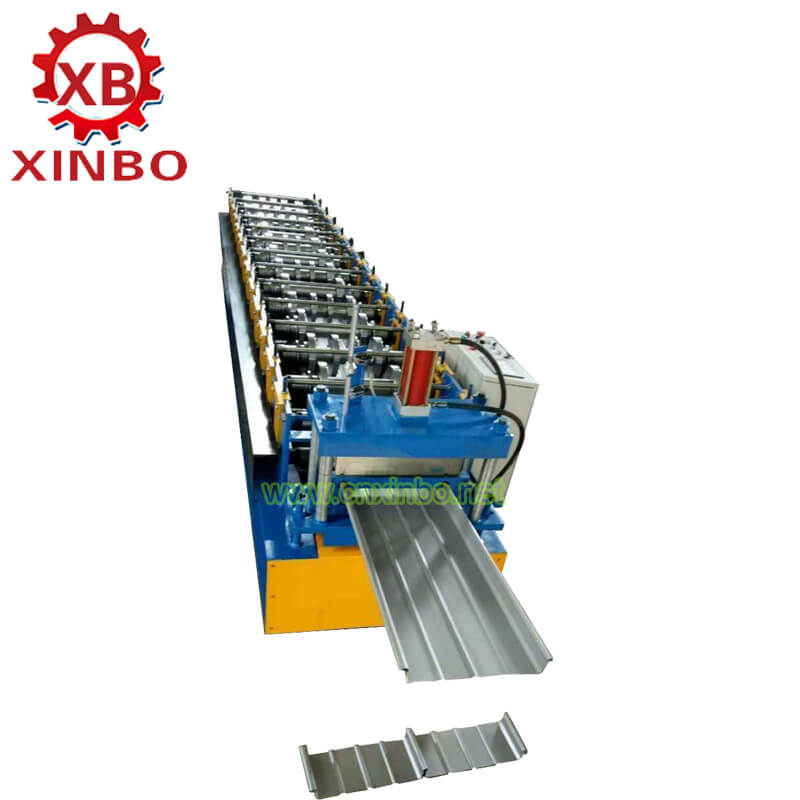

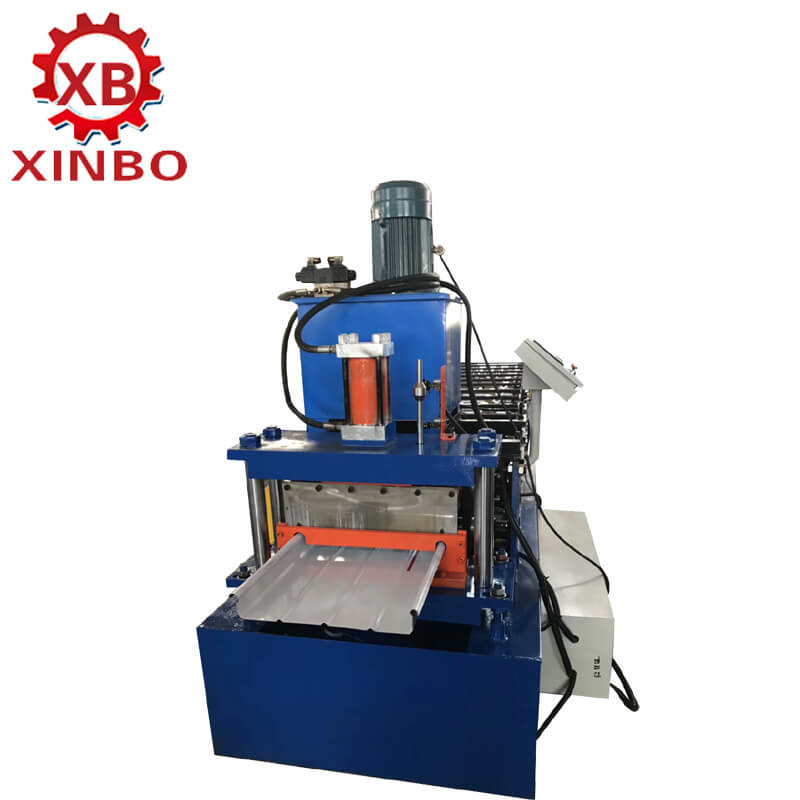

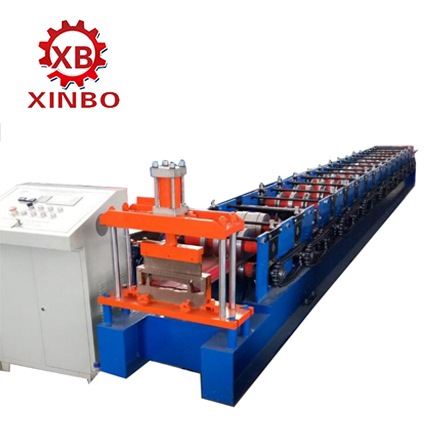

Standing Seam Roof Panel Roll Forming Machine

standing beam roof panel roll forming machine:
1. Electric elements: Mitsubishi PLC & transducer from Japan.
2. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.
4. Cutter blade: Cr12 mould steel with quenched treatment
5. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.

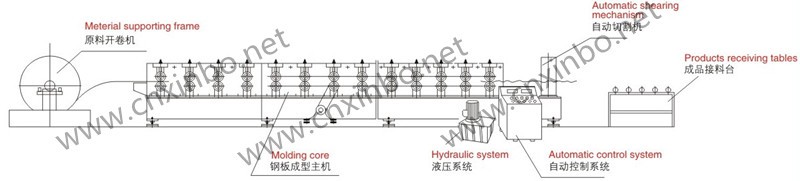

Working flow:

Technical specification:

Suitable to Process

Color steel sheet ;  Galvanized sheet ;  Iron sheet

Width of raw material

customized

Rollers

customized

Dimensions

About 7500*1000*1200mm

Power

4+4kw

Thickness of sheet

0.3-0.8mm as usual;

customized

Material of cutting blade

Cr12

Diameter of the roller

customized

Voltage

380V, 50Hz, 3 phrases;

customized

weight

About3.8T

Productivity

10—-15m/min

Control system

Automatically controlled by computer

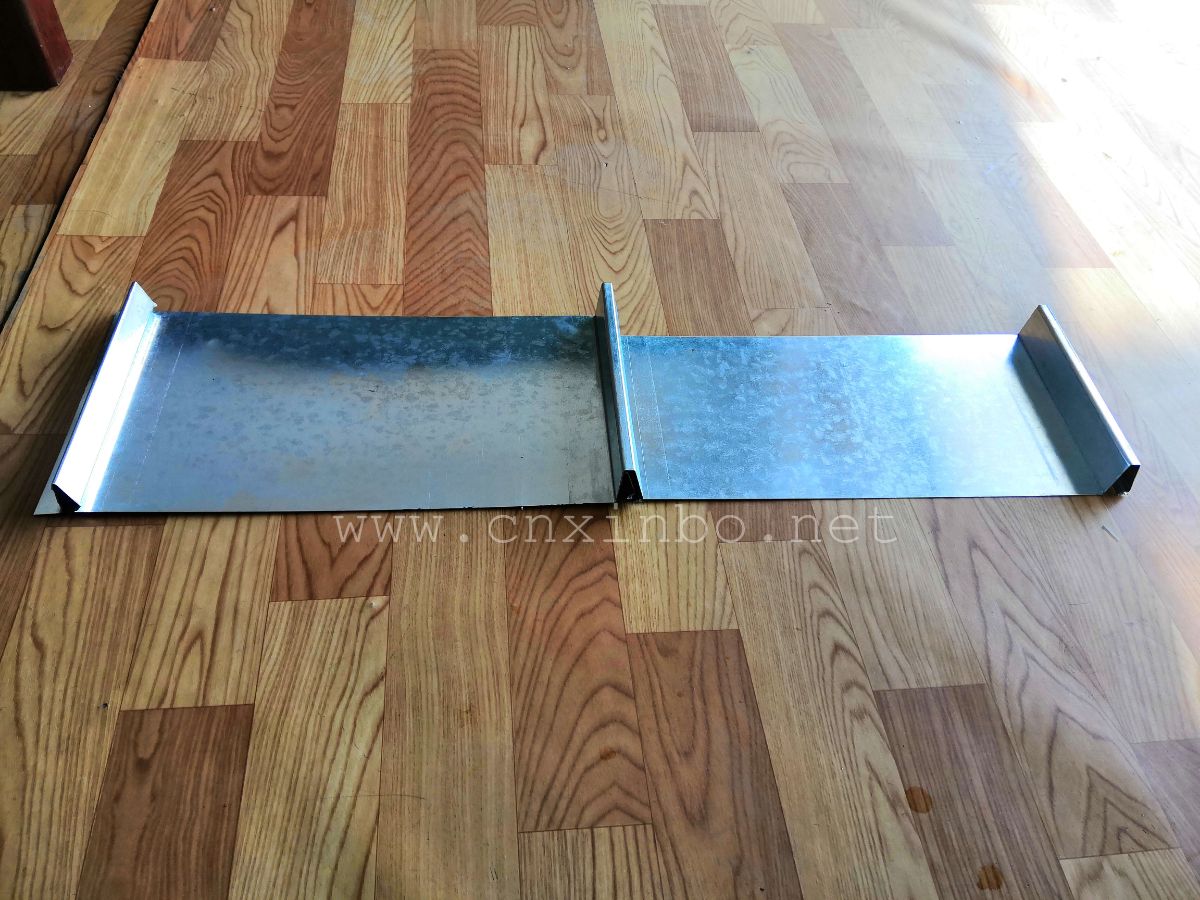

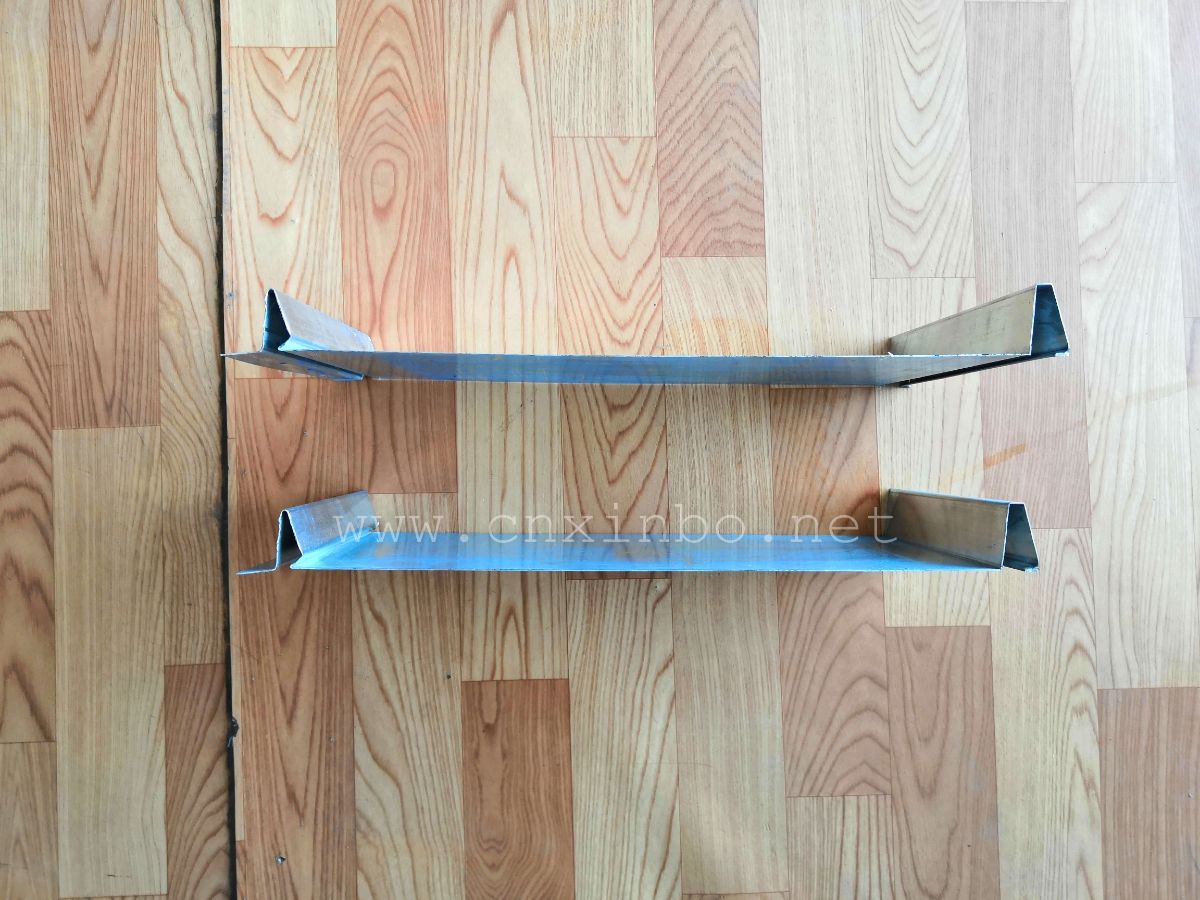

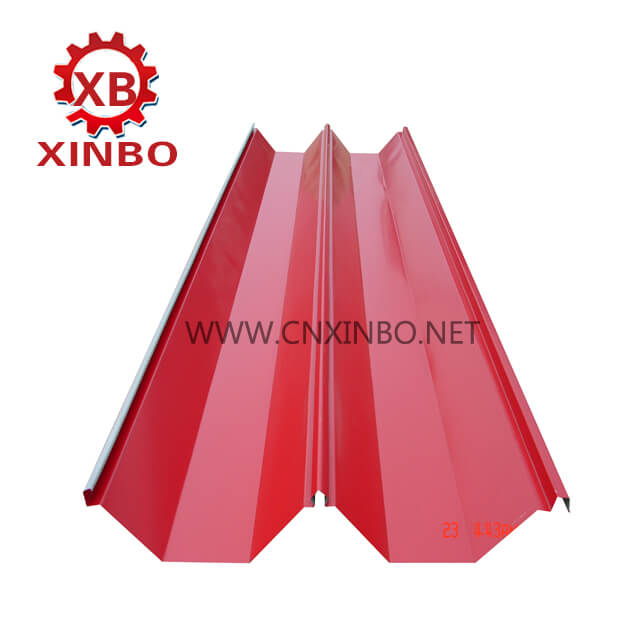

Application:

standing beam roof panel machine

standing beam roof panel machine

standing beam roof panel machine

standing beam roof panel machine

Our services

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to help install and teach workers operation in customer factory.
