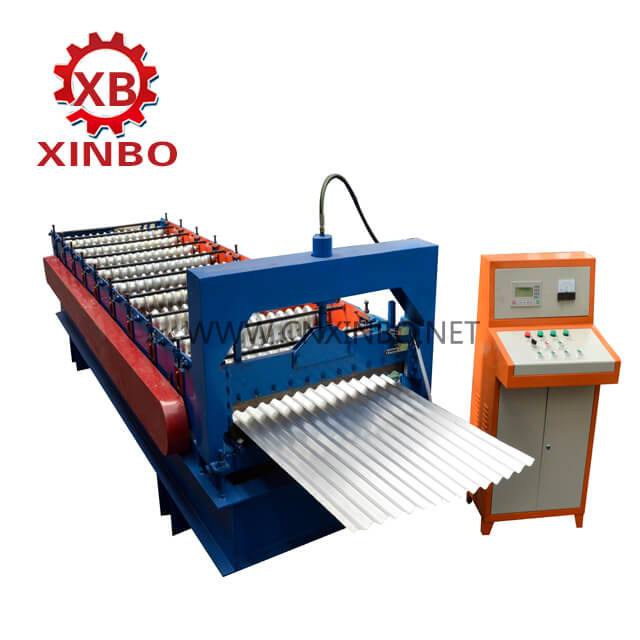

Corrugated Sheet Roll Forming Machine

corrugated roll forming machine for roof panel and wall panel.it makes the panel like waves. the machine can work with Galvanzied steel, color steel plate and Aluminium plates with different thickness from 0.3mm to 0.7mm. the machine is one complete line with automatic. the machine includes uncoiler-forming part-automatic cutting-computer part.

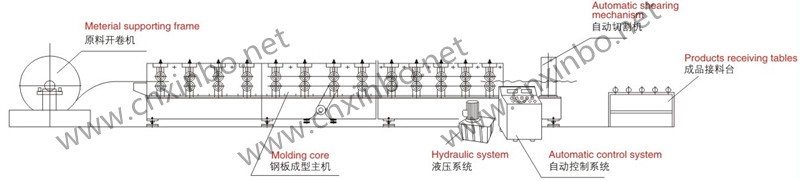

Working flow:

Technical specification:

Suitable to Process

Color steel sheet ;  Galvanized sheet ;  Iron sheet;  Aluminum sheet

Width of raw material

914/1000/1200/1220/1250mm as usual;

customized

Rollers

customized

Dimensions

About 7500*1550*1200mm

Power

4+4kw

Thickness of sheet

0.3-0.8mm as usual;

customized

Material of cutting blade

Cr12

Diameter of the roller

customized

Voltage

380V, 50Hz, 3 phrases;

customized

weight

About 4.1T

Productivity

10—-15m/min

Control system

Automatically controlled by computer

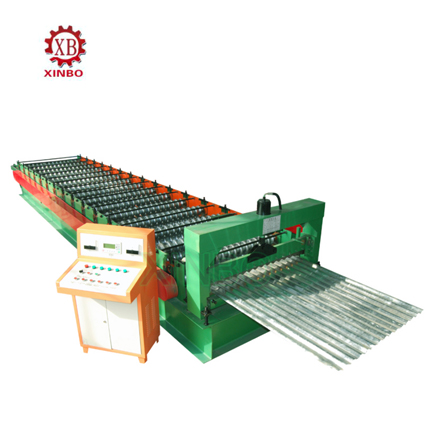

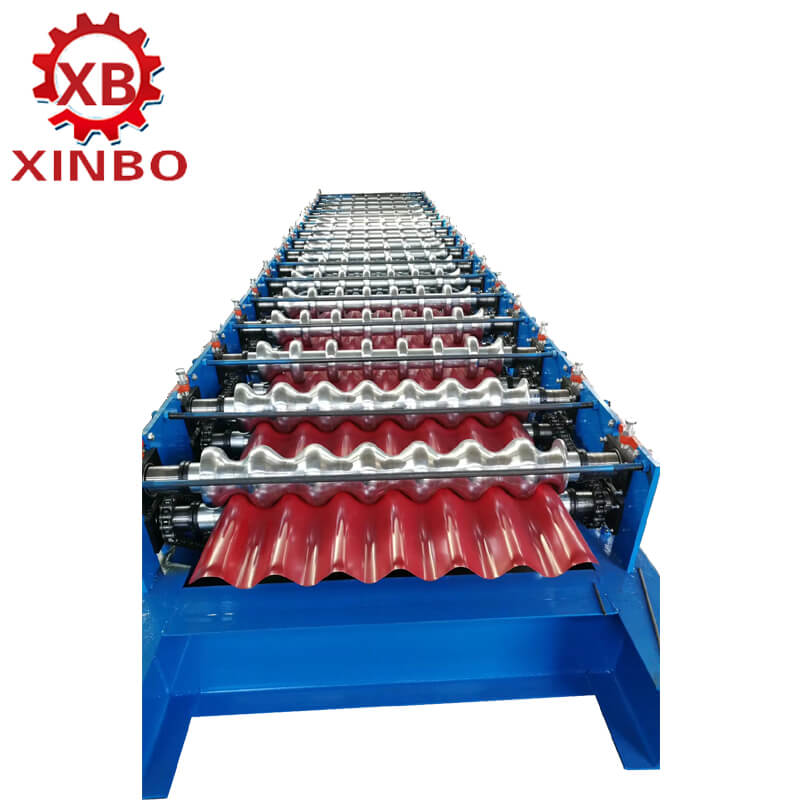

Machine details display:

Application:

Our services:

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to help install and teach workers operation in customer factory.
