Stud and track omega roll forming machine

1.Factory To Your Door
2.MOQ:Only 1 Piece
3.OEM*ODM Service
4.Suitable For Roofing, Siding,Wall Cladding

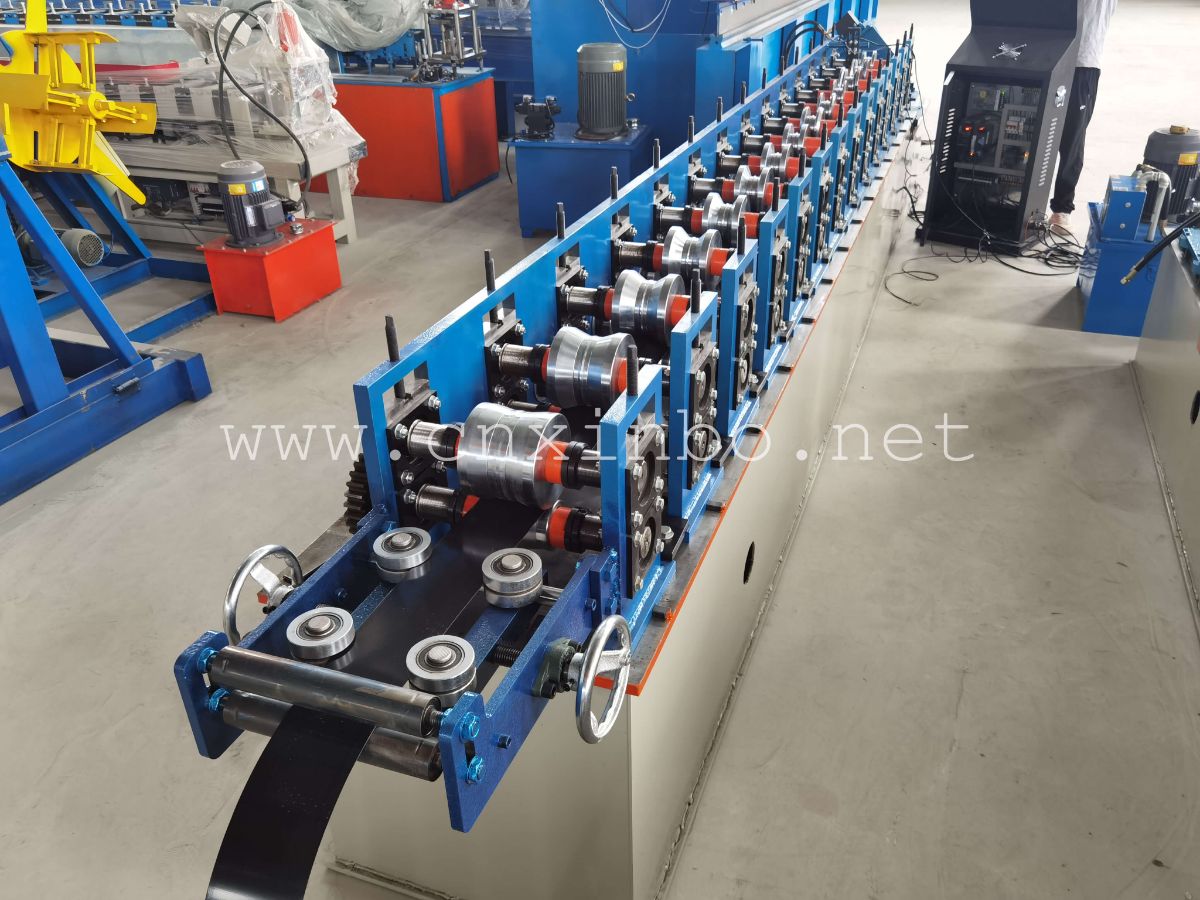

Stud and track omega roll forming machine

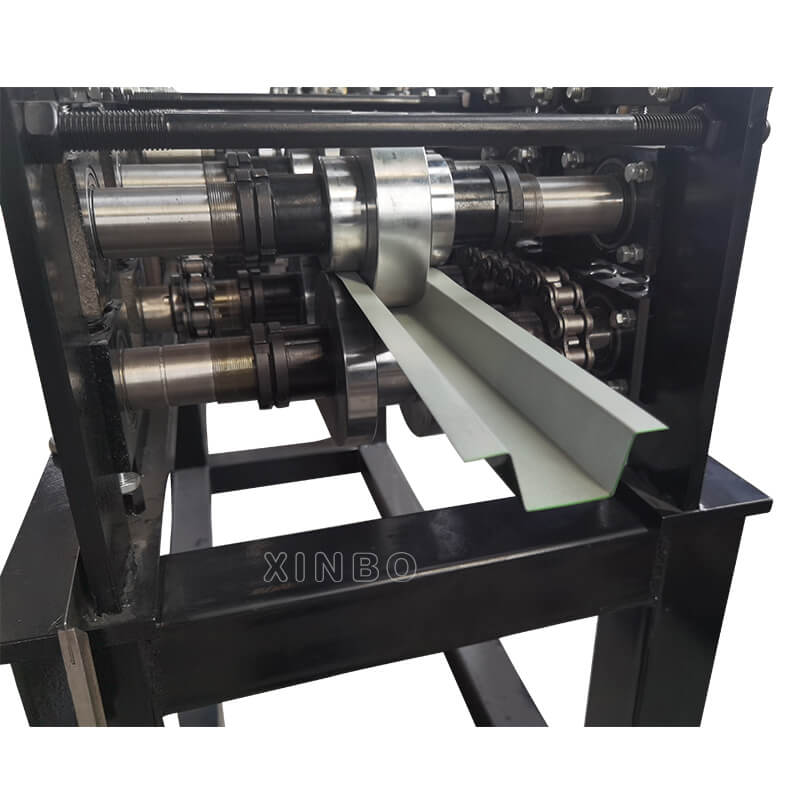

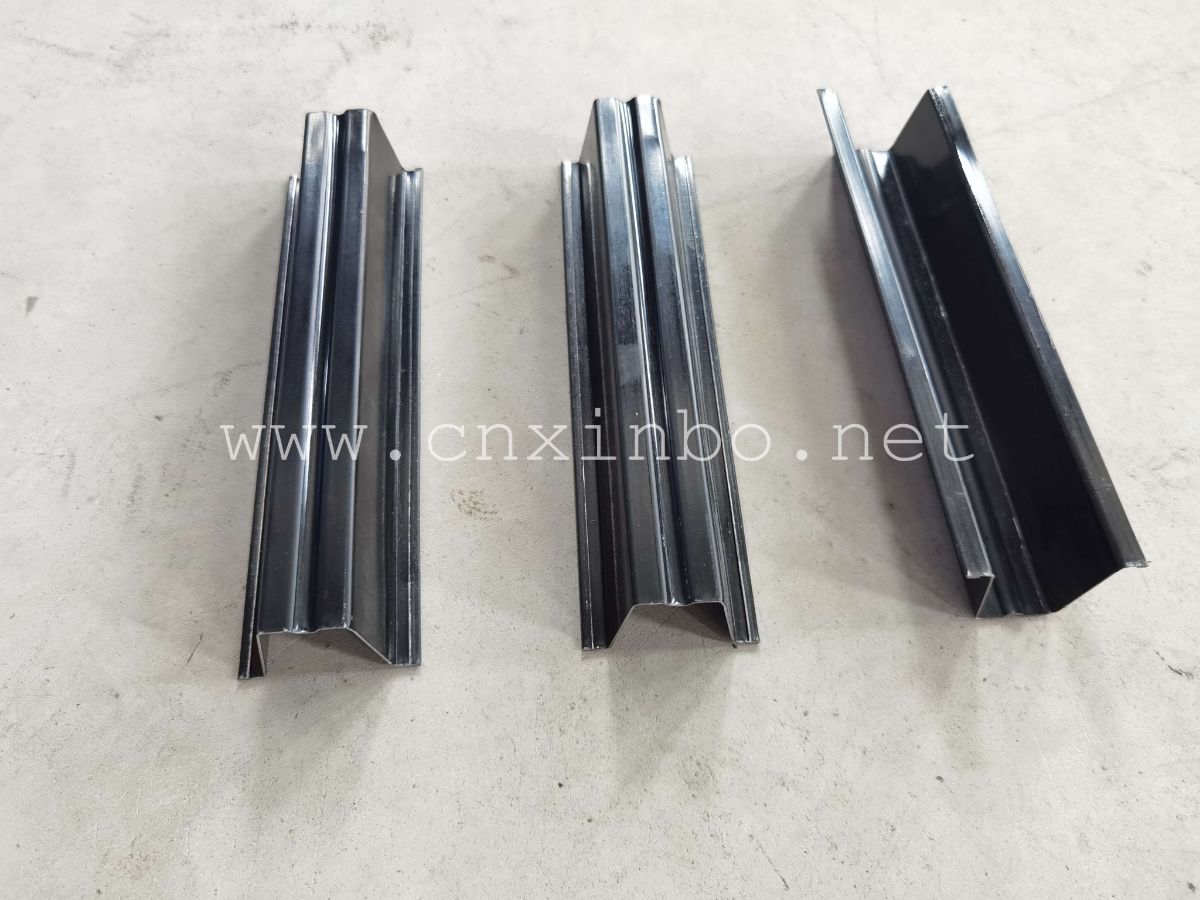

Omega machine is a kind of keel machine, which is mostly used to make studs and tracks of house frames.
Keel machine takes strip steel as raw material, through continuous cold rolling forming, to produce complex sectional profile products.

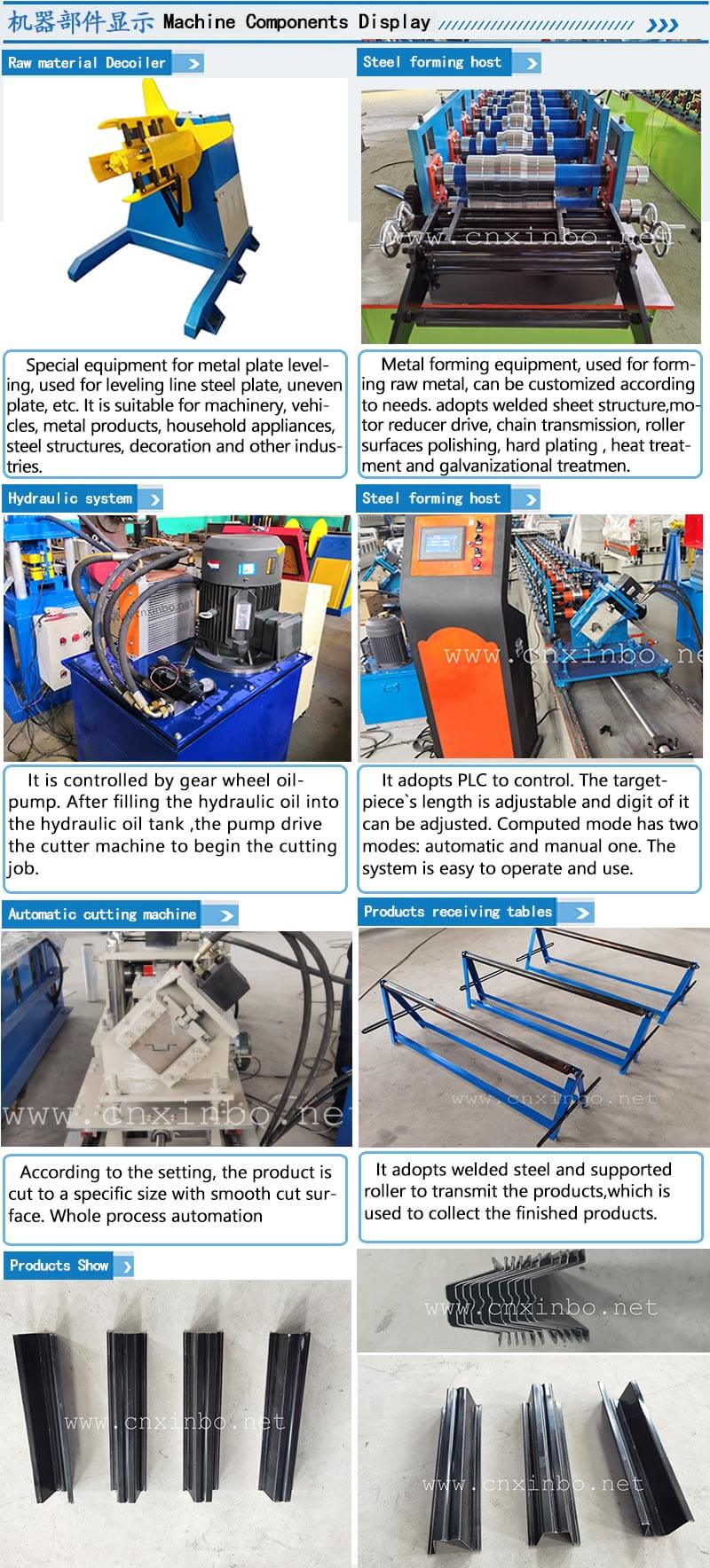

The keel machine is mainly composed of three parts: the filling steel plate, the forming and the post forming cutting. The appearance of the products manufactured for pressing the tiles meets the requirements of bright appearance, texture scratch, high strength and long service life. Its application areas are especially large, such as factory decoration, warehouse cage The roofs and new walls of the locomotive hangar are all made of the corresponding products used to press the tiles. The products used to press the tiles are leftovers determined to be used for the decoration of the steel structure workshop. The main equipment, computer control system, hydraulic pump and automatic post shearing equipment are the major components of the keel synthesis machine. The keel machine parts adopt high-level automatic control software, so the manufacturing information management. The keel machine also has the advantages of operation tutorial, maintenance, regular maintenance, equipment debugging, easy mold replacement, etc.

No.

Item

Speccification

1.

Processing Material

GI.Black steel.Al

2.

Input Width(mm)

As designing

3.

Formed Width(mm)

As customer drawings

4.

Processing Thickness(mm)

0.8-1.2mm

5.

Material of Rollers

45# steel,with hard chrome coated

6.

Diameter of Shaft

Ф70-80mm

7.

No.of rollers

13

8.

Production Speed

0-15m/min

9.

Roller Driven

Decelerating Motor+gear+Chain

Transmission

10.

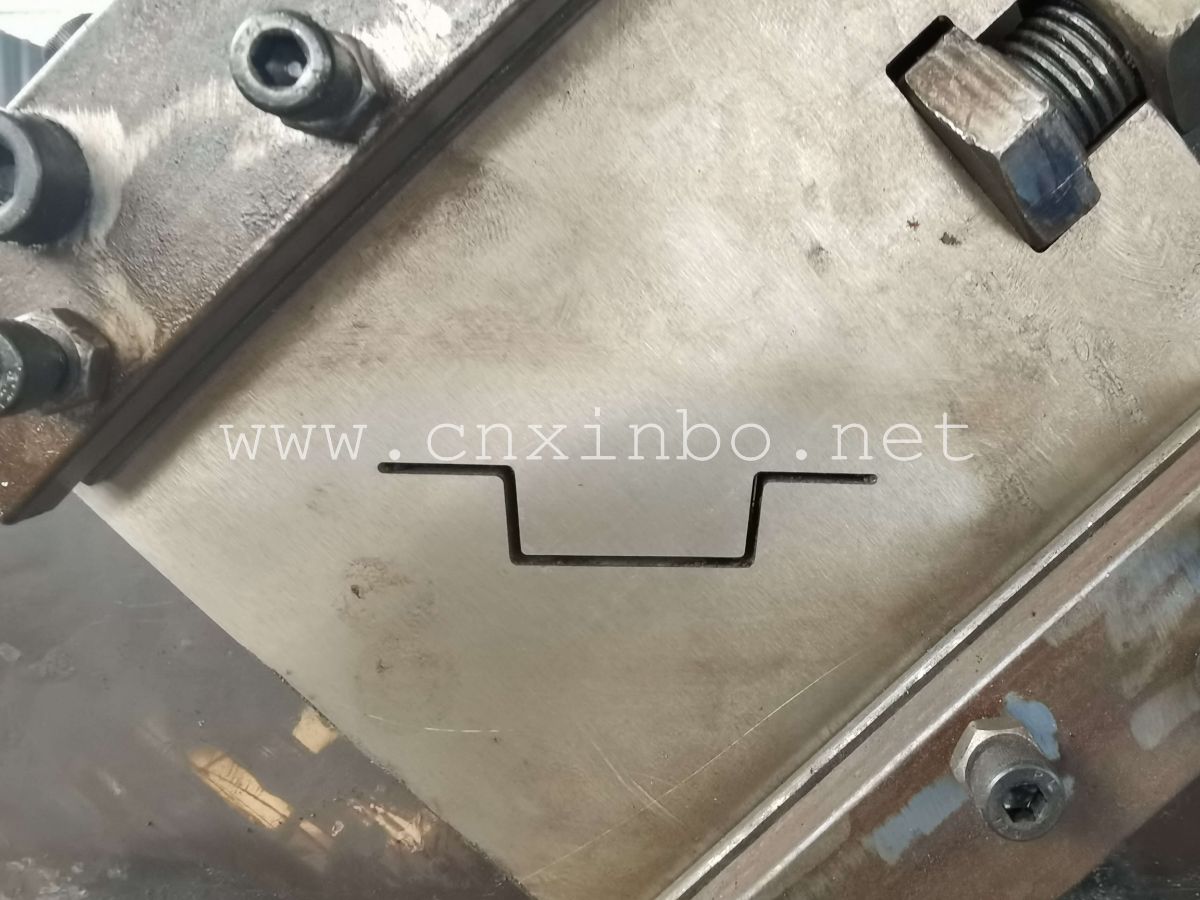

Cutting Model

Hydraulic Profile Cutting

11.

Length Measurement

Encoder

12.

Control Style

PLC

13.

Operation Model

Button+ screen

14.

Total Power

5.5KW

14.

Voltage

380V 50HZ or at buyer’s request
