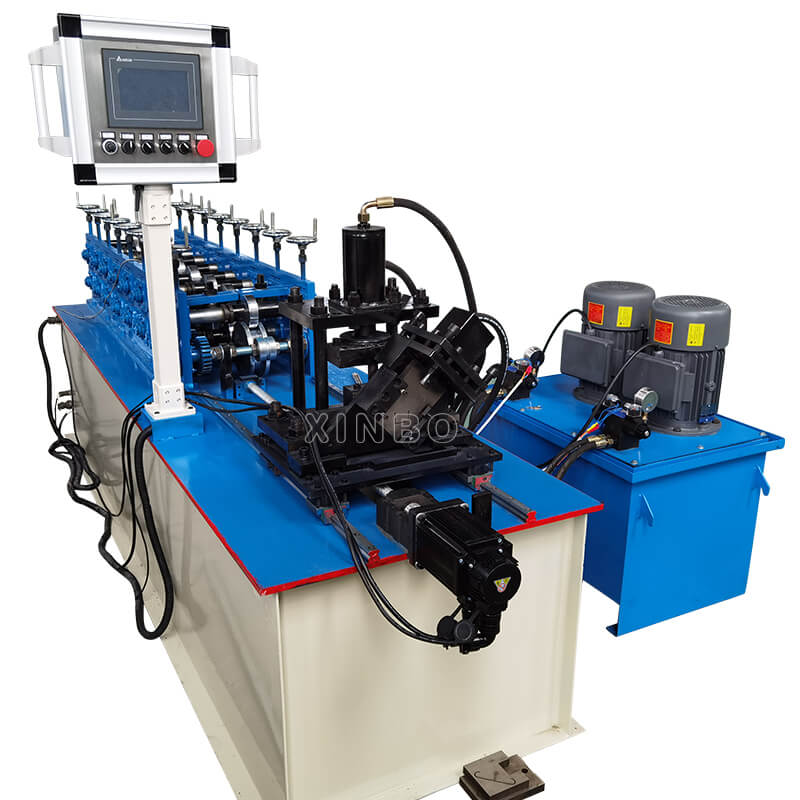

C U light keel machine

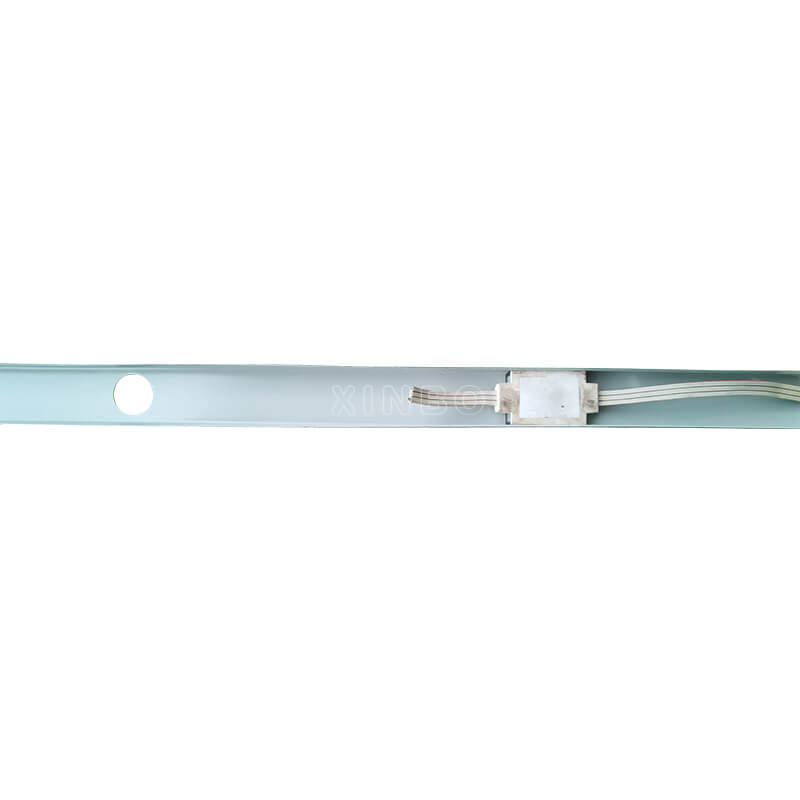

Keel machine takes strip steel as raw material, through continuous cold rolling forming, to produce complex sectional profile products.
Processing technology of keel machine: placing – guiding – rolling forming – cutting – receiving
Keel machine equipment composition: blanking machine, guide frame, forming host, correction device, fixed length cutting part, receiving platform, electrical control part, etc.
|
No. |
Item |
Specification |
|
1. |
Processing Material |
GI.Black steel.Al |
|
2. |
Input Width(mm) |
As designing |
|
3. |
Formed Width(mm) |
As customer drawings |
|
4. |
Processing Thickness(mm) |
0.8-1.2mm |
|
5. |
Material of Rollers |
45# steel,with hard chrome coated |
|
6. |
Diameter of Shaft |
Ф70-80mm |
|
7. |
No.of rollers |
13 |
|
8. |
Production Speed |
0-15m/min |
|
9. |
Roller Driven |
Decelerating Motor+gear+Chain Transmission |
|
10. |
Cutting Model |
Hydraulic Profile Cutting |
|
11. |
Length Measurement |
Encoder |
|
12. |
Control Style |
PLC |
|
13. |
Operation Model |
Button+ screen |
|
14. |
Total Power |
5.5KW |
|
14. |
Voltage |
380V 50HZ or at buyer’s request |
