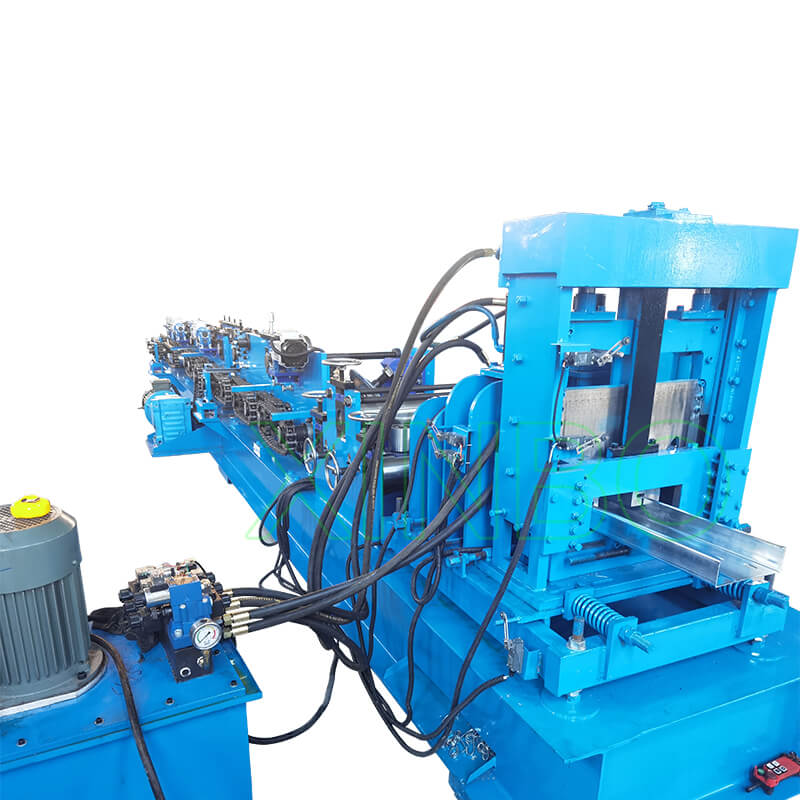

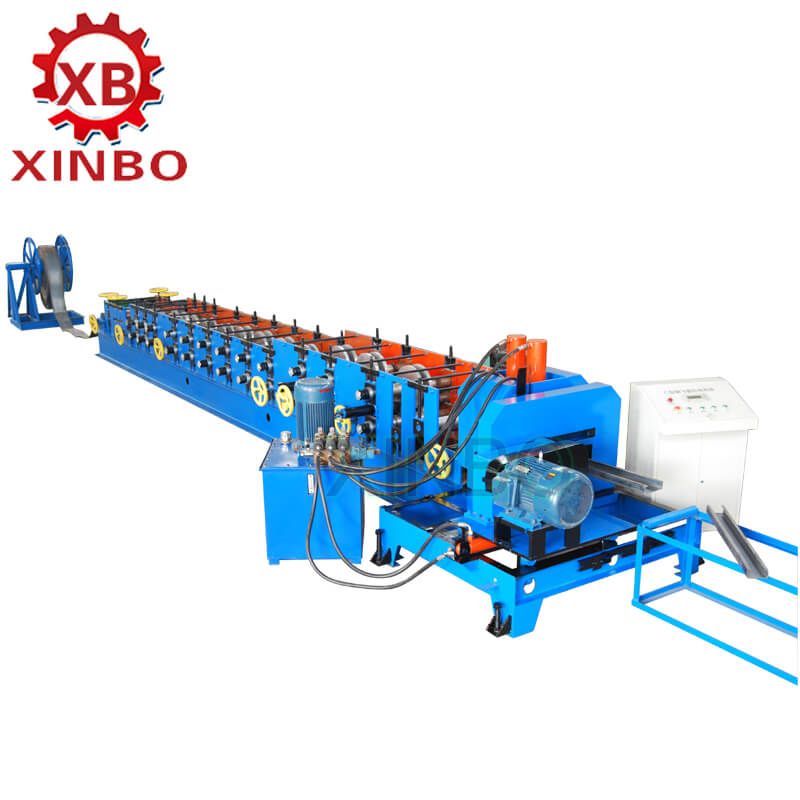

U channel rolling forming machine
The U channel rolling forming machine is equipped with advanced technology and features that enable it to perform various tasks seamlessly. It is capable of rolling metal sheets into U-shaped channels of different sizes and thicknesses. The machine is highly adjustable, allowing for easy customization according to specific requirements.
|
No. |
Item |
Specification |
|
1. |
Processing Material |
PPGI,GI,AL |
|
2. |
Formed Width(mm) |
As drawing |
|
3. |
Processing Thickness(mm) |
1-1.5 |
|
4. |
Material of Rollers |
45# steel,with hard chrome coated |
|
5. |
Diameter of Shaft |
Ф80mm |
|
6. |
Production Speed |
0—15m/min |
|
7. |

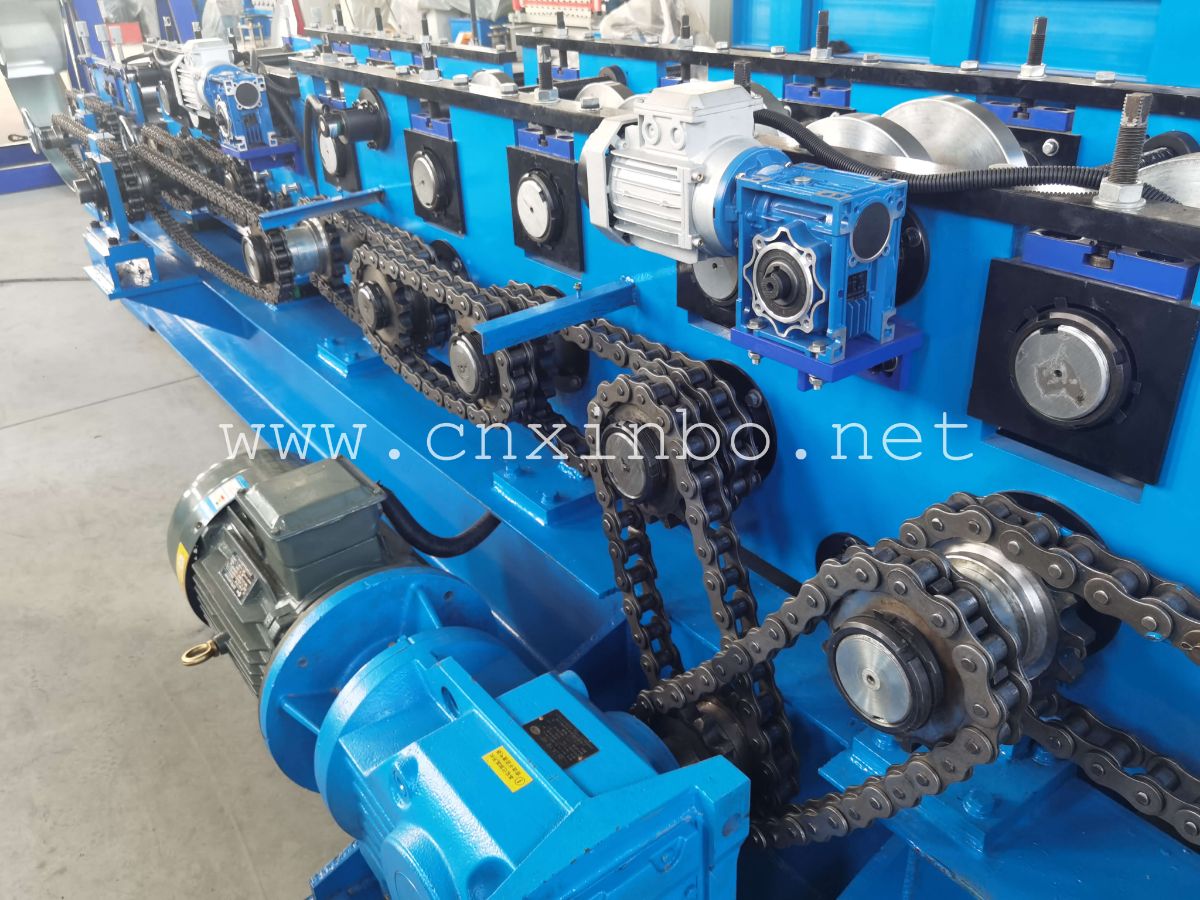

Roller Driven |
Decelerating Motor+Chain Transmission |
|
8. |
Cutting Model |
Hydraulic Profile Cutting |
|
9. |
Length Measurement |
Encoder |
|
10. |
Control Style |
PLC control |
|
11. |
Total Power |
5.5KW |
|
12. |
Voltage |
380V 50HZ or at buyer’s request |
