c z purlin roll forming machine full automatic

1.Factory To Your Door
2.MOQ:Only 1 Piece
3.OEM*ODM Service
4.Suitable For Roofing, Siding,Wall Cladding

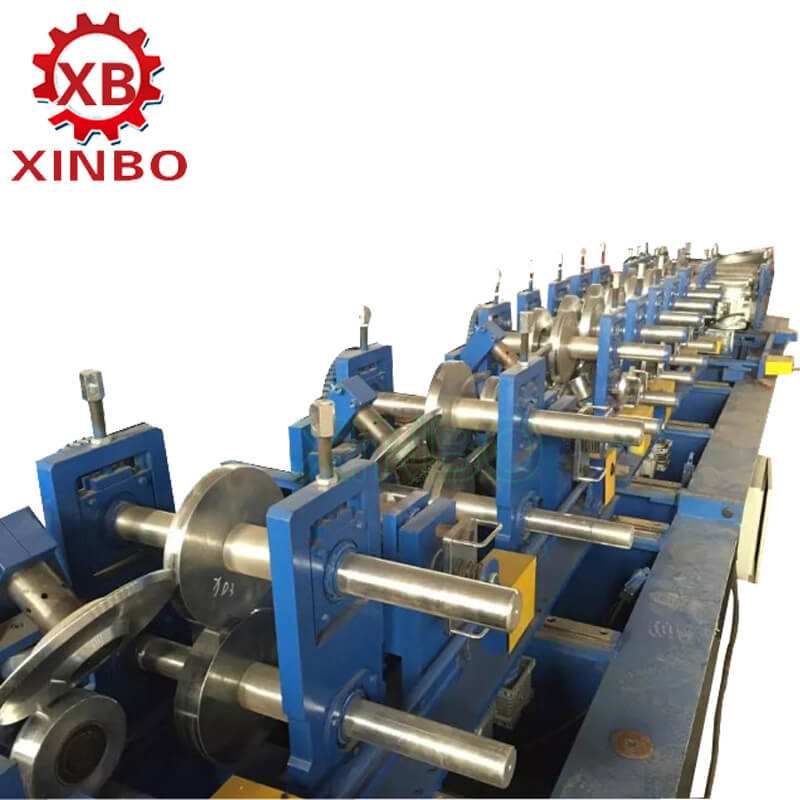

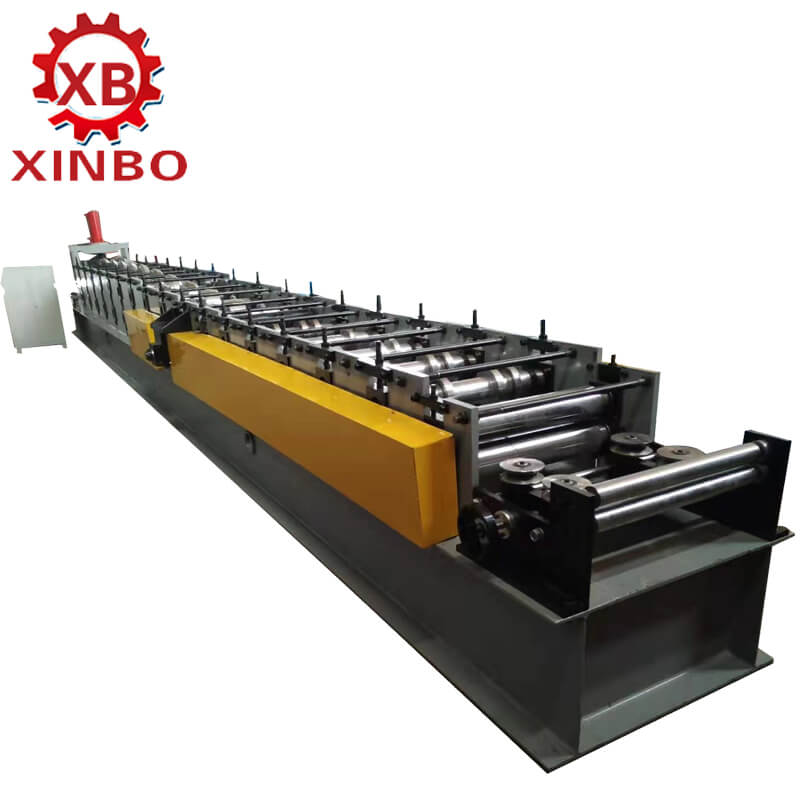

c z purlin roll forming machine full automatic

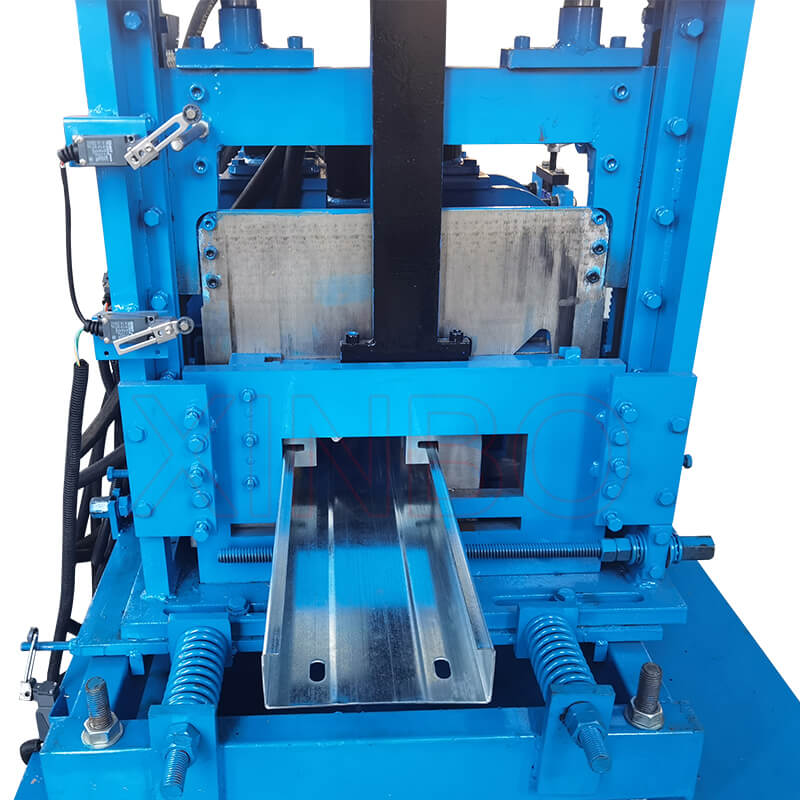

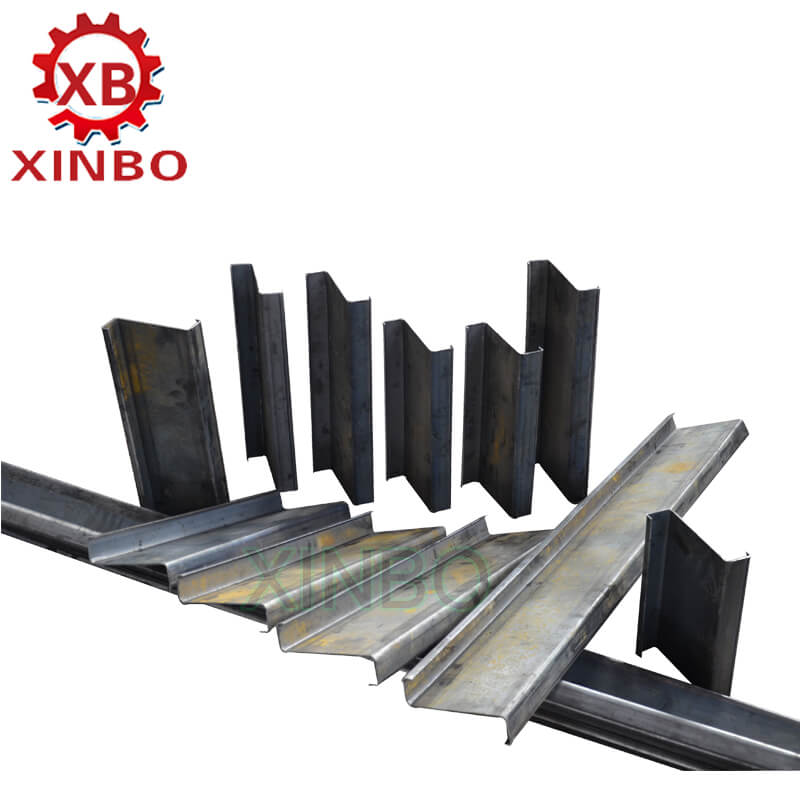

CZ purlin machine is a kind of interchangeable production line. It is mainly used to make C-shaped or Z-shaped purlins after punching, leveling, cold bending, forming, length fixing and cutting of hot and cold rolled steel strips. Two types of conversion and specification adjustment can be realized through relevant adjustment, including manual adjustment and automatic adjustment.
advantage:

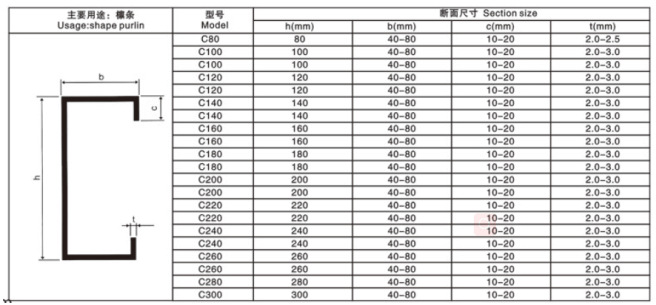

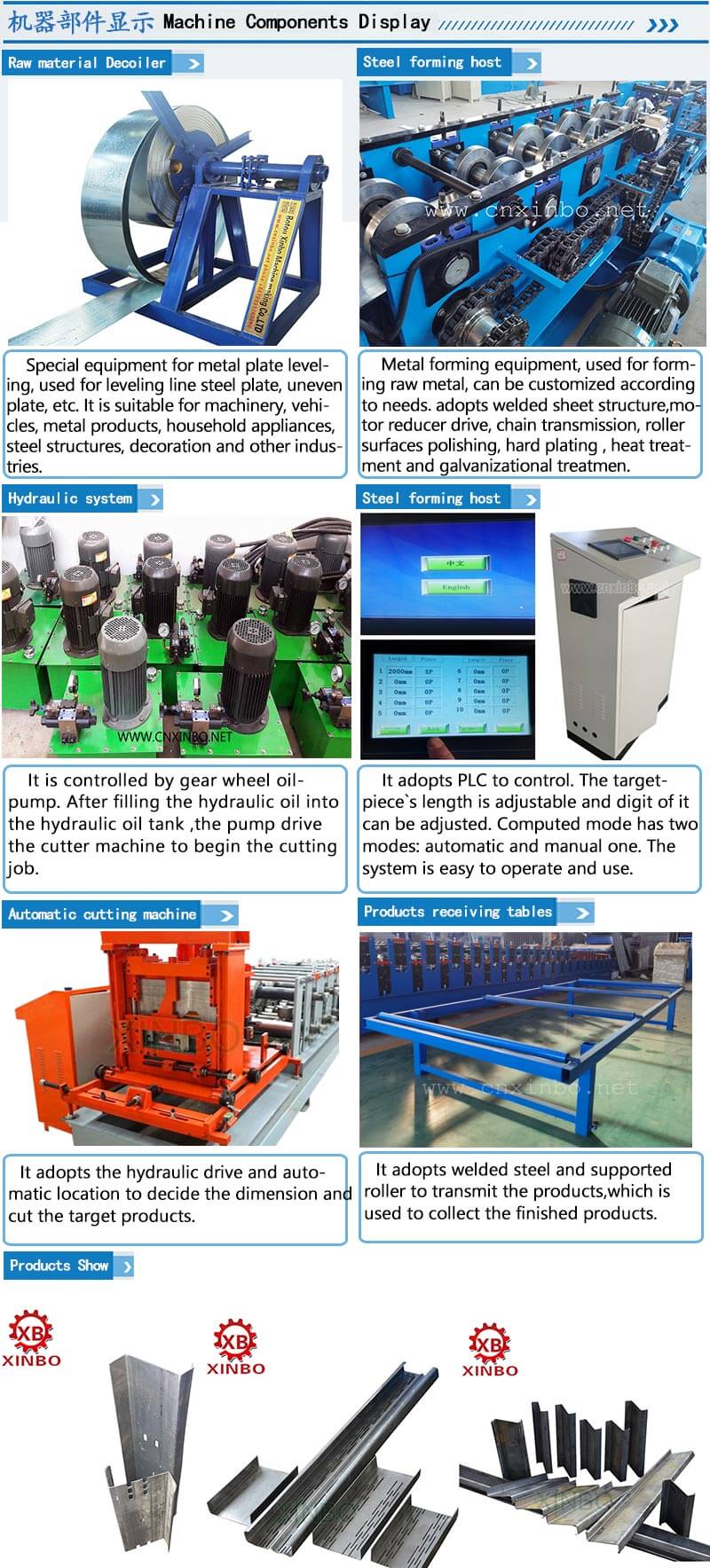

CZ purlin machine can produce purlins of various specifications. It is mainly composed of passive loading frame, punching device leveling device, cutting device after forming, and hydraulic station of computer control system. It is very convenient to operate. The products produced by this equipment have very thin wall thickness, and the production process is very simple. It can improve the production efficiency and improve the appearance and quality of products at the same time.

No.

Item

Specification

1.

Processing Material

PPGI,GI,AL

2.

Formed Width(mm)

As drawing

3.

Processing Thickness(mm)

1-1.5

4.

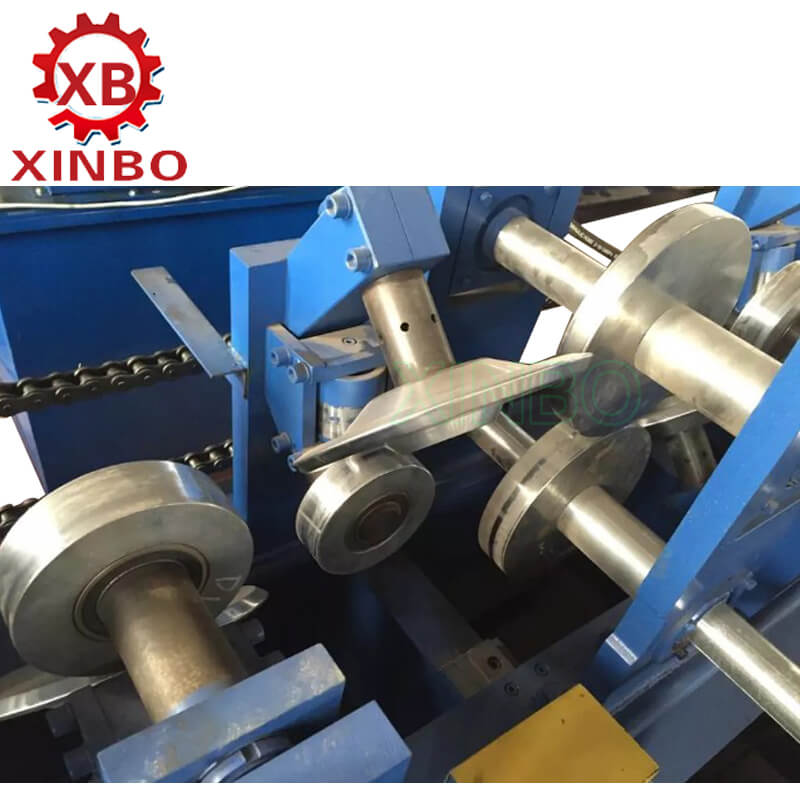

Material of Rollers

45# steel,with hard chrome coated

5.

Diameter of Shaft

Ф80mm

6.

Production Speed

0—15m/min

7.

Roller Driven

Decelerating Motor+Chain Transmission

8.

Cutting Model

Hydraulic Profile Cutting

9.

Length Measurement

Encoder

10.

Control Style

PLC control

11.

Total Power

5.5KW

12.

Voltage

380V 50HZ or at buyer’s request
