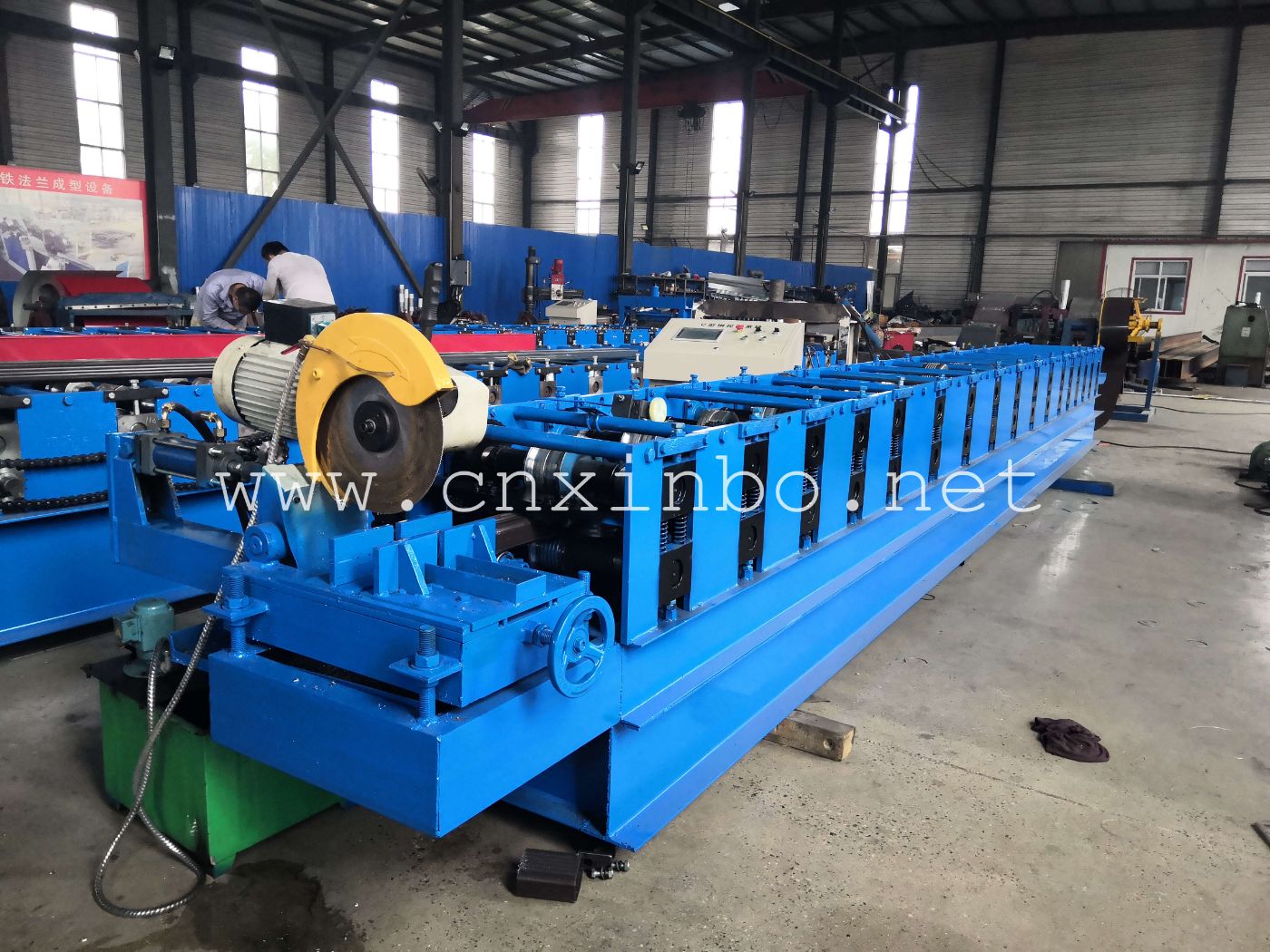

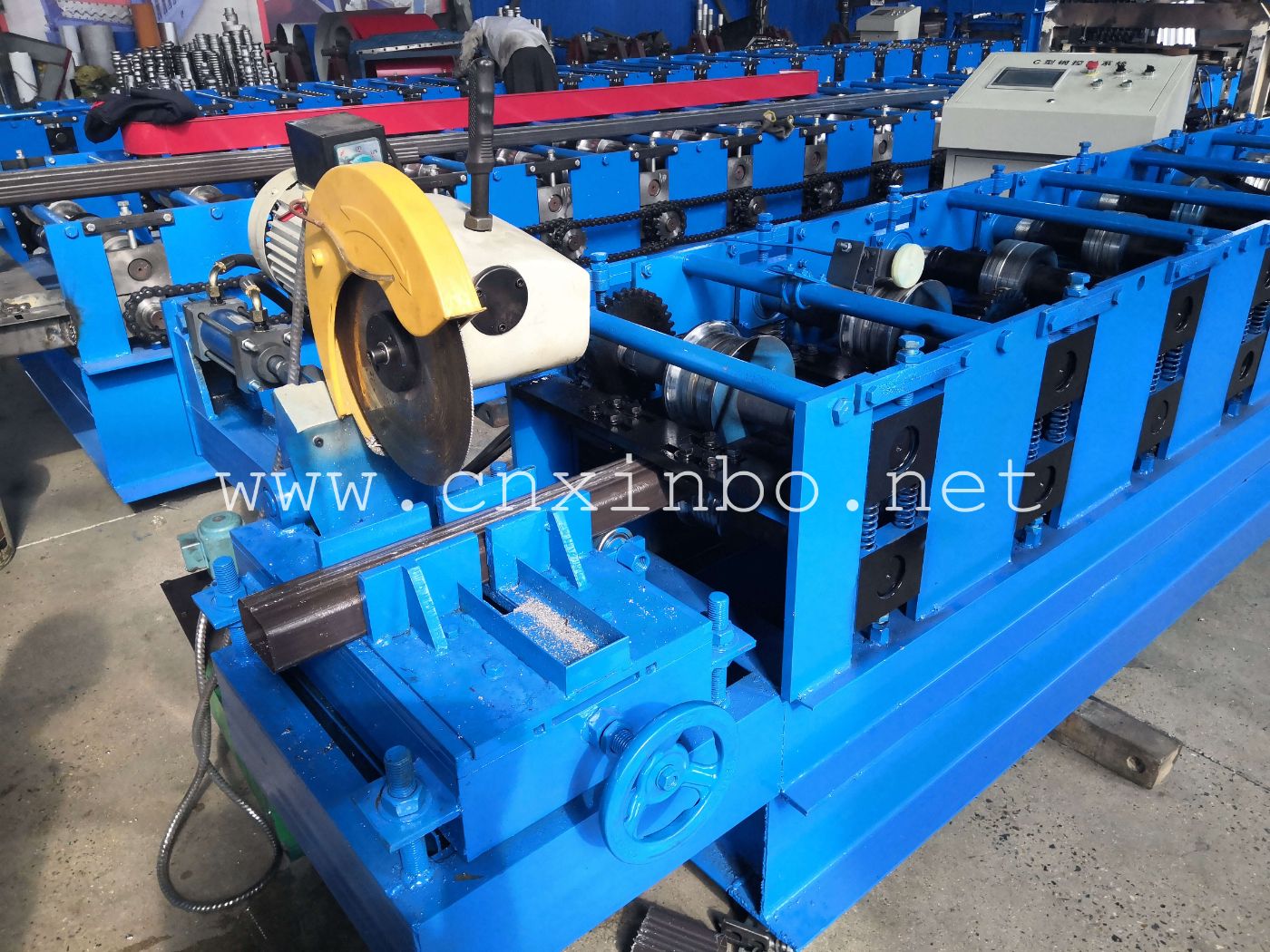

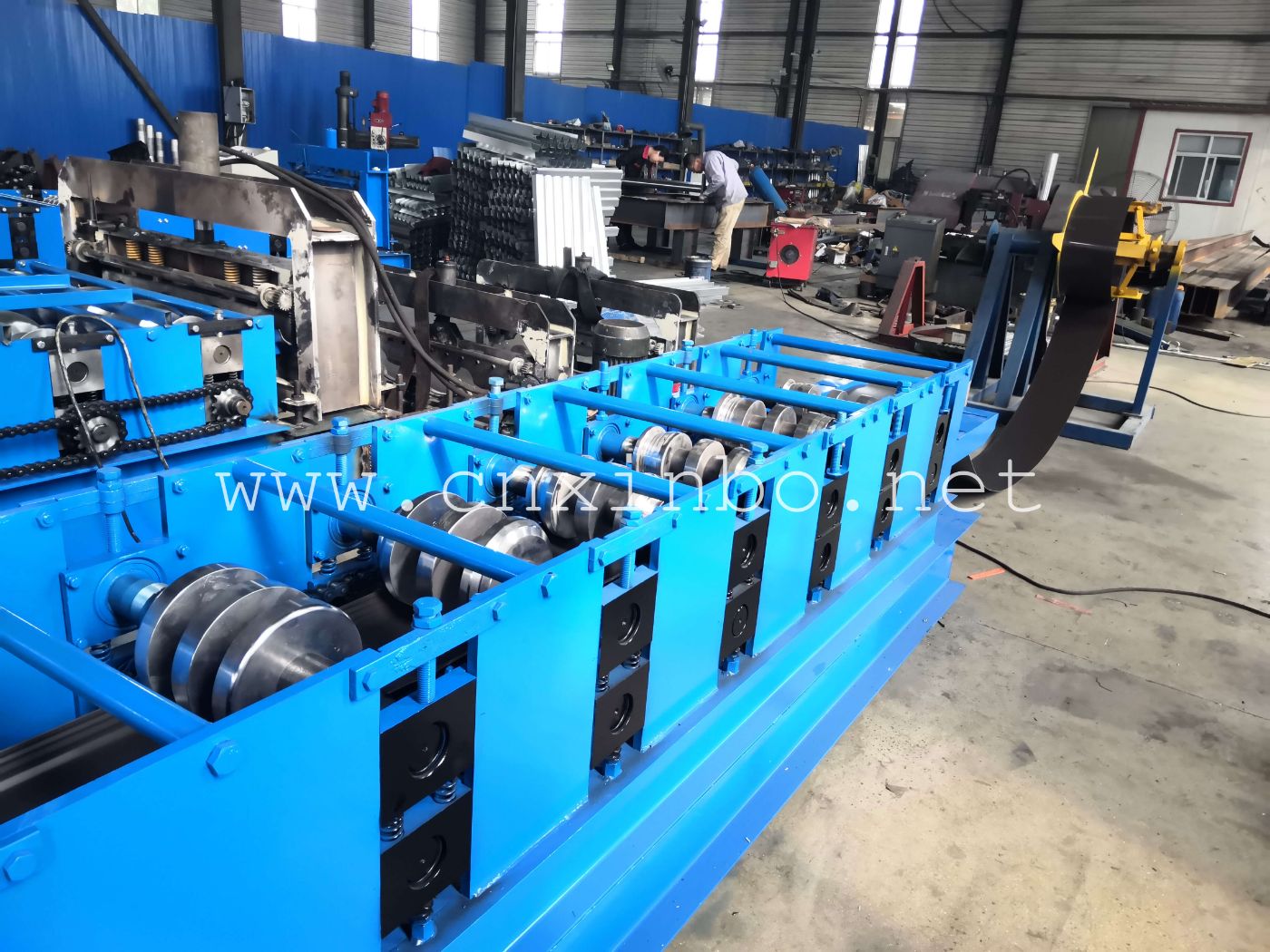

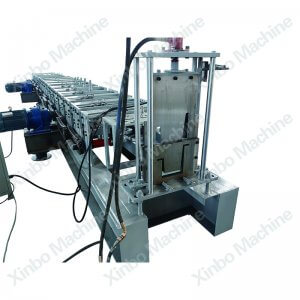

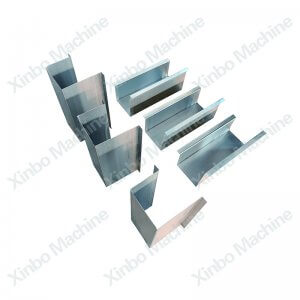

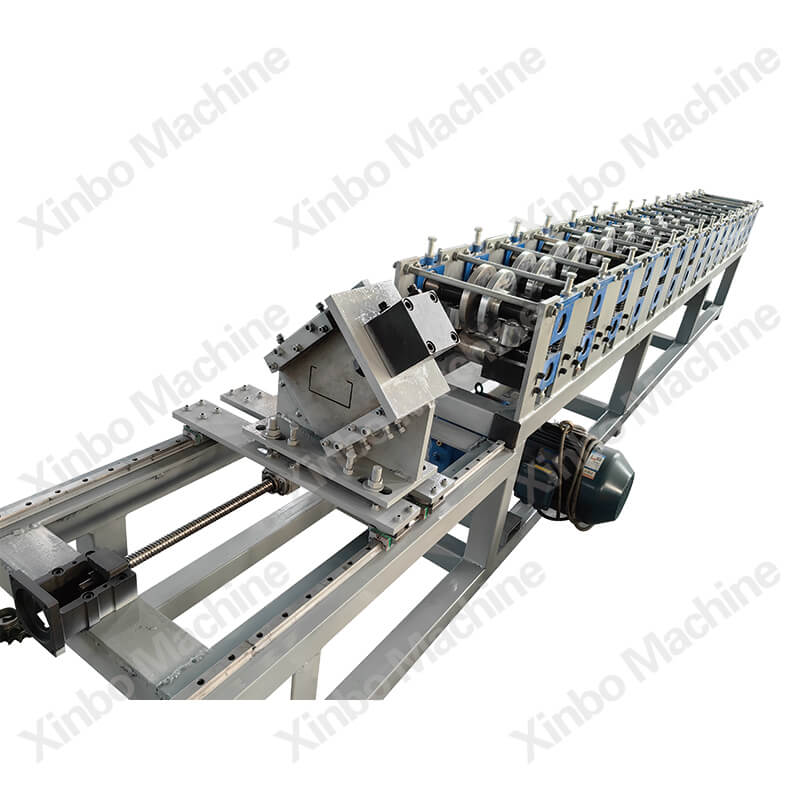

downspount roll forming machine

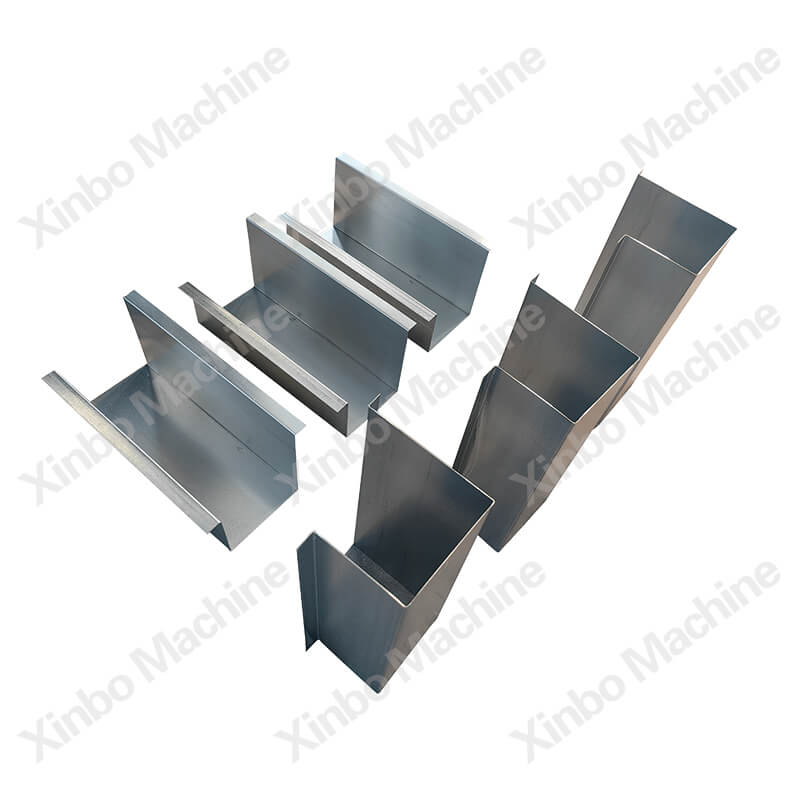

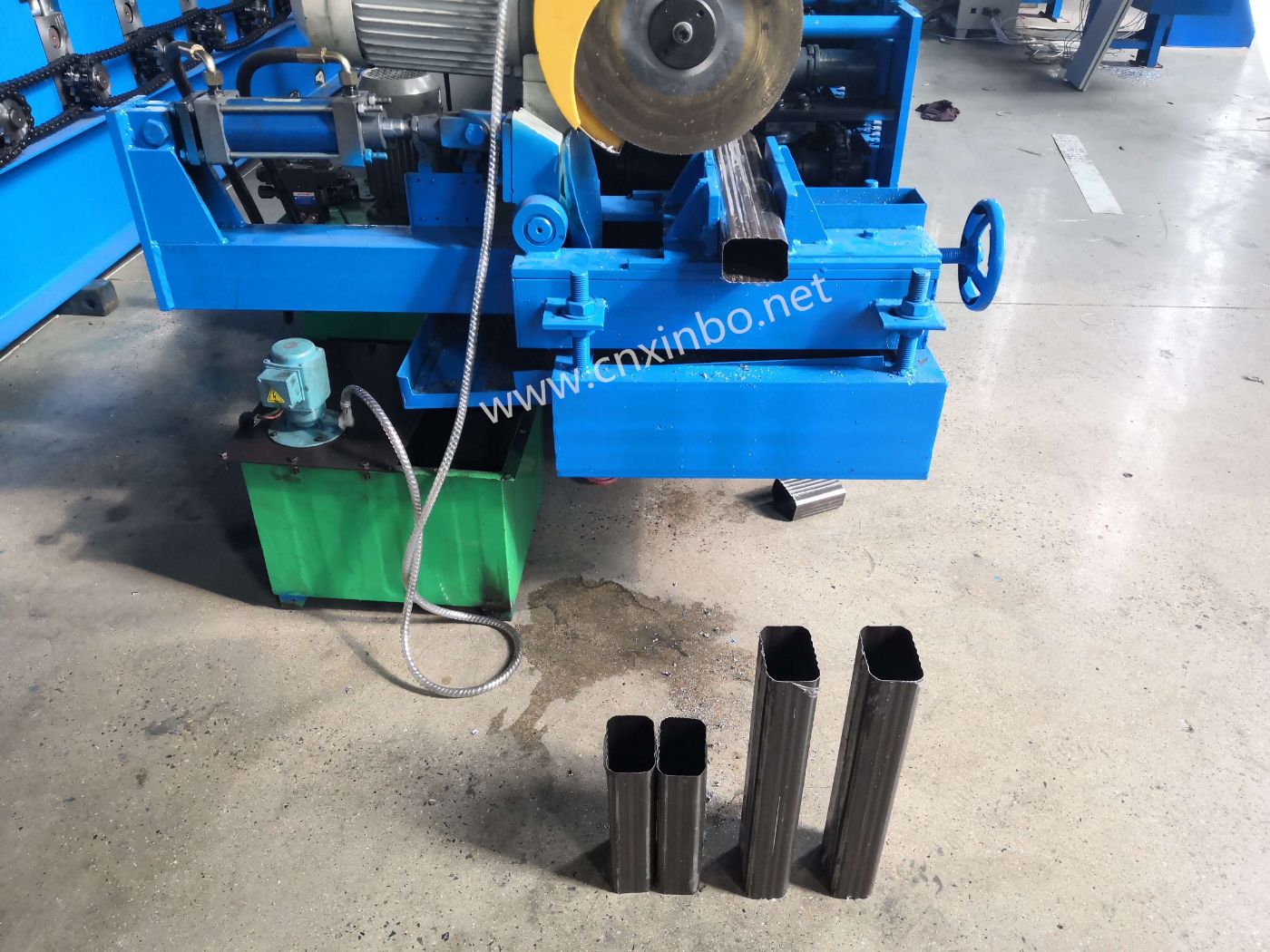

For different types and sizes of gutter, downspout, round pipe.

Working with automatically connecting.

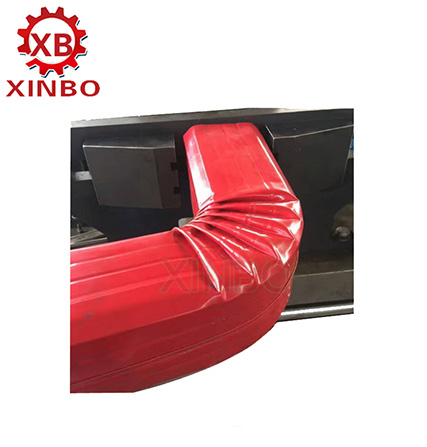

Pipe bending machine.

Parameter:

Producing flow:

Decoiler – Sheet guiding – roll forming – measure length– – cutting – panels to the supporter

No.

Item



1.

Processing Material

Aluminuim,Galvanized

3.

Processing Thickness(mm)

0.3-0.7

4.

Material of Rollers

45# steel,with hard chrome coated

5.

Production Speed

0-14 m/min

6.

Roller Driven

Decelerating Motor+Chain Transmission

7.

Cutting Model

Hydraulic Cutting

8.

Length Measurement

Encoder

9.

Control Style

PLC

10.

Station of roller

As engineer designing

11.

Total Power

5.5+4kw

12.

Voltage

380V 50HZ or at buyer’s request

Detial of each parts:

Introduction of Components

Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity:1-2T

Inner diameter: 450-508mm

Entry Beach

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

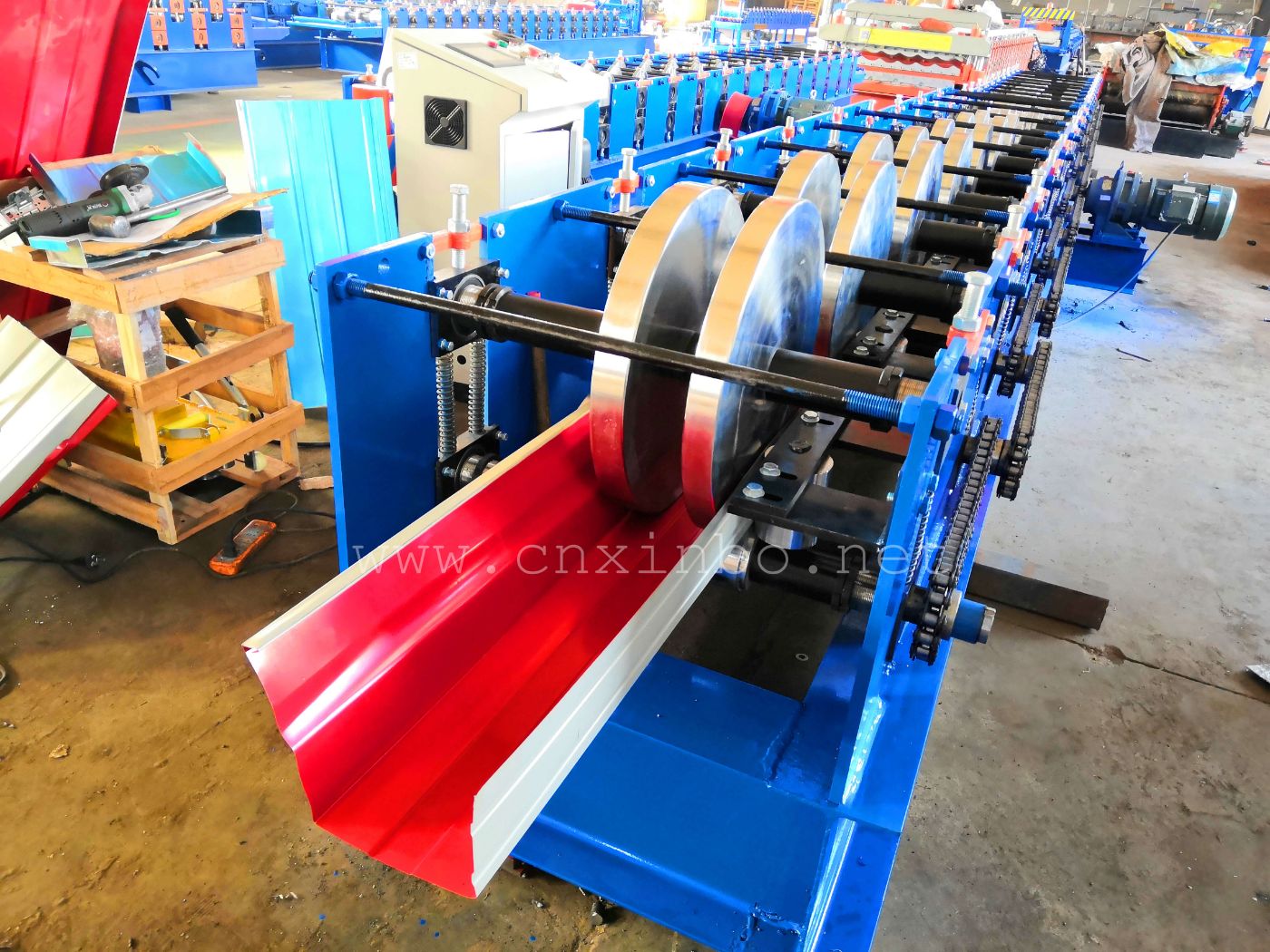

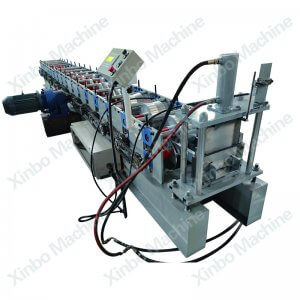

Forming Machine

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Material of rollers:45# steel, surface hard chromium plating.

Main power: 4kw(cycloidal planetary gear speed reducer)

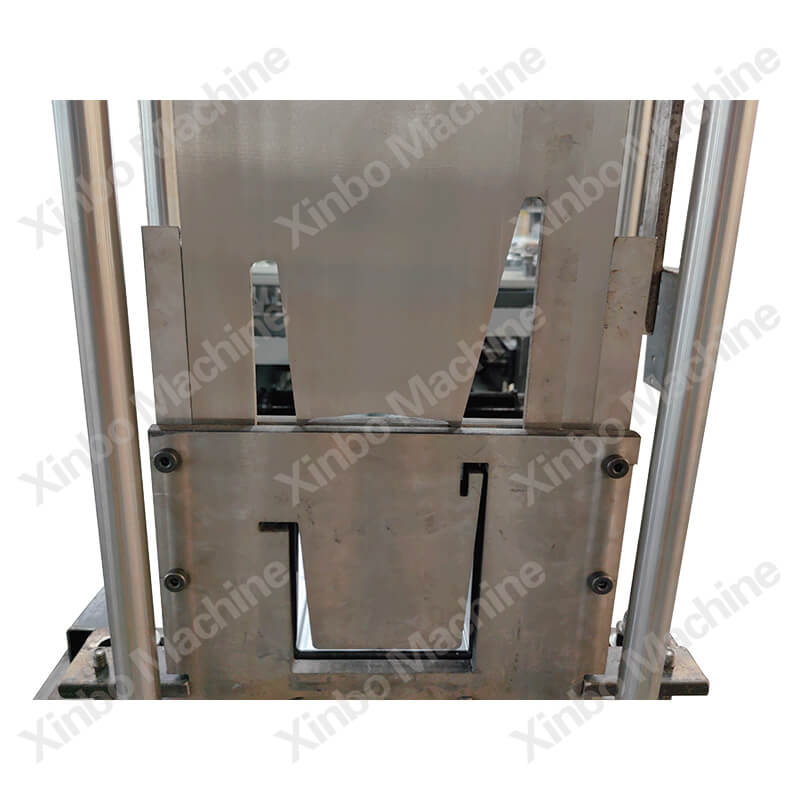

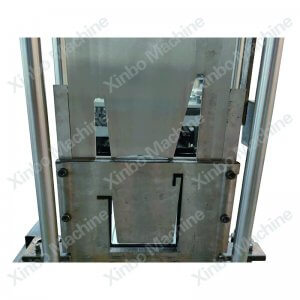

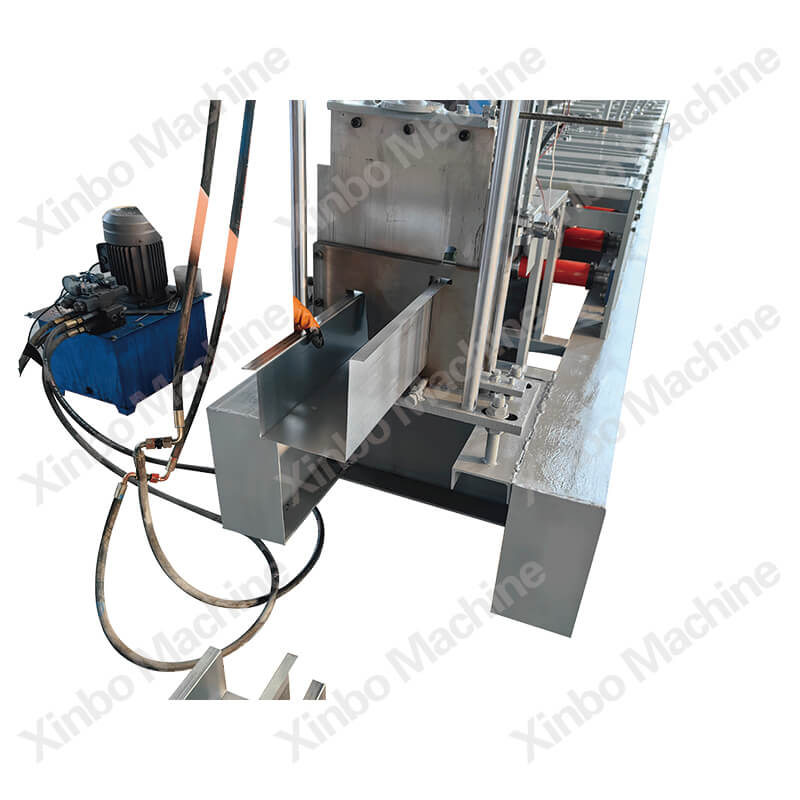

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12

Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.

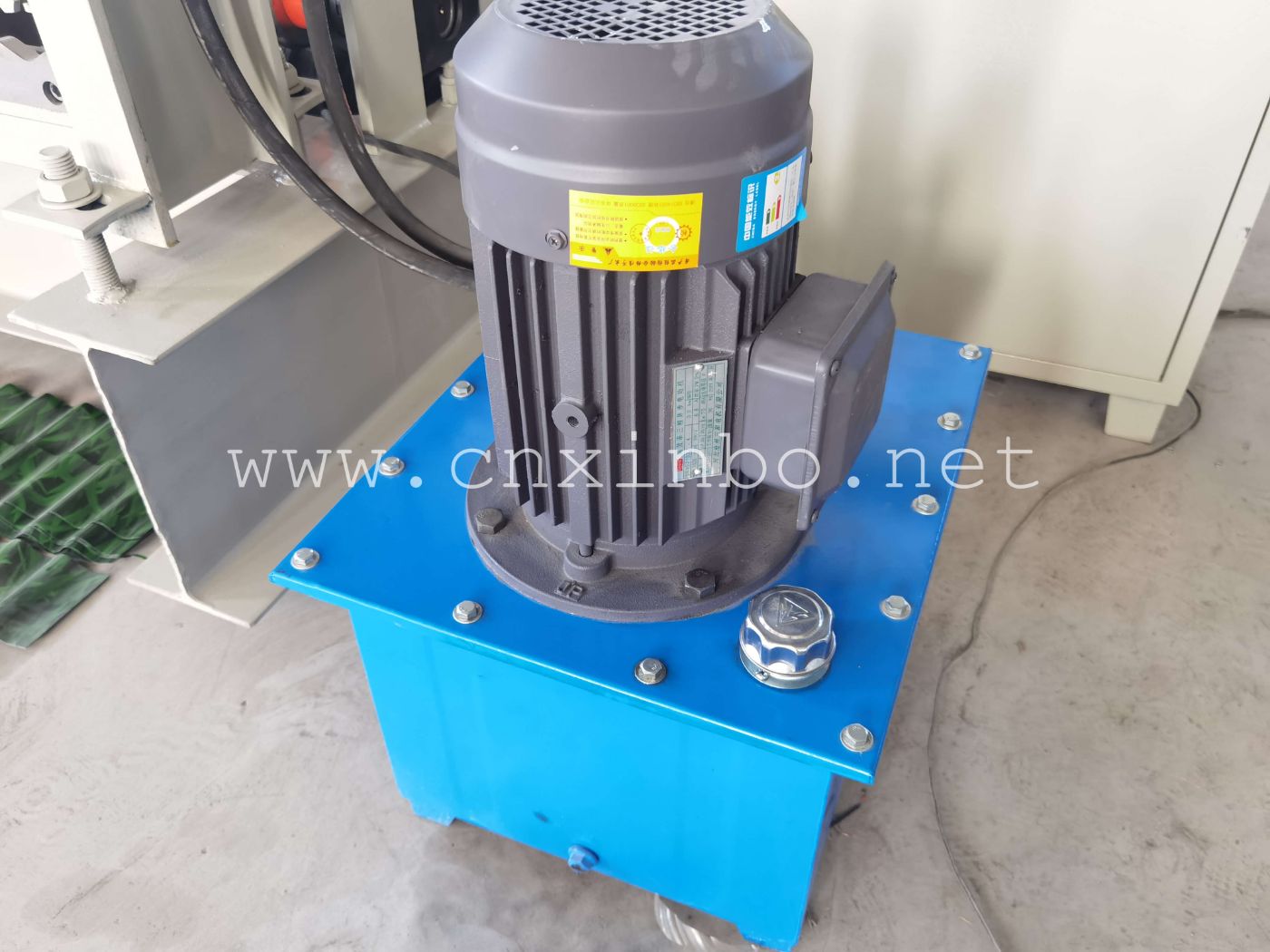

Hydraulic Station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Power:4kw

Hydraulic oil: 40#

Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

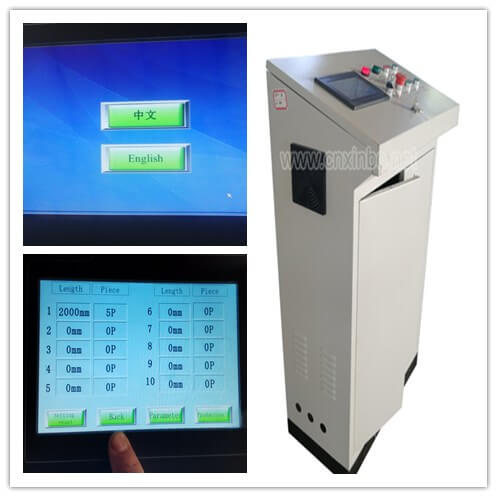

Computer Control Cabinet

It adopts PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

Counter

One counter gauges length, pulses, and decides length.

Products receiving tables



It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

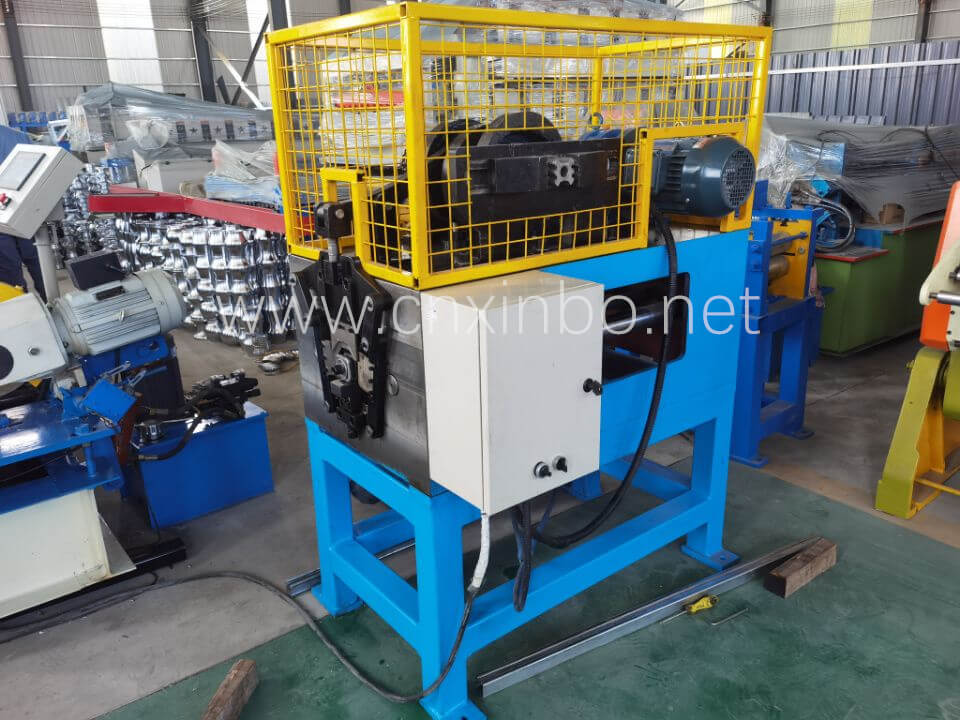

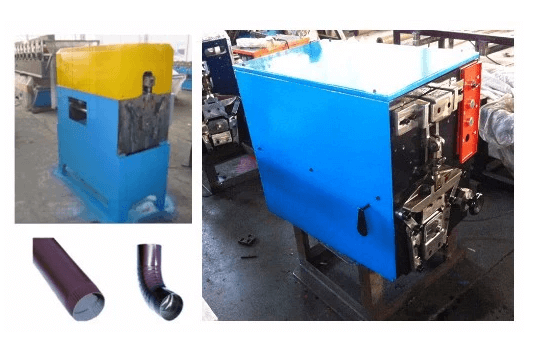

Pipe bending machine
