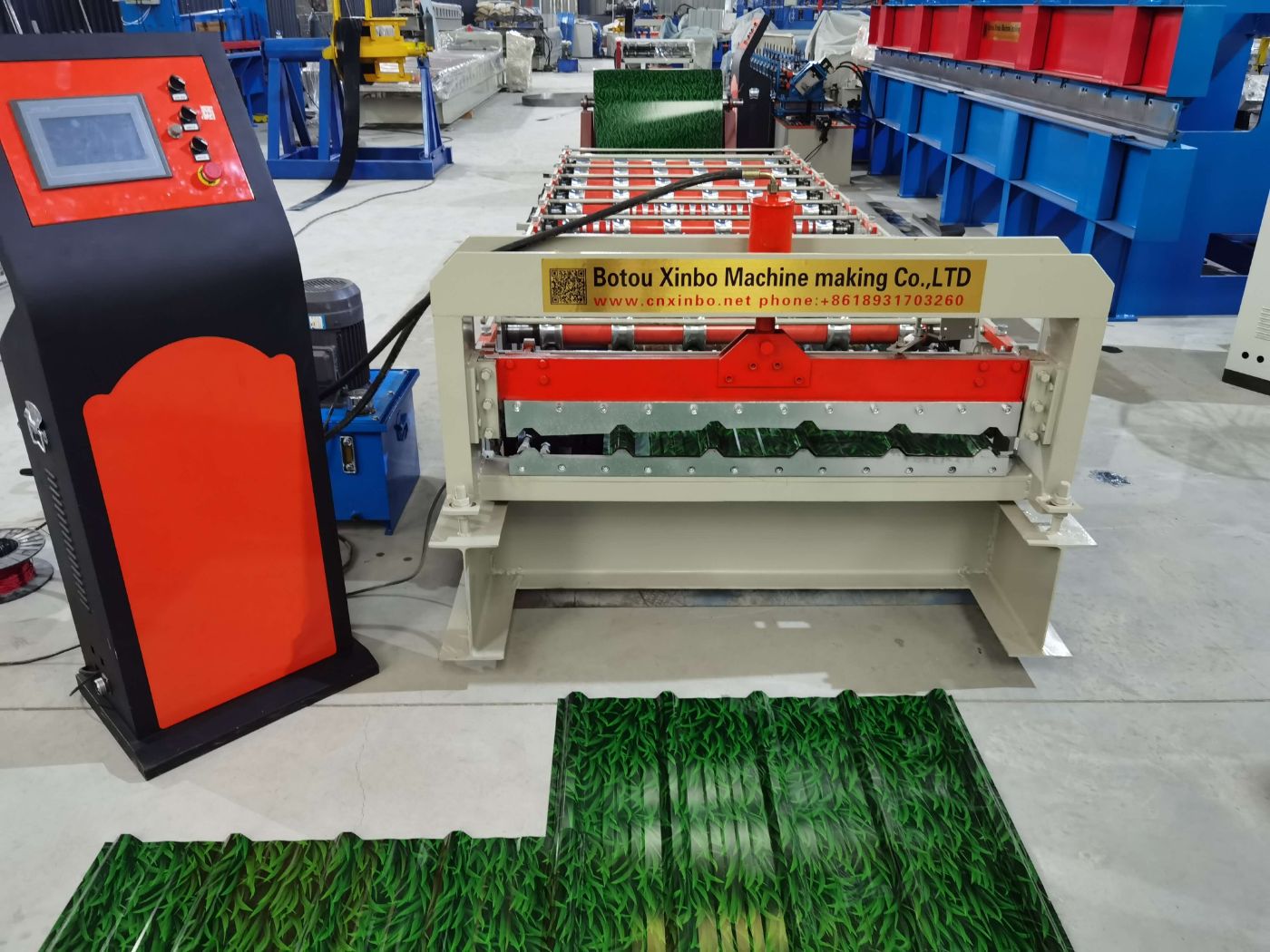

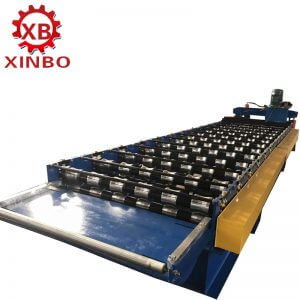

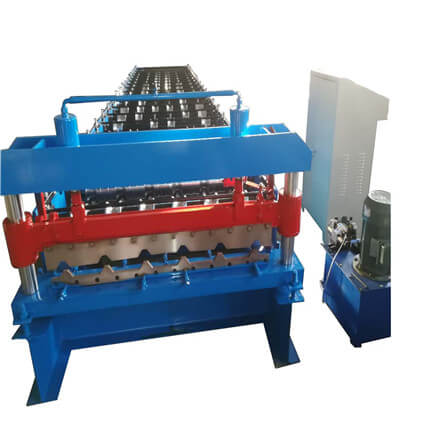

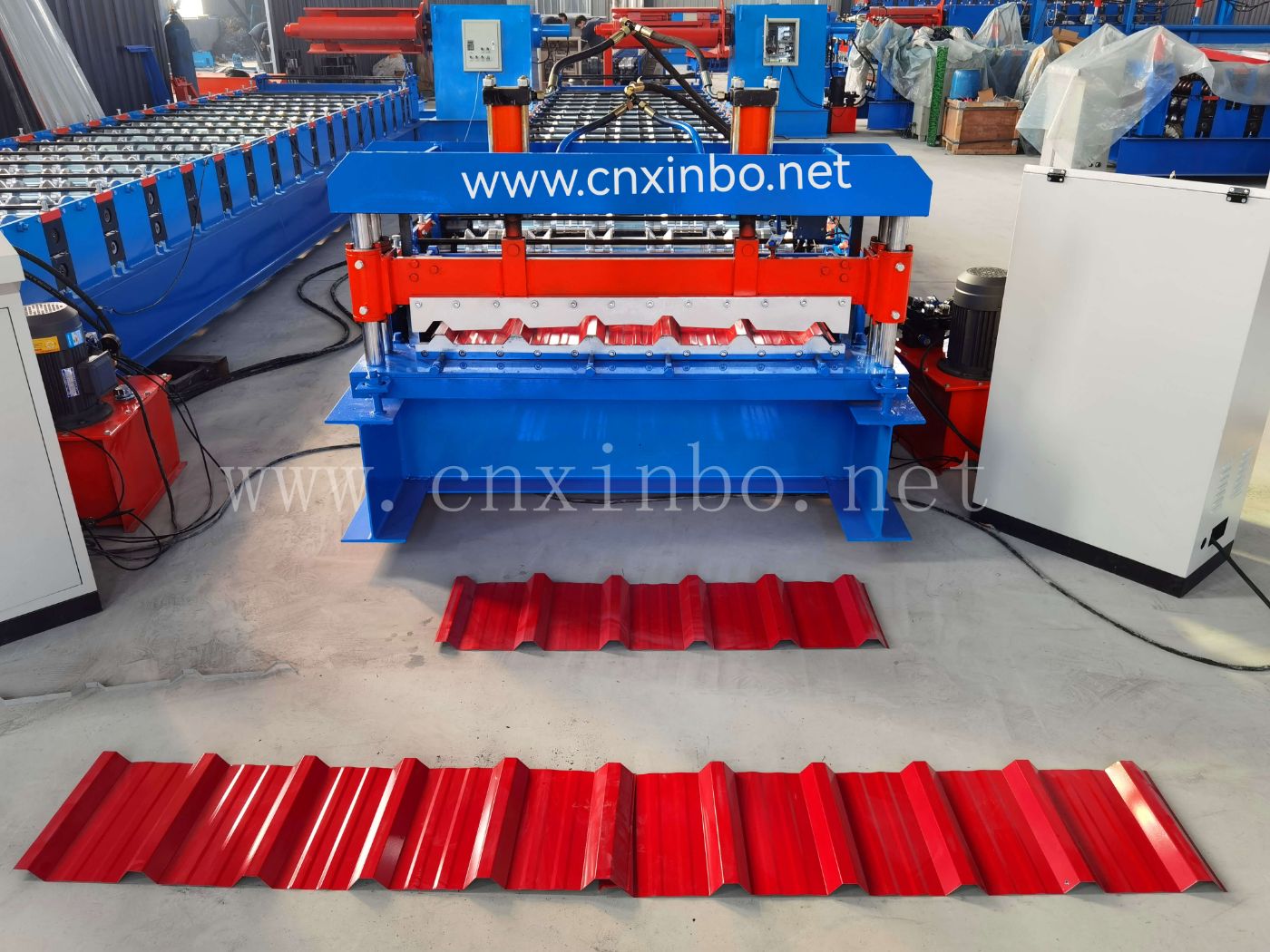

roof wall panel roll forming machine tile machine

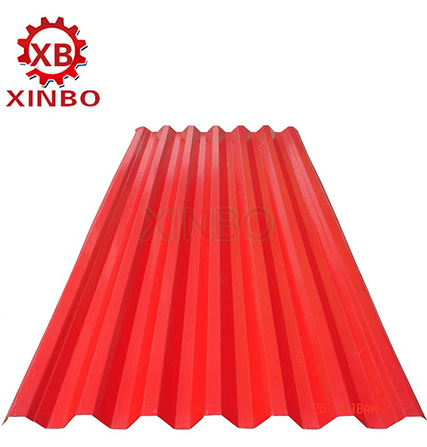

  This type of roof sheet  has advantage including beautiful, classical appearance and grace taste.

  Construction roll forming machine can be widely used in village, hotel, exhibition, vocation valley, family construction and outdoor decorate.

Wall/roof roll forming machine

Suitable to Process

Color steel sheet     Galvanized sheet     Iron sheet    Aluminum sheet    Stainless steel sheet

Width of raw material

1000mm/1200mm/12500mm  (according to customer requirements)

Rollers

customized

Dimensions

7000*1550*1300mm

Power

5.5+4kw

Thickness of sheet

0.3-0.8mm

Material of cutting blade

Cr12

Diameter of the roller

customized

Voltage

380V(Customized according to customer requirements )

weight

5T

Productivity

10-18m/min

Control system

PLC control

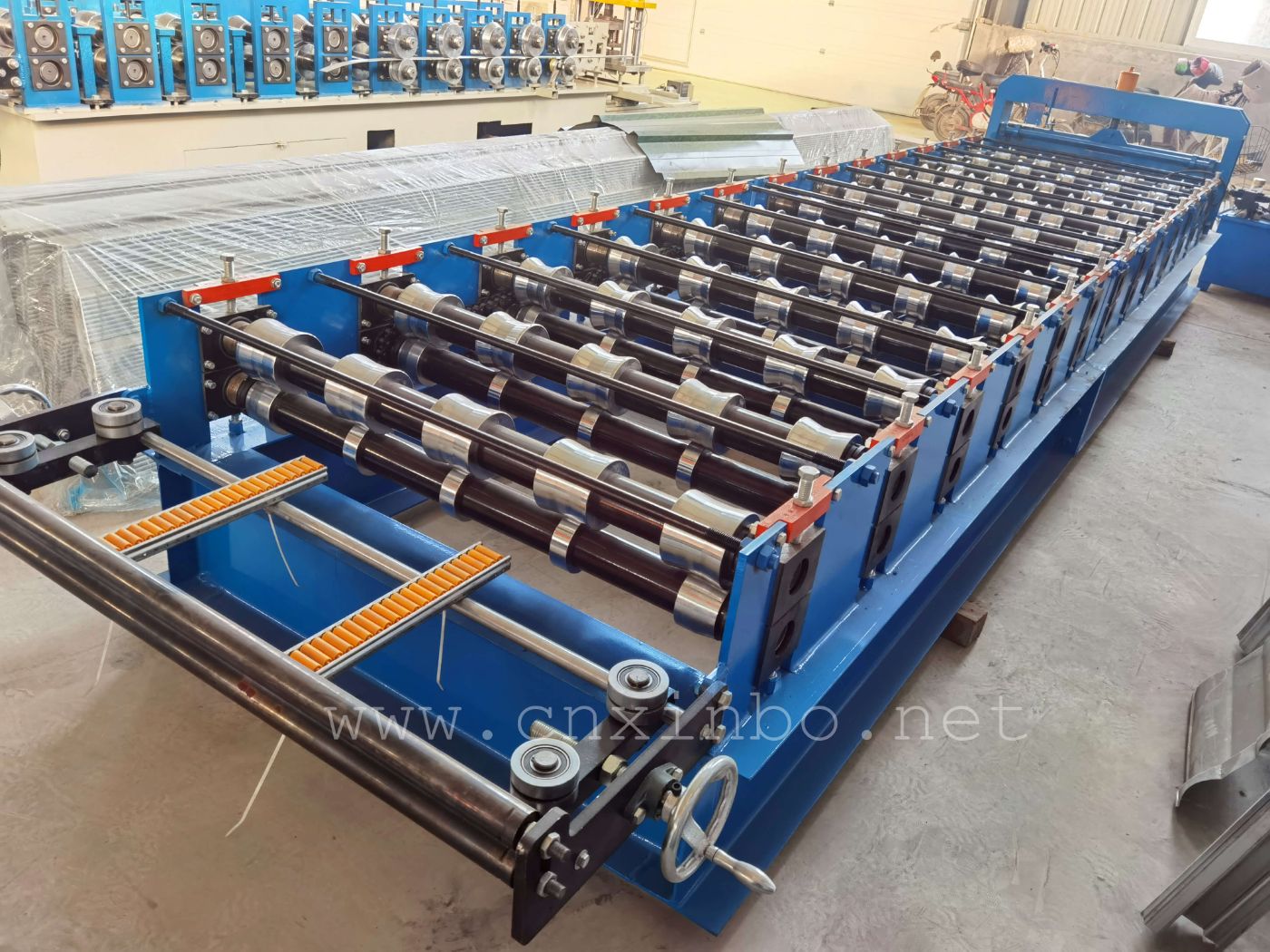

Rollers

In order to get high quality product, our construction roll forming machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Roller chrome coated thickness: 0.05 mm.

Computer Control Cabinet

It adopts PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.



Hydraulic Station

It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.

Power of The Pump:4kw

Hydraulic oil :40#

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12

Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.

Entry Beach

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

It is used to support the steel coil and uncoil it in a turnable way.(you can choose manual decoiler or automatic decoiler)

Loading capacity:5T

Inner diameter: 450-508mm

Packing:

Main machine is nude, the computer control box is packed with wooden frame.

Main machine is nude in the container, the computer control box is packed with wooden packaging.

Our service:

This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Company Information:

Botou Xinbo Machine Making Company mainly produce and sell All kinds of machines and cnc machining services. roll forming machines,C Z purlin machine, deck floor machines,stud &track light keel machine, T grid machine, downpipe machine,EPS and Rockwool sandwich panel machines for the building structure and all kinds of CNC machining services.
