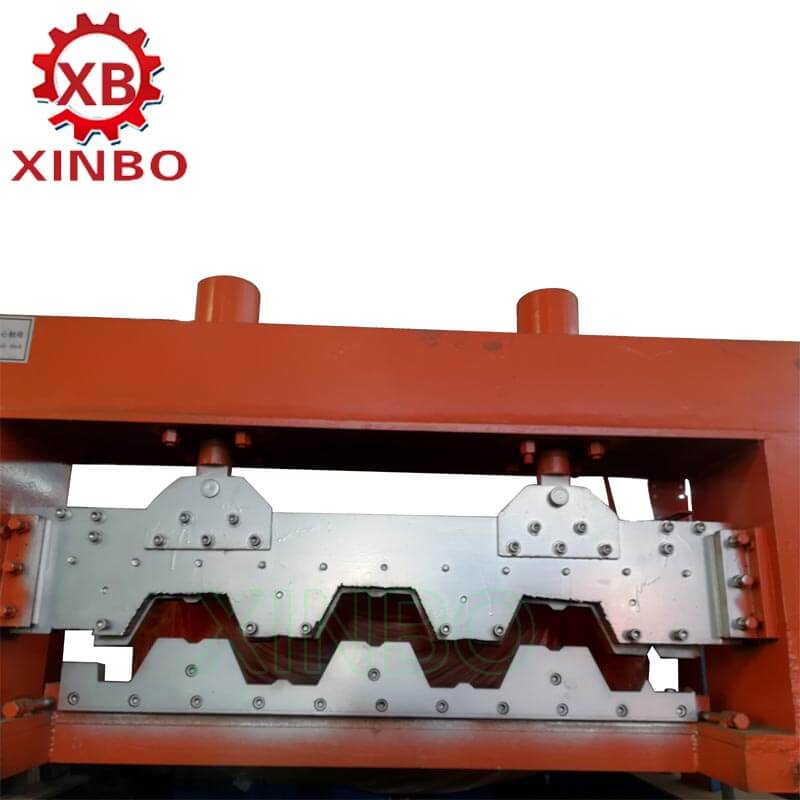

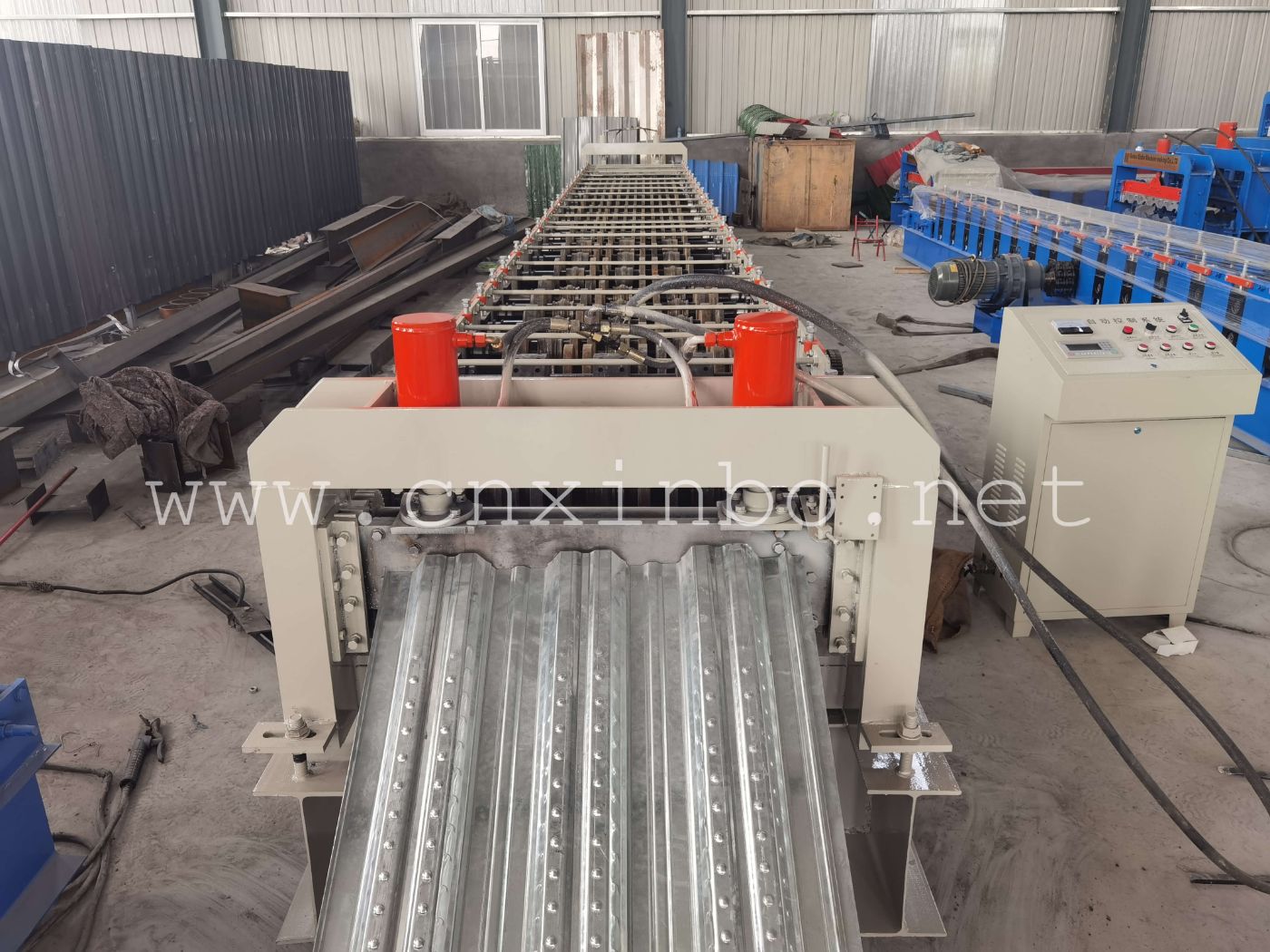

Floor metal decking rolling forming machine Full automatic galvanized steel decking machine

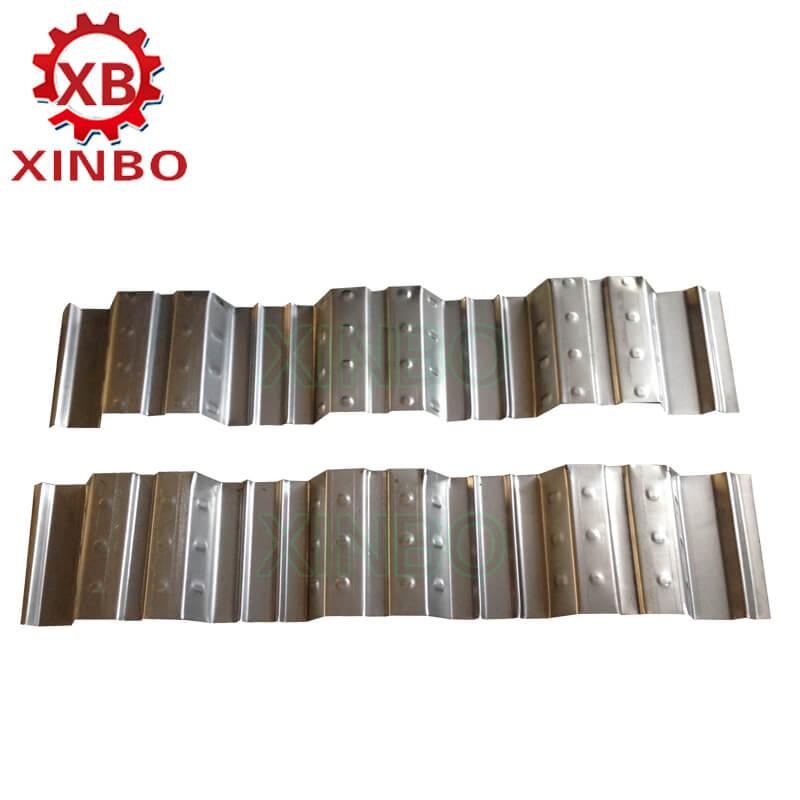

Floor bearing plate machine, namely floor bearing plate production equipment, is used for molding floor bearing plates. The floor bearing plate produced by the floor bearing plate machine has simple shape, large waviness and high strength. During installation, the spot welded reinforcing mesh is paved and combined with the on-site concrete pouring, with good adhesion. In high-rise buildings, the floor bearing plate can not only save the steel formwork but also reduce the floor bearing capacity.
|
Item |
Specification |
|
Processing Material |
GI |
|
Input Width(mm) |
1000 |
|
Formed Width(mm) |
688 |
|
Processing Thickness(mm) |
0.8—1.0 |
|
Material of Rollers |
45# steel,with hard chrome coated |
|
Diameter of Shaft |
Ф80mm |
|
Production Speed |
8—10m/min |
|
Roller Driven |
Decelerating Motor+Chain Transmission |
|
Cutting Model |
Hydraulic Profile Cutting |
|
Length Measurement |
Encoder |
|
Control Style |
PLC |
|
Operation Model |
Button + Touch Screen |
|
Total Power |
11+11+5.5KW |
|
Voltage |
380V 50HZ or at buyer’s request |
|
Number of roller stations |
26 or as designing |
