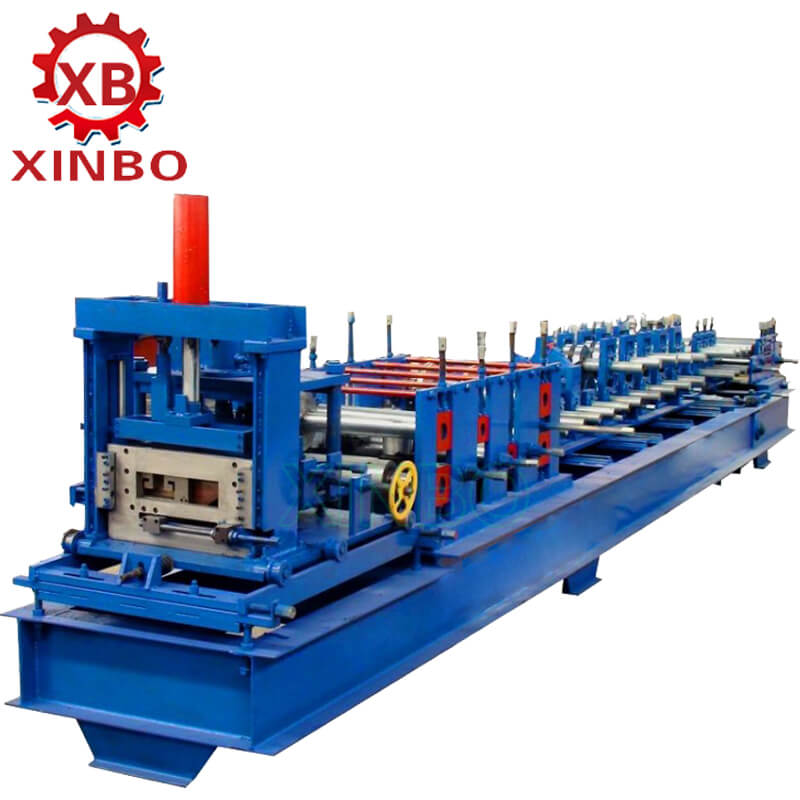

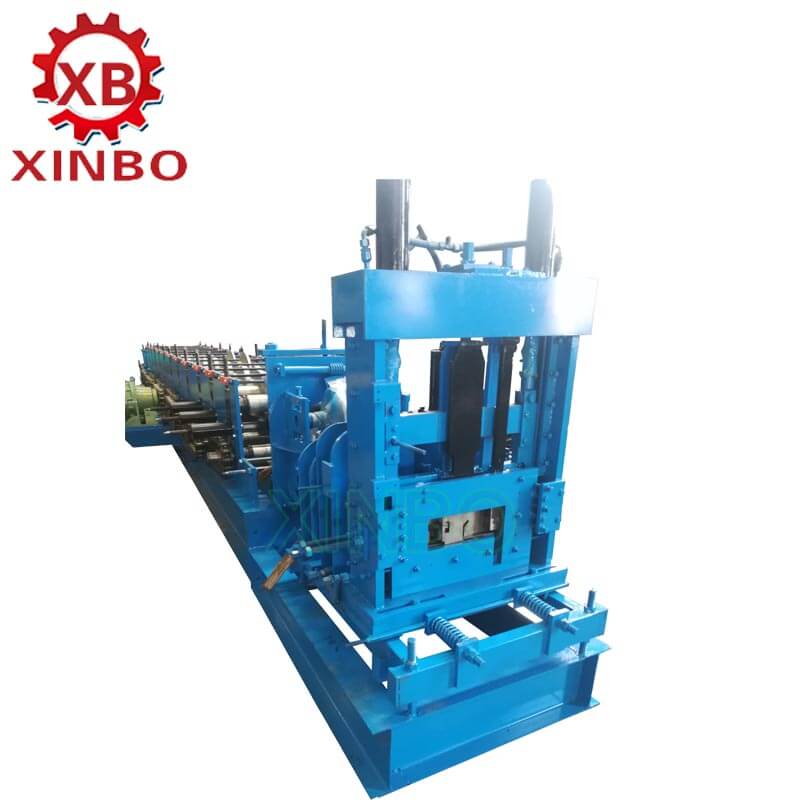

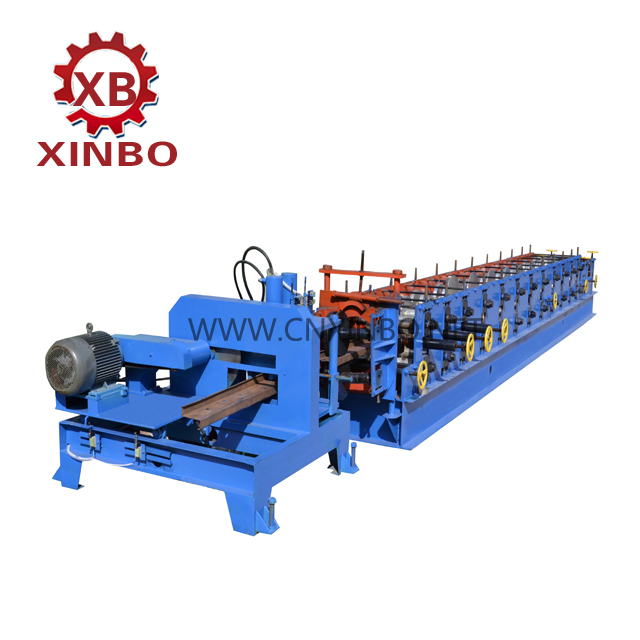

C Z purlin machine

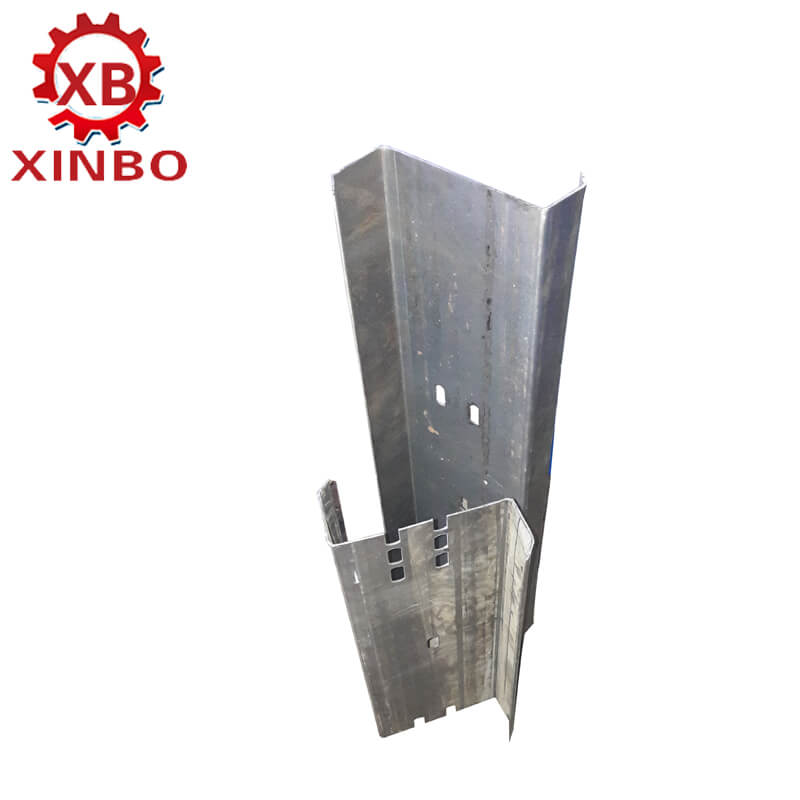

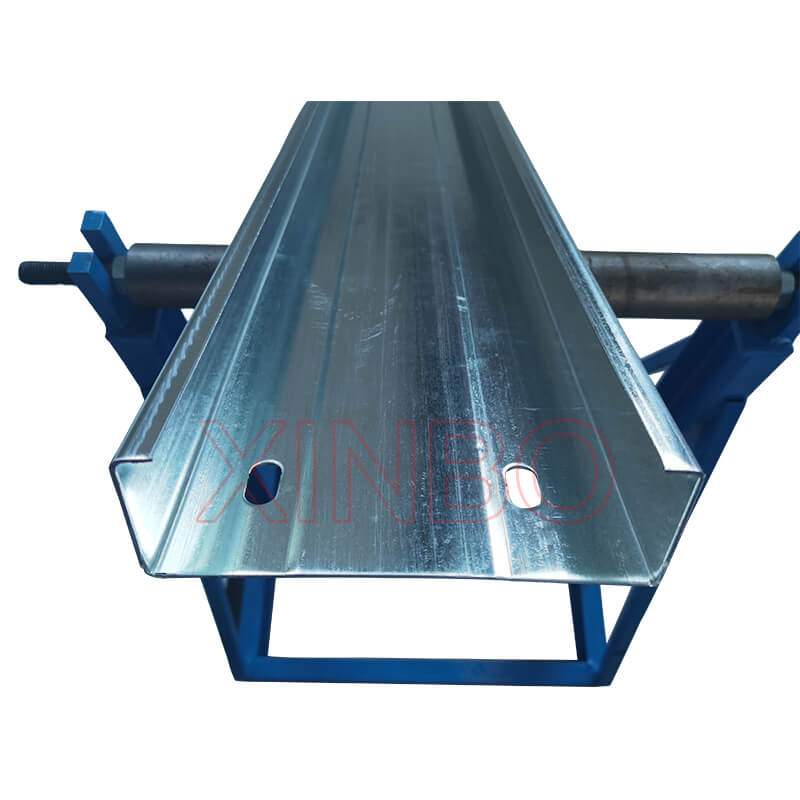

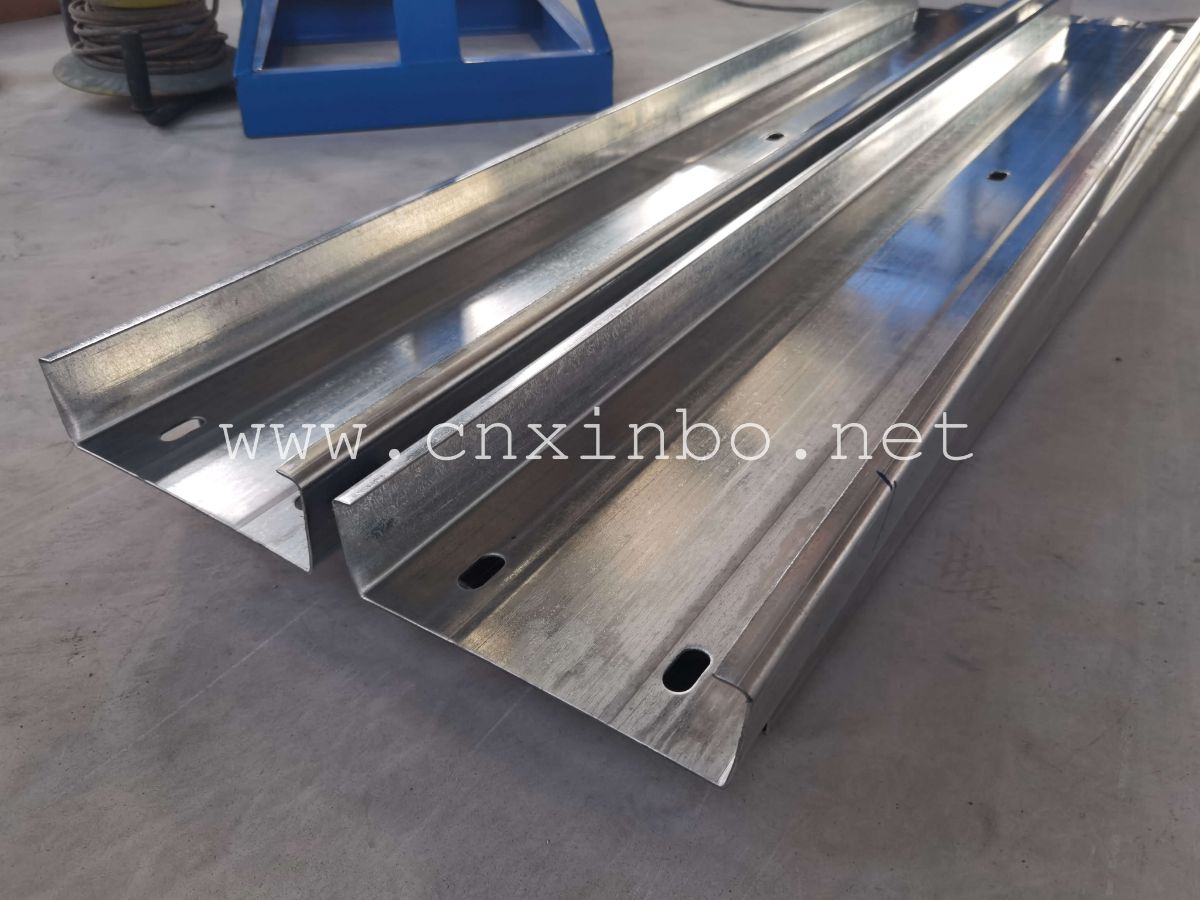

CZ purlin machine is a kind of interchangeable production line. It is mainly used to make C-shaped or Z-shaped purlins after punching, leveling, cold bending, forming, length fixing and cutting of hot and cold rolled steel strips. Two types of conversion and specification adjustment can be realized through relevant adjustment, including manual adjustment and automatic adjustment.
|
No. |
Item |
Specification |
|
1. |
Processing Material |
PPGI,GI,AL |
|
2. |
Formed Width(mm) |
As drawing |
|
3. |
Processing Thickness(mm) |
1-1.5 |
|
4. |
Material of Rollers |
45# steel,with hard chrome coated |
|
5. |
Diameter of Shaft |
Ф80mm |
|
6. |
Production Speed |
0—15m/min |
|
7. |
Roller Driven |
Decelerating Motor+Chain Transmission |
|
8. |
Cutting Model |
Hydraulic Profile Cutting |
|
9. |
Length Measurement |
Encoder |
|
10. |
Control Style |
PLC control |
|
11. |
Total Power |
5.5KW |
|
12. |
Voltage |
380V 50HZ or at buyer’s request |
