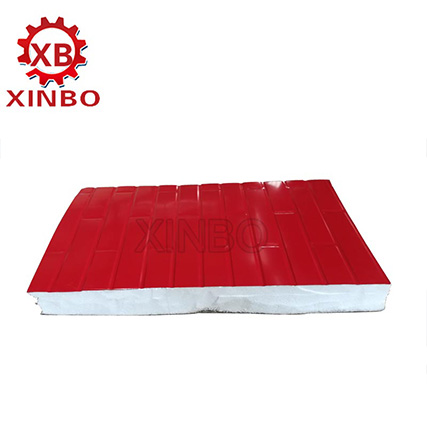

Sandwich Panel Roll Forming Machine
This metal panel machine production line adopts superior technology by pneumatic,electricity,and mechanism,which is the specialized machine for producing color steel sandwich panel.The production speed can be adjusted by stepless speed regulation.The complete line includes uncoiling machine,forming machine,composting machine(ribs forming,rubber coating,warming up.composting,hemming,notching,edge processing,pneumatic auto cutting),It’s necessary for making wall and roof panel of workshop,storage and so on.
Technical parameter：
|
Overall power equipment: |
55 kw |
|
Size of the line: |
overall length of the line is 28000mm |
|
Voltage |
380V,50Hz or as customer’s need |
|
Produced panel thickness |
0.3-0.8mm |
|
Overall width of the line: |
1250mm |
|
Overall height of the line: |
2100mm |
|
Overall weight of the line: |
20000KG |
Details part for the machines:
- Roofforming machine
A. Intoshearingdevice
B.Formingmachine itself
2.Panelmachine
a. Levelerfor thickness
Compositerubber rollers
b. Gluesection
Glue pumps
Spreaduniformlydevice
c. Groovingdevice
e. Intoshearing
Machinery Parts:
- 1.FormingMachine
a.IntoShearing Device
|
Type of Shearing: |
Electrical Shearing |
|
Driven Power: |
0.75 kw |
|
b. Forming Machine Itself |
|
|
Design of profile: |
Same as sample |
|
Type of forming: |
roll forming |
|
Shaft diameter: |
70mm |
|
Material of roller: |
45 steel heat treatment |
|
Thickness of chromic plating of roller surface: |
0.05~0.06mm |
|
Speed of forming: |
5~6.0m/min synchronies with panel machine |
|
Type of synchronies: |
electrical synchronies |
|
Driven power: |
3.0 kw |
|
Size of forming machine: |
5000×1650×2000mm |
- b.Gluesection
- Gluepumps(Gear Pump)
|
numbers of pump: |
2 sets |
|
Driven power: |
0.37 Kw*2 |
|
Flow volume of glue: |
0~0.4 kg per pump |
|
type of flow volume control: |
Change frequency (Black) 1.5 |
|
Scale of glue: (white): |
Spreaduniformly device
|
speed of spreading: |
80 times/min |
|
driven power: |
0.5kw ×3 |
c.ApplyGuard Film:
|
Type of apply guard film: |
Automatic |
- d.Intoshearing
|
type of shearing: |
Electrical |
|
numbers of shear: |
1 set |
|
Driven power: |
0.75KW |
3.ElectricalControl system Part
|
Electrical Voltage: |
380V/3Ph/50Hz or as customer need |
|
Type of controlling: |
PLC |
|
Touch screen: |
1 set |
|
Speed measure device: |
1 set |
|
Parts of electrical control system: |
1 set |
