standing seam roof panel roll forming machine

Using for roof panels and be curved different angle as customer need.

Two roof panel can connected by theirself and no water into house and no need to use screw for the two roof panels.

Paramater:

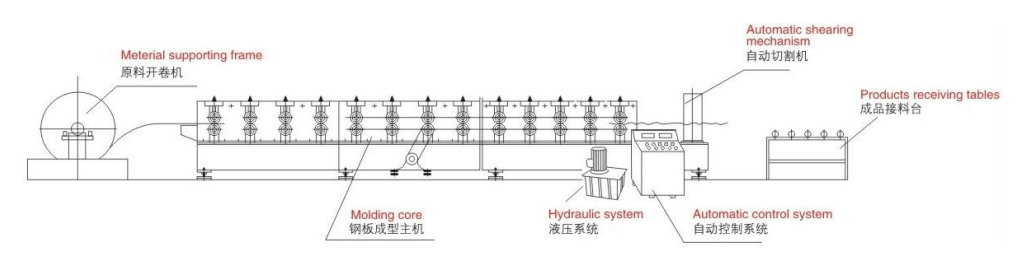

Manual Decoiler—Entry Beach—Roll Forming Machine—Automatic Shearing Mechanism—Computer Control Cabinet—Electrical Run-out Tables

No.

Item



1.

Processing Material

PPGI,GI,AL

2.

Input Width(mm)

608mm or as customer needing

3.

Formed Width(mm)

As customer need

4.

Processing  Thickness(mm)

0.3—0.7

5.

Material of Rollers

45# steel,with hard chrome coated

6.

Diameter of Shaft

Ф70mm

7.

Production Speed

0—15m/min

8.

Roller

As design

9.

Cutting Model

Hydraulic Profile Cutting

10.

Length Measurement

Encoder

11.

Control Style

PLC control

12.

Total Power

6kw

13.

Voltage

380V 50HZ or at buyer’s request

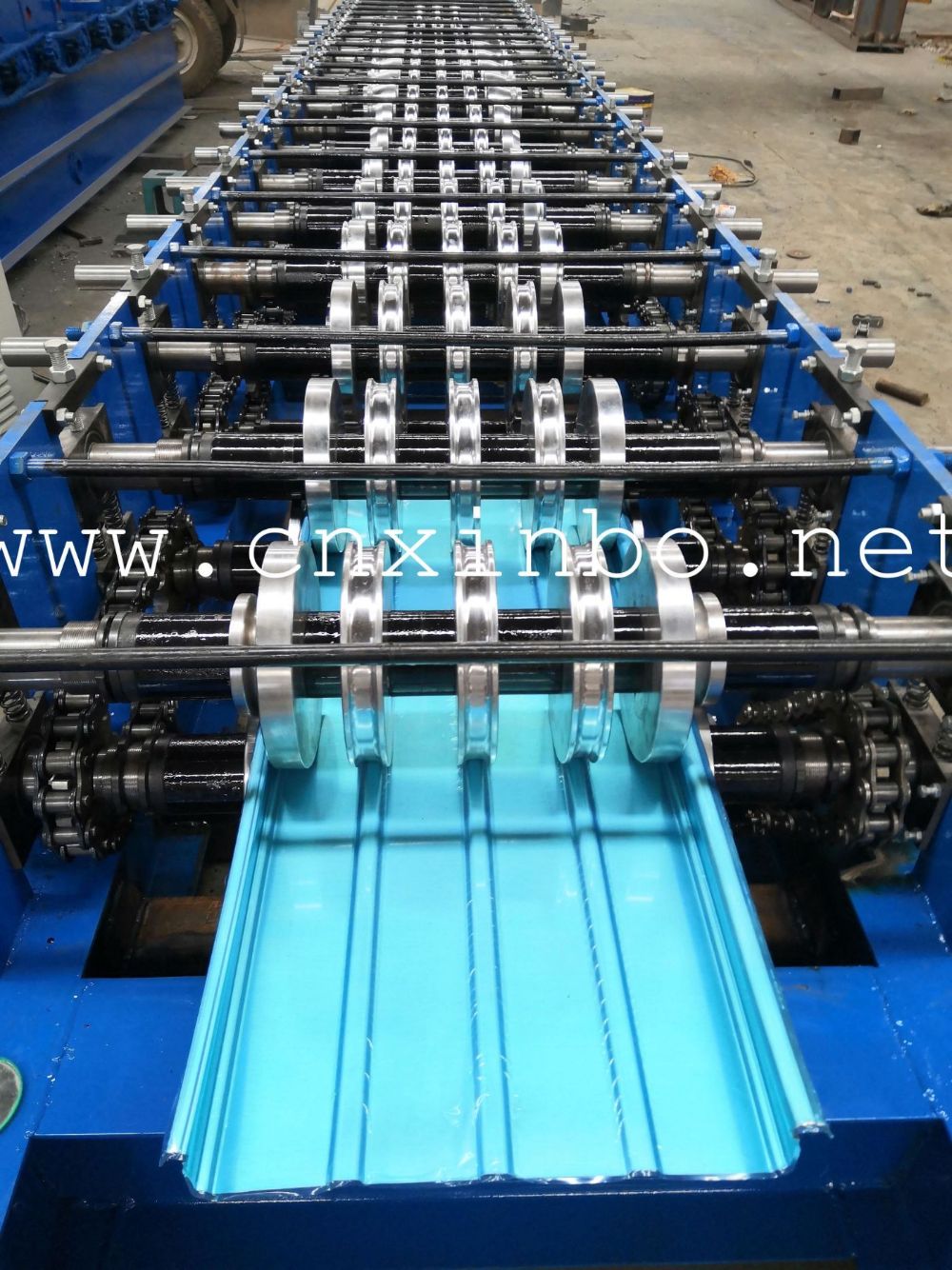

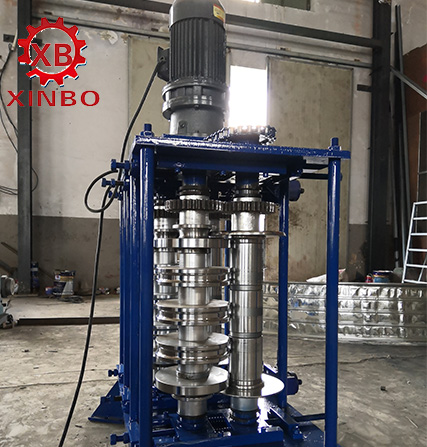

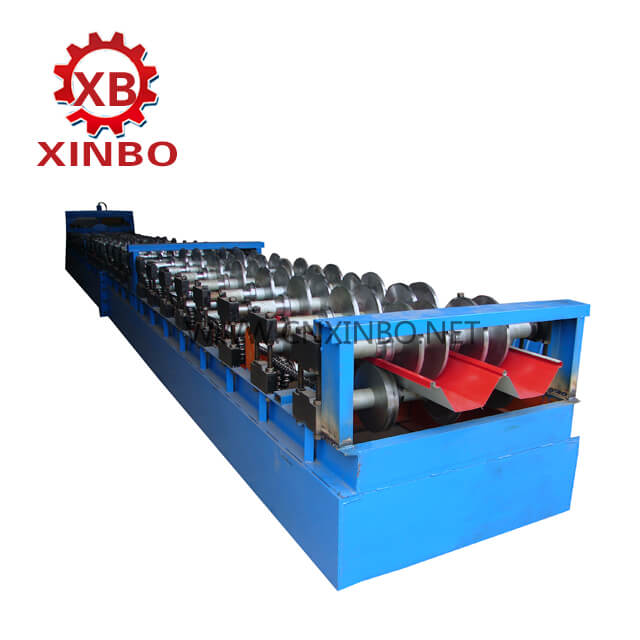

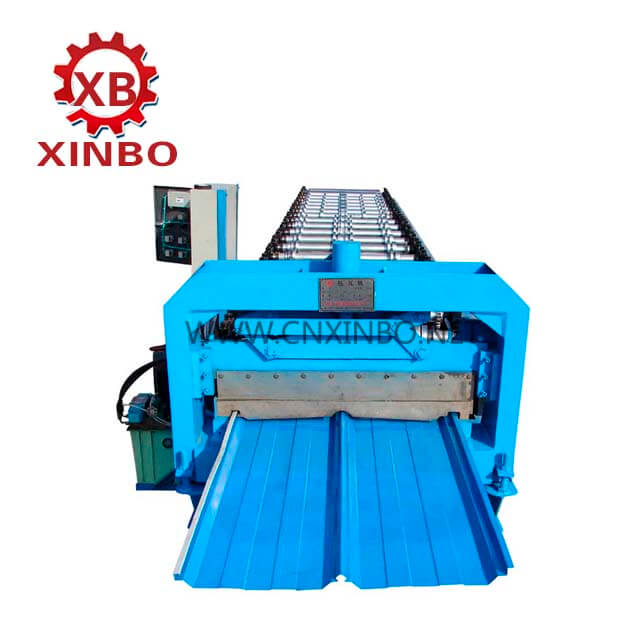

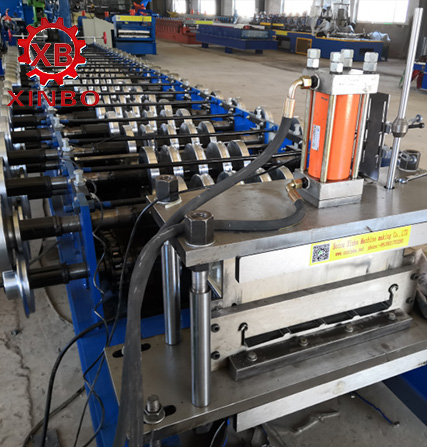

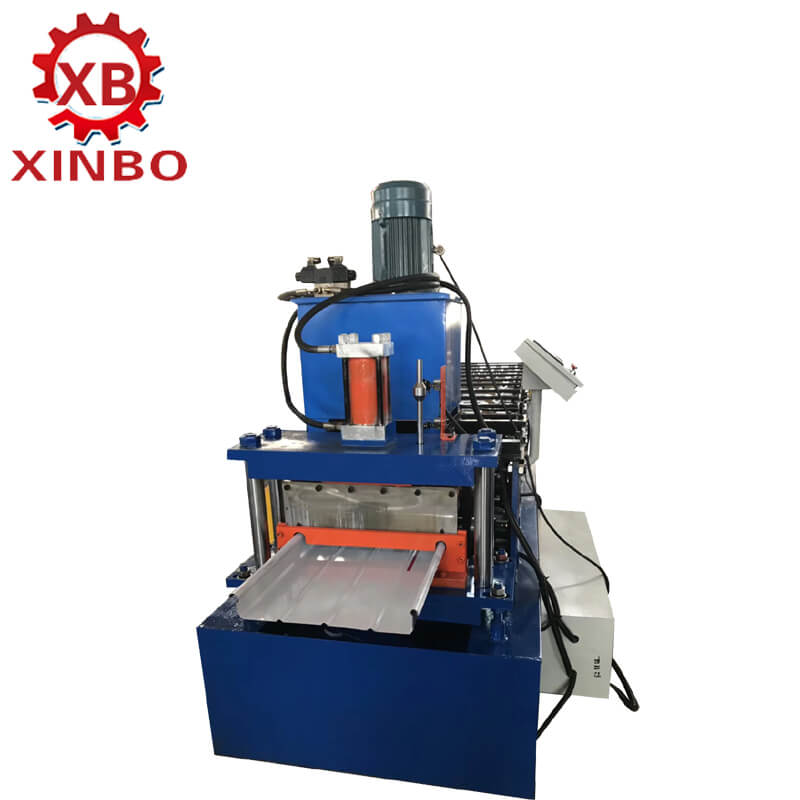

Details of machines:

After service:

  1. Packing method:Bare covered, with waterproof cloth andstow-wood.

Imported computer control system packed with waterproof cloth and card board.

  1. Salesterm:30% deposit by T/T before production, and rest 70% should be balanced by T/T before loading into container .
  2. After-salesservice:This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad.
  3. Delivery time: 35 working days.
