PLC Control 6KW Double Layer Roll Forming Machine

It is used to support the steel coil and uncoil it in a turnable way
AC frequency conversion motor reducer drive, chain transmission,
roller surfaces polishing, hard plating, heat treatment and chrome coating
Adopts PLC to control

Wall/roof roll forming machine
Suitable to Process Color steel sheet     Galvanized sheet     Iron sheet
Width of raw material 1000mm/1200mm/12500mm  (according to customer requirements)
Rollers Customized
Dimensions 7000*1550*1300mm
PowerPower 6kw
Thickness of sheet 0.3-0.8mm
Material of cutting blade 45#
Diameter of the roller customized
Voltage 380V(Customized according to customer requirements )
Productivity 5-15m/min
Control system PLC control



Detailed Images

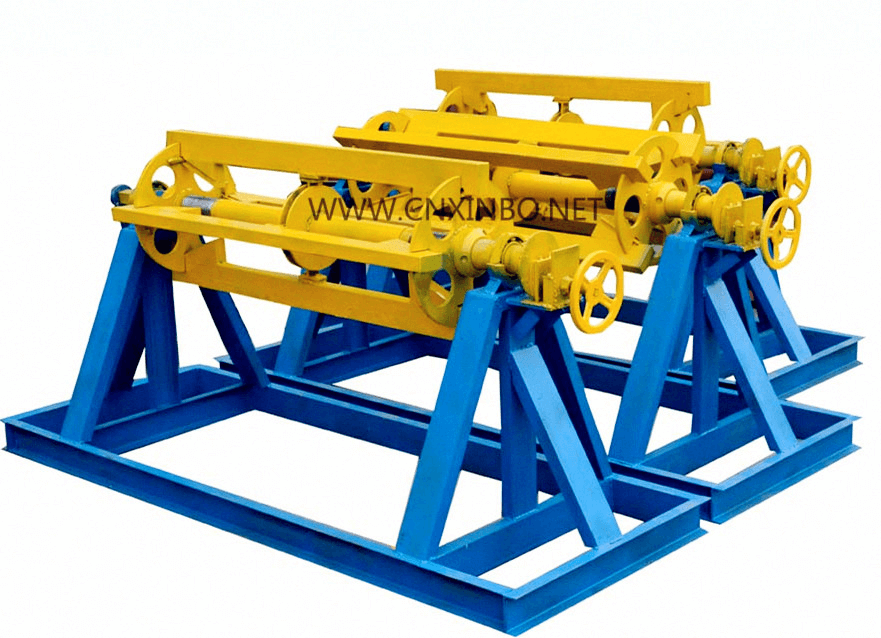

Automatic Uncoiler With moving car

It is used to support the steel coil and uncoil it in a turnable way.
The steel coil is uncoiled by automatic.
Loading capacity:5T
Inner diameter: 450-508mm

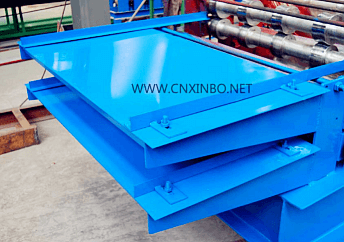

Entry Beach Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.

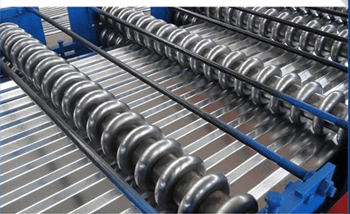

Rollers In order to get high quality product, our machine adopts welded steel frame structure,
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm.

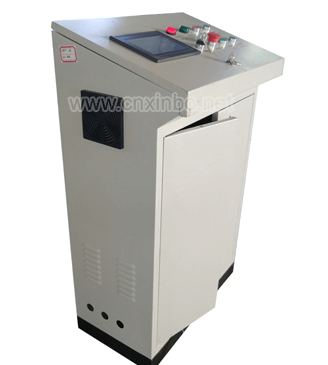

Computer Control Cabinet It adopts PLC to control. The target piece`s length is adjustable
and digit of it can be adjusted.
Computed mode has two modes: automatic and manual one.
The system is easy to operate and use

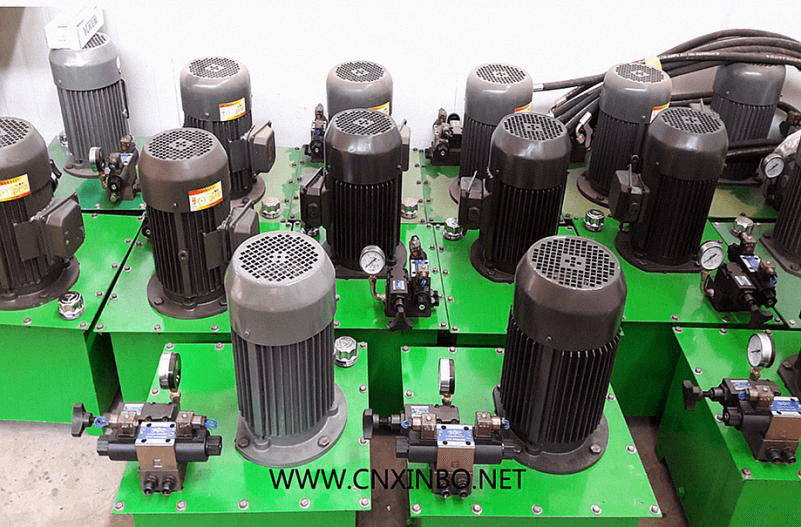

Hydraulic Station It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank,
the pump could drive the hydraulic cylinder to realize the cutting function.The system
includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .
and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#
Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide
the dimension and cut the target products.
Material of blades: Cr12
Components:It contains one set of cutting tools,
one hydraulic tank and one cutter machine.
